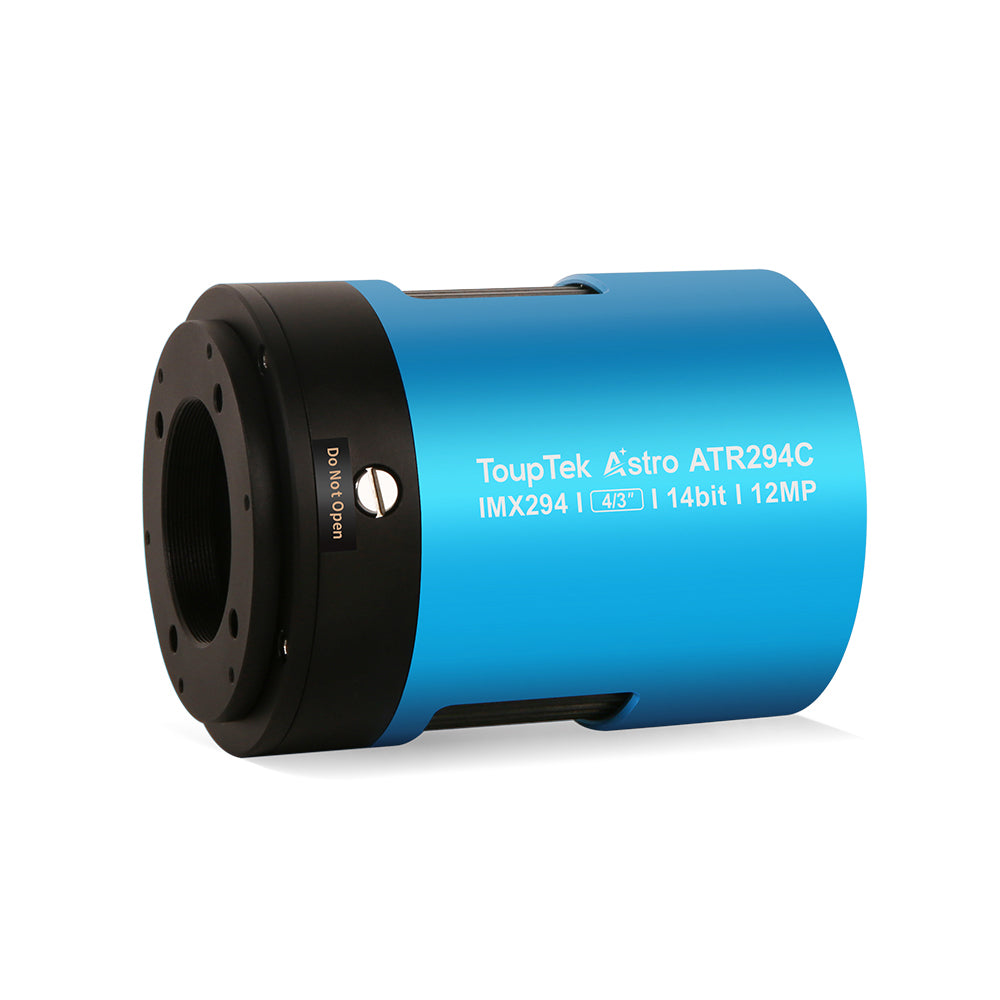

ToupTek ATR294C Deep Sky Cooled Camera – Sony IMX294 Colour

The ToupTek ATR294C is a professional one-shot colour deep sky cooled camera built around the Sony IMX294 sensor — a large-format, high-sensitivity colour sensor popular in the astrophotography community for its outstanding combination of sensitivity, dynamic range, and one-shot colour performance. The ATR294C pairs this proven sensor with ToupTek's advanced dual-stage TEC cooling system.

Who Is This Product Best For?

The ATR294C is ideal for intermediate to advanced astrophotographers who want a large-format one-shot colour camera with excellent sensitivity. It is particularly well-suited for imaging extended nebulae, galaxies, and star-forming regions with natural colour in a single capture.

Why Choose This Product?

• Sony IMX294 Large Format Colour Sensor: Wide dynamic range, high sensitivity, excellent one-shot colour performance for deep sky imaging.
• Dual-Stage TEC Cooling: Up to 45°C below ambient with ±0.1°C precision temperature control.
• Anti-Dew Window Heater: Four-level adjustable heating for reliable all-weather operation.
• 512 MB DDR3 Buffer + USB 3.0 5 Gbps: Stable, high-speed data transfer for long imaging sessions.
• Up to 1-Hour Exposures: Captures faint nebular and galactic detail in extended exposures.
• HCG/LCG/HDR Multi-Mode Support: Flexible gain modes for different target types and sky conditions.

Recommended Uses

• One-shot colour imaging of extended nebulae and galaxies
• Wide-field astrophotography with imaging lenses
• Colour deep sky imaging with duo-narrowband filters for light-polluted skies

Compatibility and Accessory Notes

• Requires external 12V 3A DC power supply or stable 11–14V lithium battery
• Compatible with ToupTek OAG-L, OAG-X, AFW-L filter wheel, and StellaVita controller
• M42 thread connection; adapters may be required for some telescopes
• Compatible with INDI, ASCOM, SharpCap, NINA, and APT

Important Limitations

• External power supply required — not USB-powered
• Colour Bayer sensor — not ideal for pure narrowband imaging without a duo-narrowband filter
• Large sensor format may require larger filters to avoid vignetting

Frequently Asked Questions

How does the ATR294C compare to other colour cameras?
The IMX294 is a large-format, high-sensitivity sensor with wide dynamic range — it excels for colour imaging of extended deep sky objects and is a popular choice among intermediate to advanced astrophotographers.

Can I use it with a narrowband duo filter?
Yes — a duo-narrowband filter (e.g., Hα/OIII) works well with the ATR294C for imaging from light-polluted locations.

Our Recommendation

The ToupTek ATR294C is a strong choice for astrophotographers who want a large-format colour camera with proven IMX294 sensor performance and professional TEC cooling. It delivers excellent one-shot colour results for extended deep sky targets and is a capable all-rounder for the serious imager.
