SVBONY SV210 M63 360° Camera Angle Adjuster for SV550 80 f/6

Product Overview

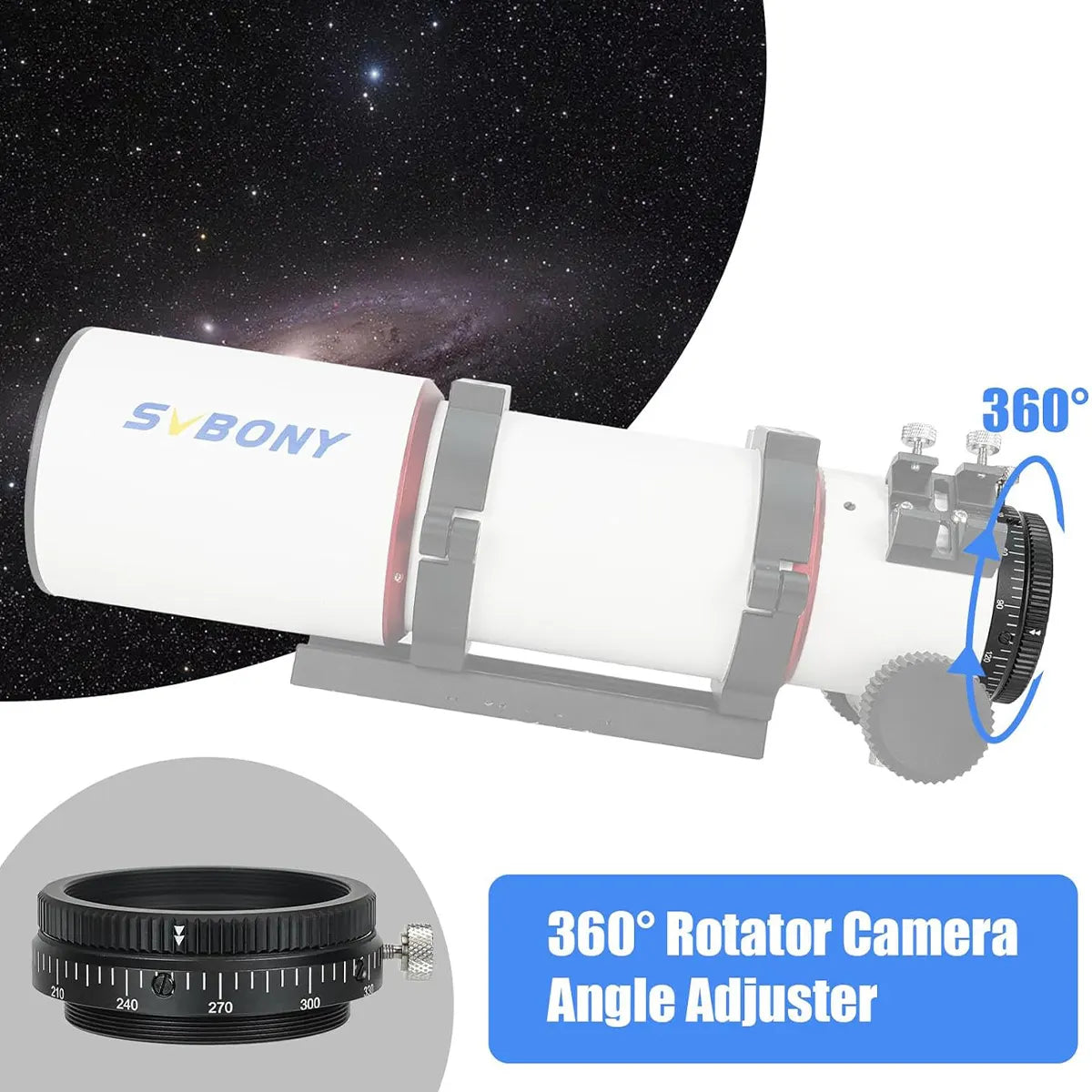

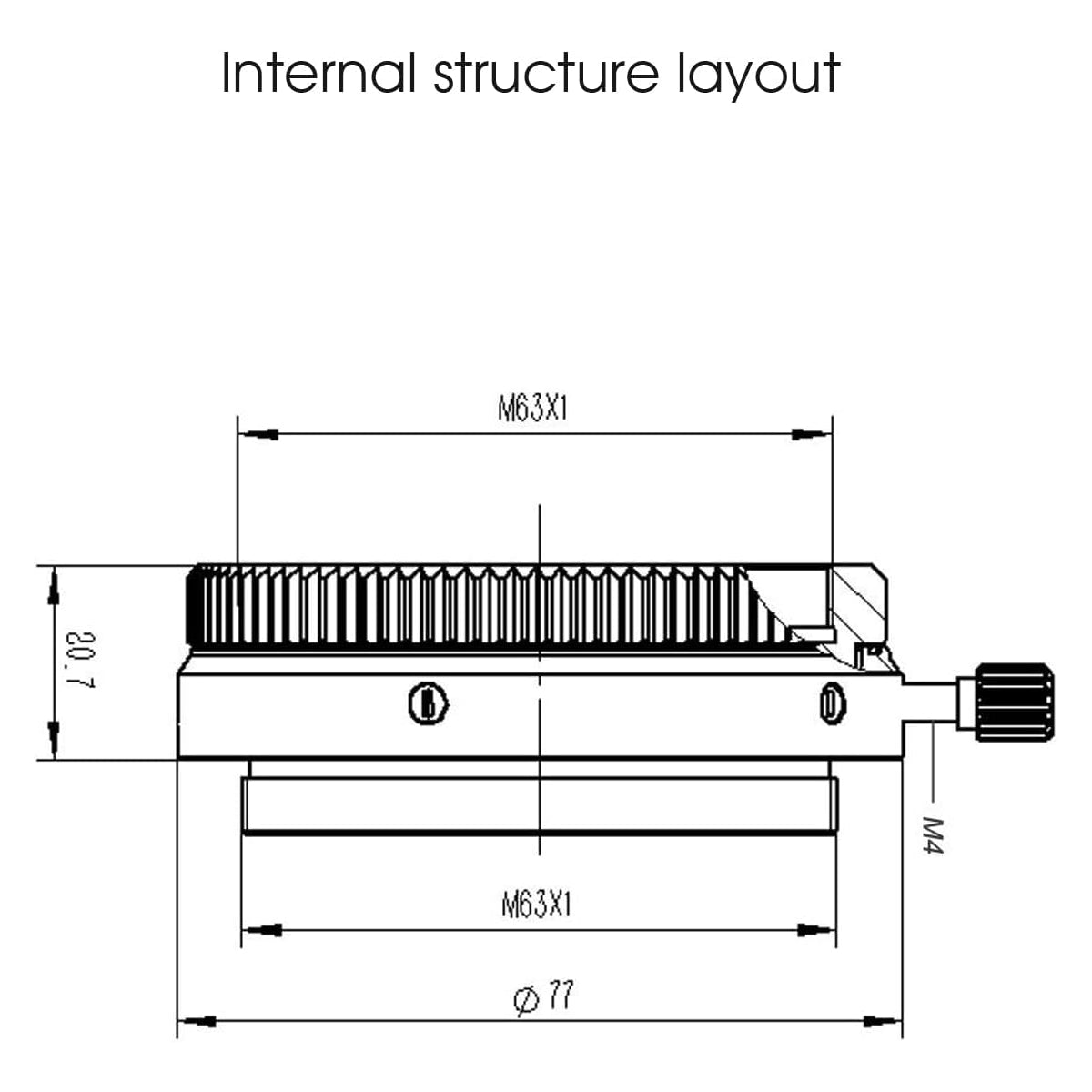

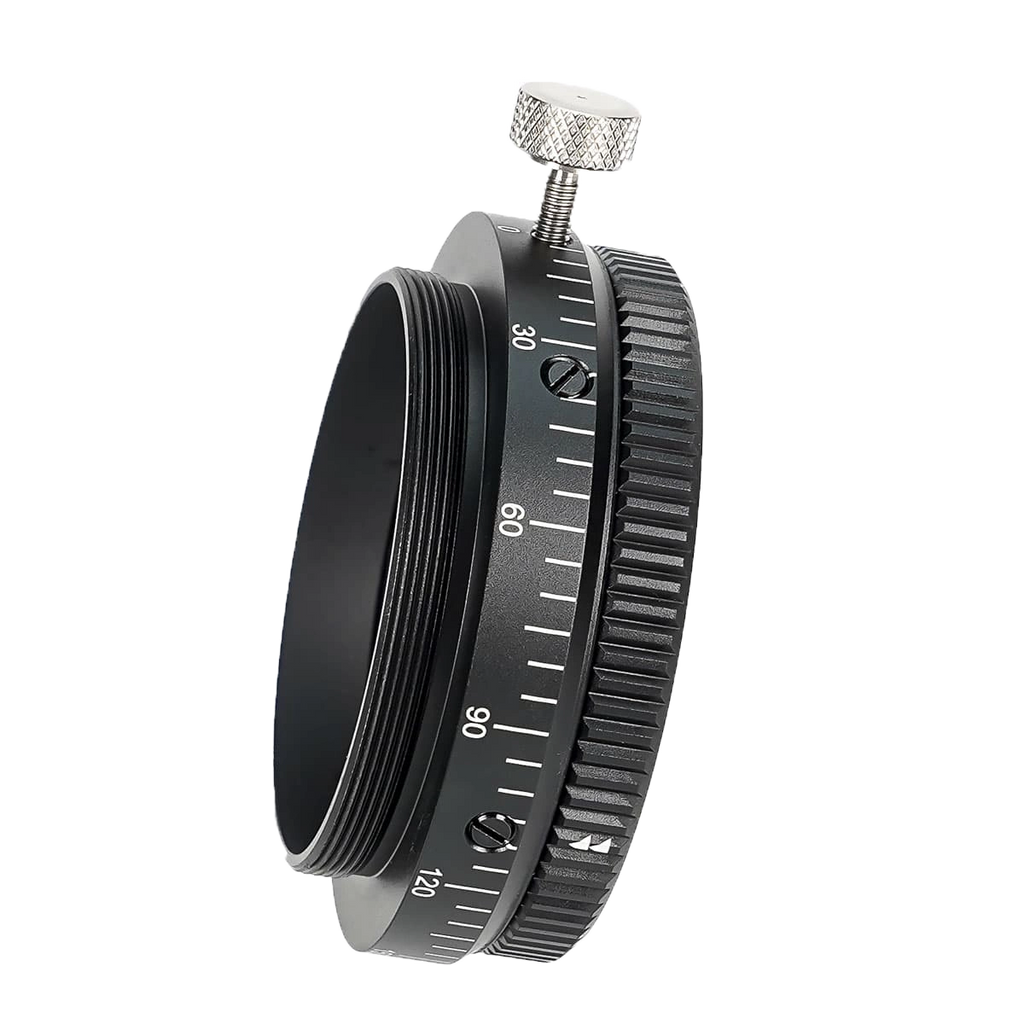

The SVBONY SV210 is a 360° camera angle adjuster (CAA) with M63×1 male and female threads, designed for the SVBONY SV550 80 f/6 refractor. It sits in the imaging train and lets you rotate the camera to any angle to frame a target, then lock it with an M4 screw. It is 20.7 mm thick, machined from 6061 aluminium, and weighs 91.2 g.

Who It's For

This is a good match if you image with an SV550 80 f/6 and want to set the camera's orientation for a composition or a mosaic panel without unthreading the camera or disturbing focus.

Key Features & Design

• Full 360° rotation: turn the camera to any position angle.

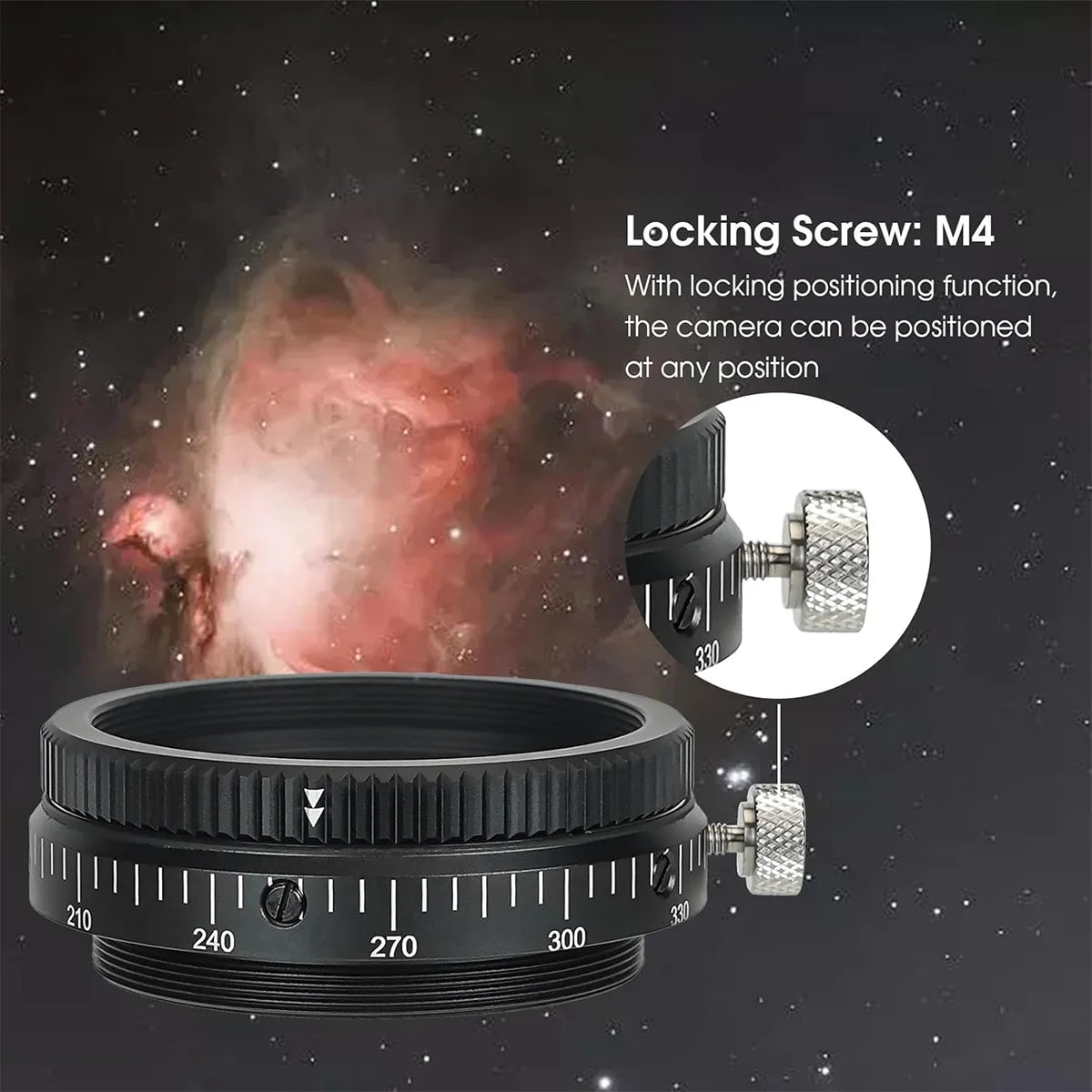

• M4 locking screw: holds the chosen angle.

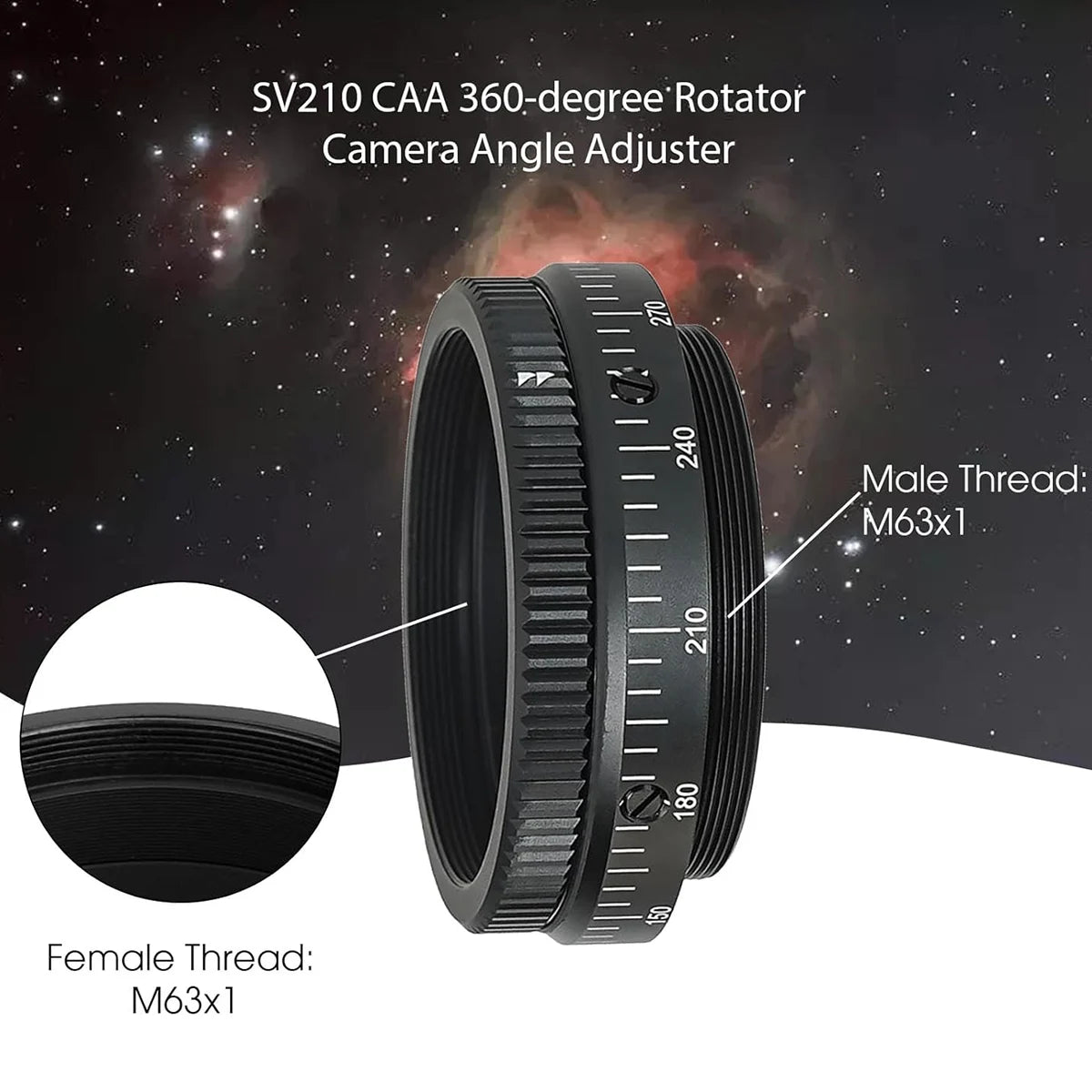

• M63×1 male and female threads: 8 mm male thread length, 9 mm female thread length.
• 20.7 mm extension thickness to include in your spacing.

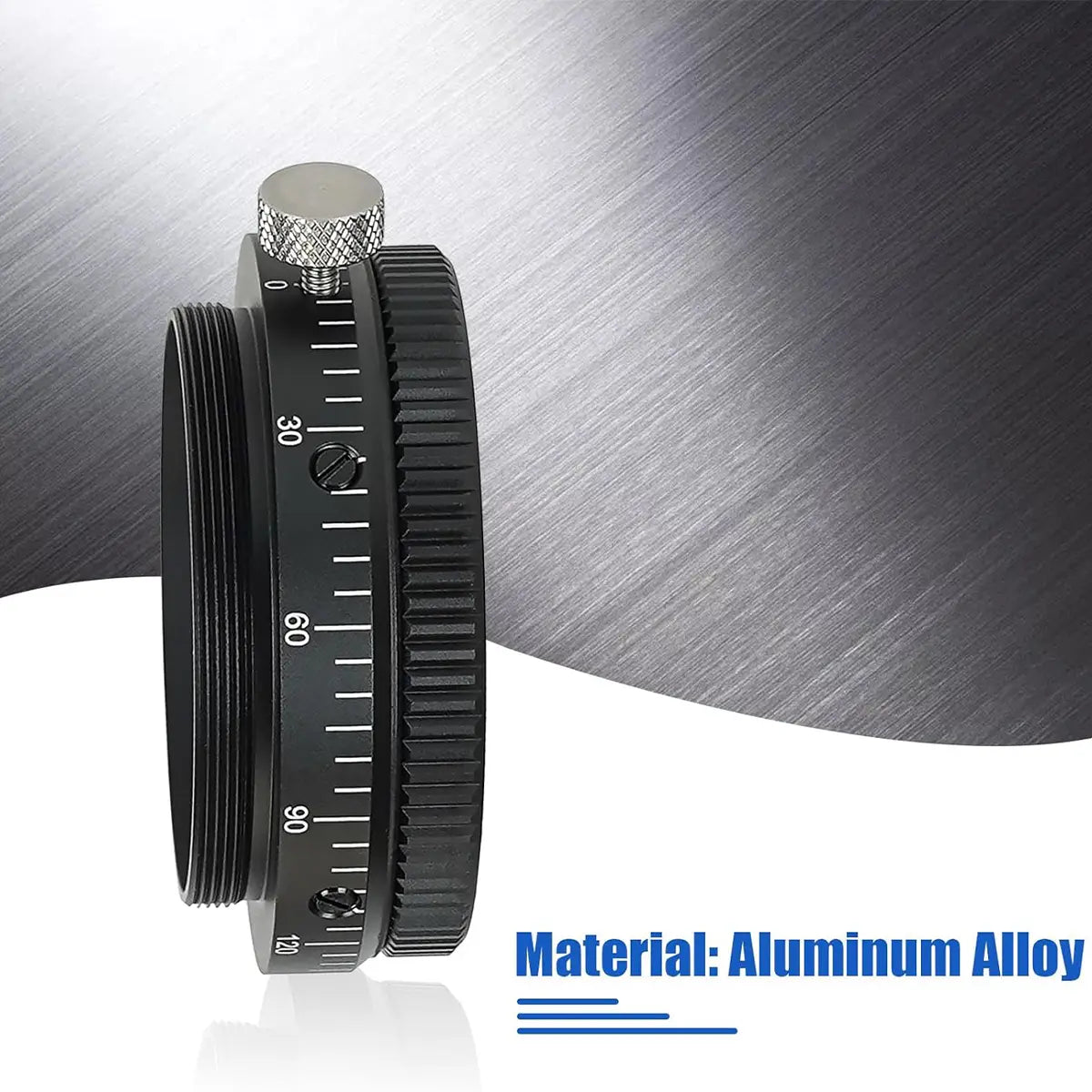

• 6061 aluminium body, black finish.

Recommended Uses

• Framing deep-sky targets on the SV550 80 f/6.
• Matching orientation between sessions or across mosaic panels.
• Wide-field astrophotography, the use SVBONY lists for it.

Compatibility and Accessory Notes

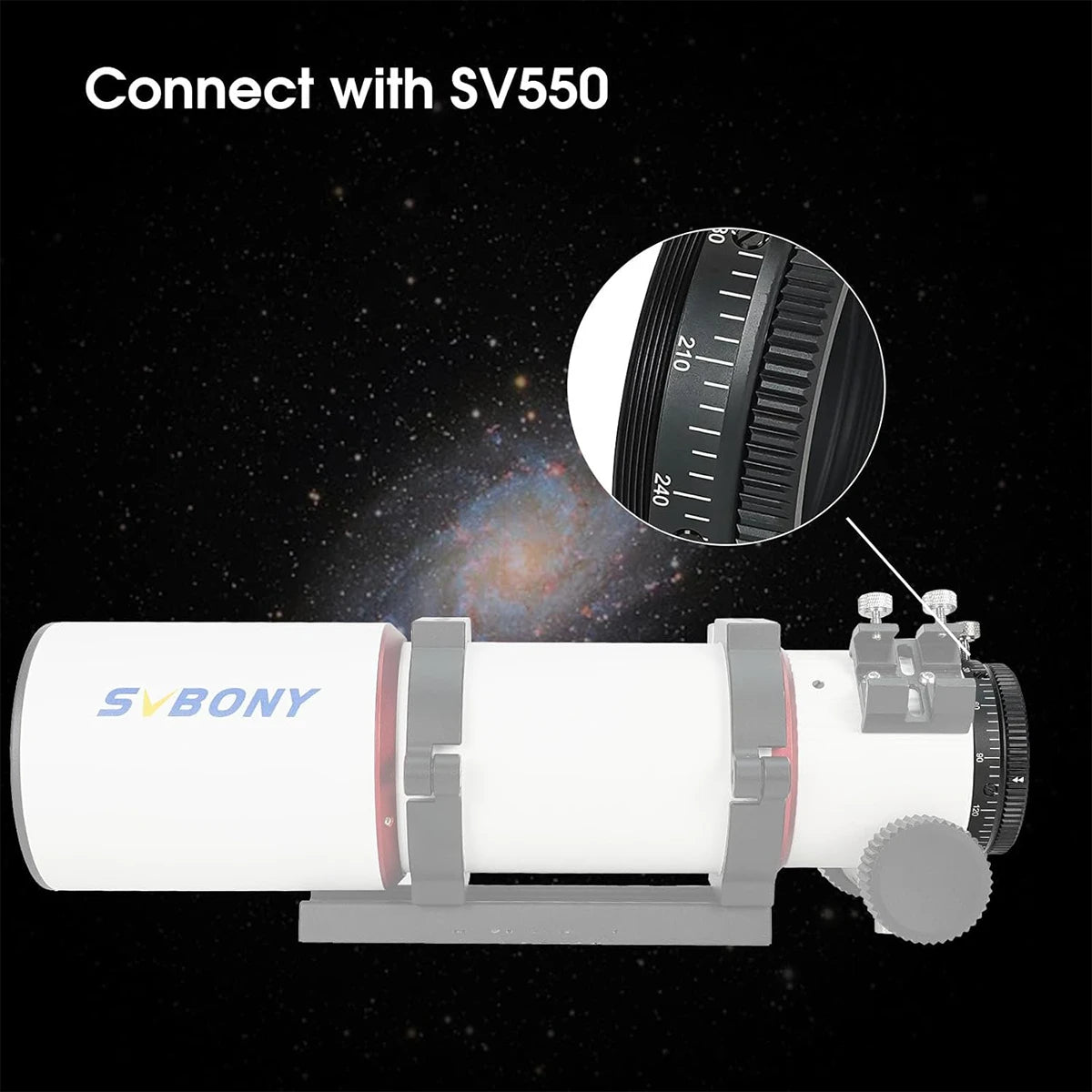

• Designed for: the SVBONY SV550 80 f/6.
• Field flattener: SVBONY pairs it with the SV209 1.0x field flattener for the SV550 80 f/6, which has a connection for the SV210, and offers the two together as a kit on its own site.
• Thread: M63×1, so it fits trains built on that thread; the 20.7 mm thickness counts towards the spacing between flattener and camera.

If you are building a train around the SV209 and a specific camera, send us the parts list and we will work out the spacing with you.

Good to Know Before You Order

• M63×1 interface: it is specific to M63 trains such as the SV550 80 f/6; it does not thread directly onto M48 or M42 parts.
• Spacing: its 20.7 mm thickness is part of the backfocus once installed.
• Imaging accessory: it has no application in a visual train.

Frequently Asked Questions

Is it difficult to set up?

No. It threads into the M63 train, you loosen the M4 screw, rotate the camera to the angle you want and tighten it again.

Does it work with the SV209 flattener?

Yes. SVBONY designed the SV209 1.0x field flattener for the SV550 80 f/6 with a connection for the SV210.

How thick is it?

20.7 mm.

Bottom Line

In short: a 20.7 mm, M63×1 360° camera angle adjuster with an M4 lock, for setting camera orientation on the SVBONY SV550 80 f/6 imaging train.
