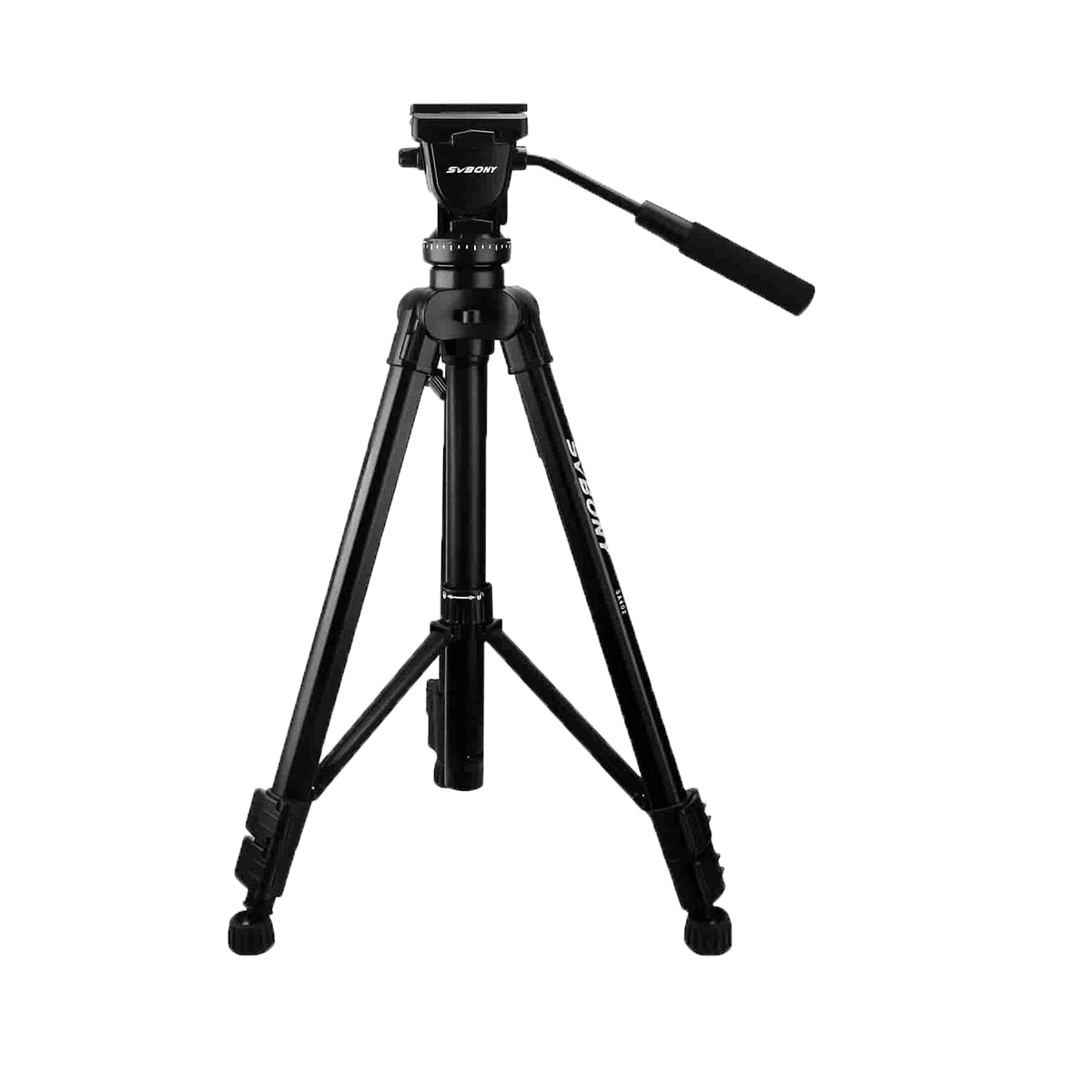

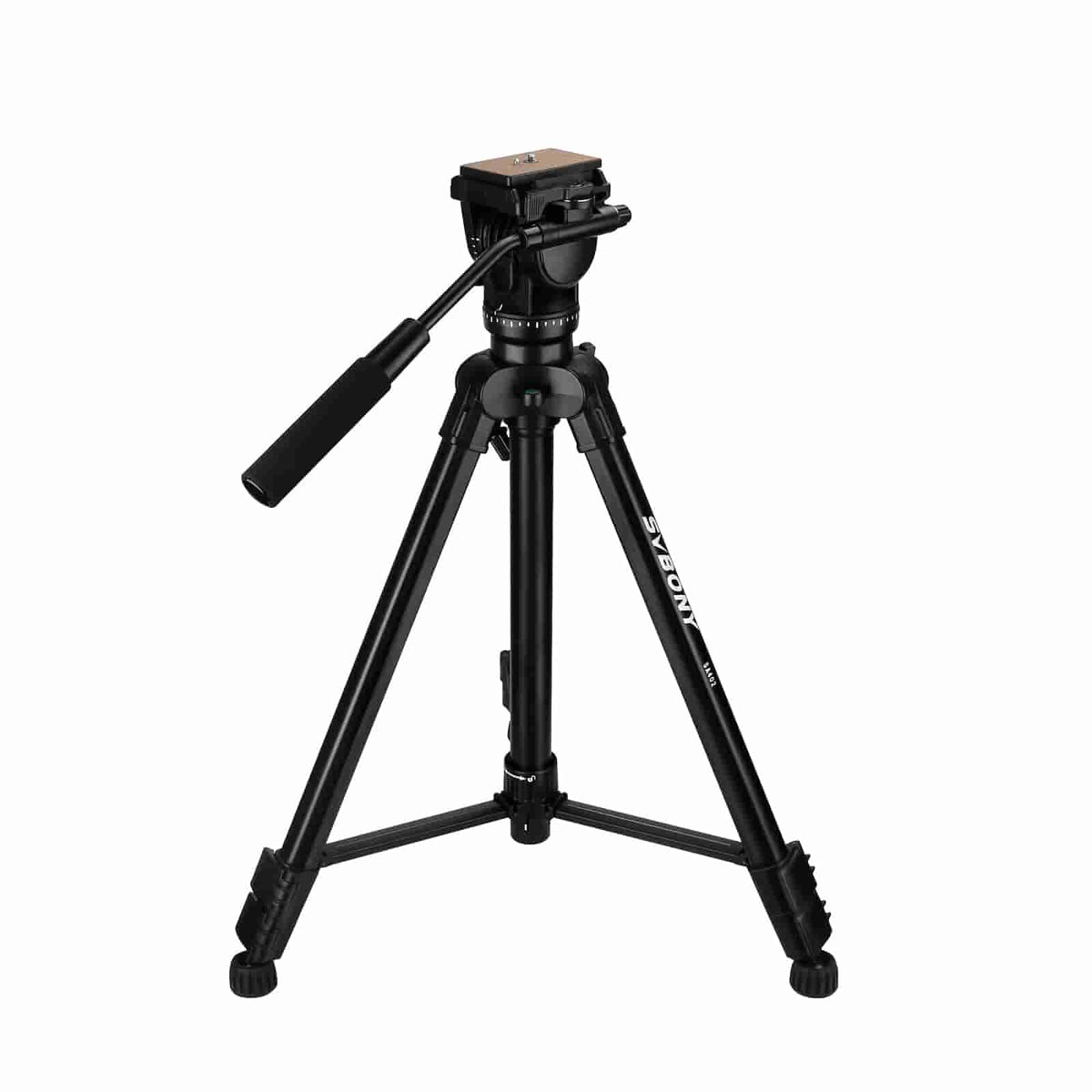

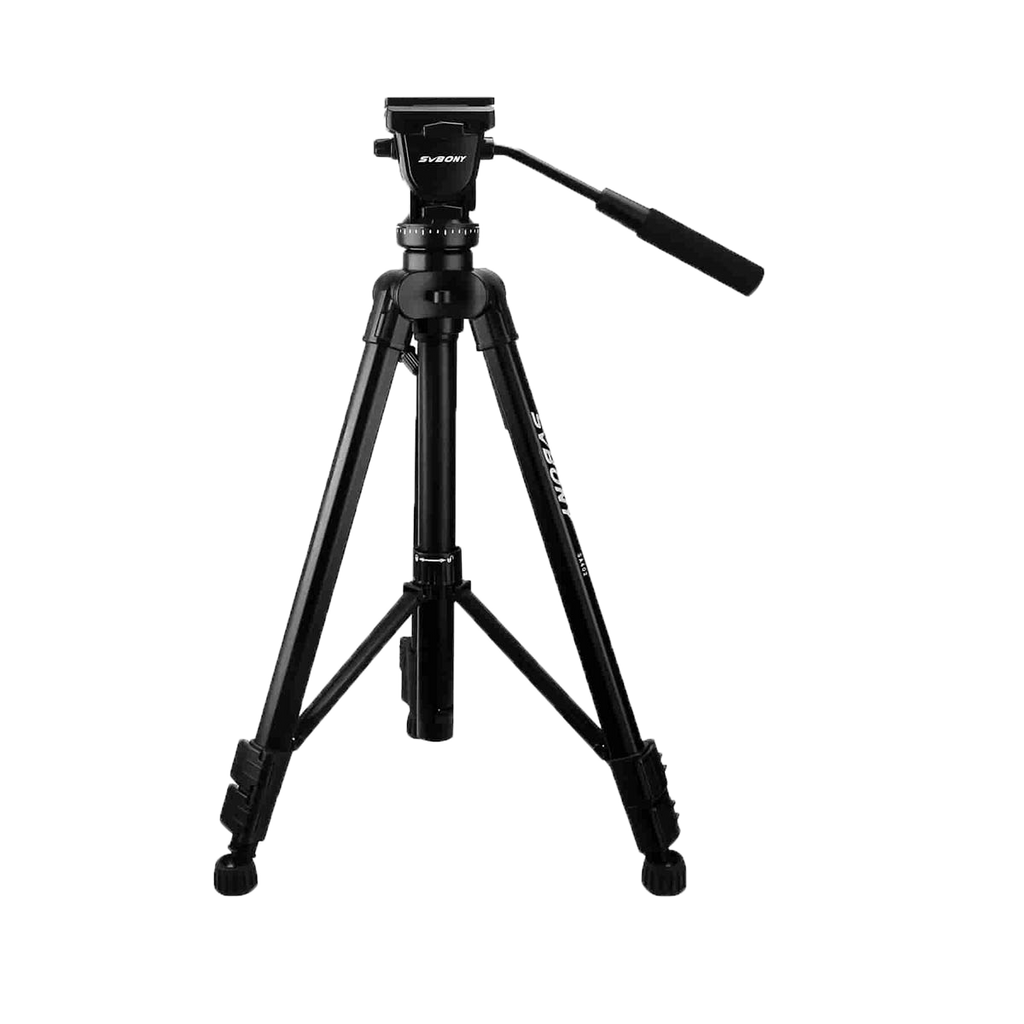

SVBONY SA402 Hydraulic Gimbal Aluminium Travel Tripod

Product Overview

The SVBONY SA402 is an aluminium-alloy travel tripod with a hydraulic pan-and-tilt head, made for spotting scopes, small telescopes and cameras. It extends to 164 cm (64.56″), folds to 70 cm (27.56″), carries up to 6 kg (13.2 lb), and weighs 2200 g (4.85 lb). Equipment attaches through a standard 1/4″ UNC screw on a quick-release plate.

Who It's For

This is a good match if you use a spotting scope for birding or wildlife, carry a compact telescope for casual observing, or want a single tripod that also handles a camera. The hydraulic head gives the smooth panning that spotting-scope and video work benefit from, and the folded length suits travel.

Key Features & Design

• Hydraulic head: damped pan and tilt movement with a control handle for smooth tracking of moving subjects.
• 30 mm leg tubes: the widest leg section is 30 mm, paired with rubber feet for grip on uneven ground.
• Three-section flip-lock legs: quick to extend and fold.
• Built-in spirit level: one bubble level for setting the head level.
• Quick-release plate: standard 1/4″ UNC screw for fast attachment and removal.
• Aluminium alloy and ABS construction: 2200 g (4.85 lb) net.

Mechanical Design

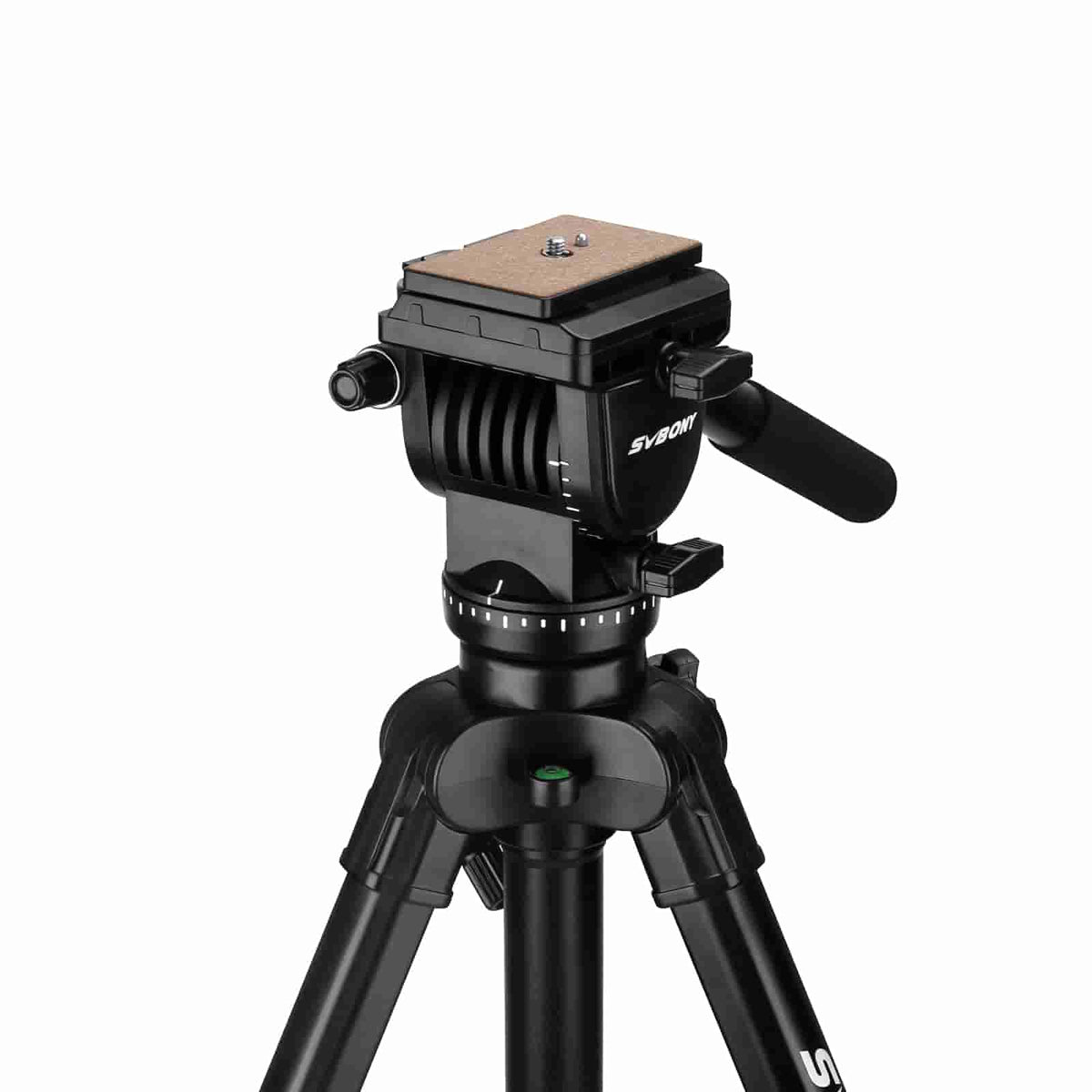

The head uses a hydraulic damping mechanism, so pan and tilt motion stays smooth rather than jerky as you follow a bird in flight or reframe a view. The handle controls both axes, and the bubble level makes it quick to set the head level before you start. With a 6 kg (13.2 lb) rated load, it carries typical spotting scopes, small refractors and DSLR/mirrorless cameras.

Recommended Uses

• Spotting scopes: birding, wildlife and digiscoping, where smooth panning matters.
• Small telescopes: casual lunar and planetary viewing with a compact scope that has a 1/4″ mount point.
• Cameras: photo and video, including action cameras.
• Travel: 70 cm folded length for packing.

Compatibility and Accessory Notes

• Mounting thread: 1/4″ UNC screw on the quick-release plate, the standard for cameras and most spotting scopes.
• Cameras: SVBONY lists entry-level Nikon and Canon DSLR/SLR cameras and action cameras.
• Load: up to 6 kg (13.2 lb).

Good to Know Before You Order

• Photo-style head: it is a pan-tilt tripod rather than an astronomical mount, so it has no tracking and no slow-motion controls.
• Dovetail telescopes: a telescope that uses a Vixen-style dovetail needs an adapter with a 1/4″ thread to attach.
• Package size: 715 × 130 × 130 mm.

Frequently Asked Questions

Is it difficult to set up?

No. Open the flip locks, extend the legs, level the head with the bubble level, and clip your scope or camera on with the quick-release plate.

How tall does it go?

Up to 164 cm (64.56″), folding down to 70 cm (27.56″).

How much can it carry?

SVBONY rates it for 6 kg (13.2 lb).

Can I use it for astrophotography?

It suits fixed-tripod wide-field shots with a camera. Long exposures of deep-sky objects need a tracking mount.

Bottom Line

In short: a 2200 g aluminium travel tripod with a hydraulic pan-tilt head, 164 cm reach and a 6 kg rating, for spotting scopes, compact telescopes and cameras on a standard 1/4″ plate.
