SVBONY Medium Dovetail Clamp with Brass Screw

Product Overview

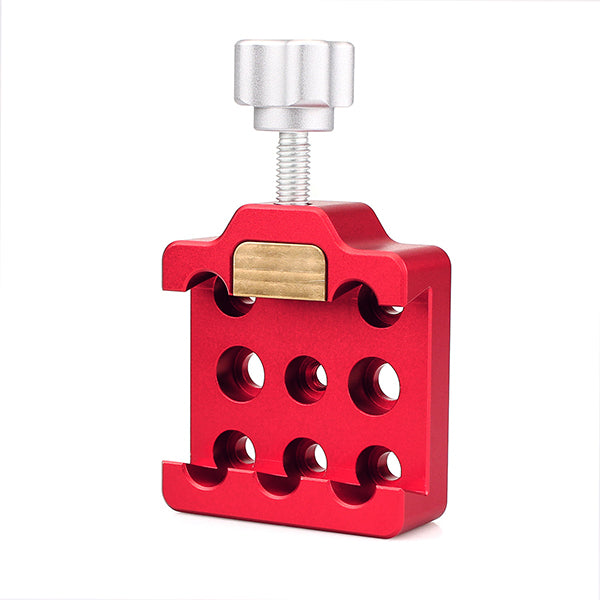

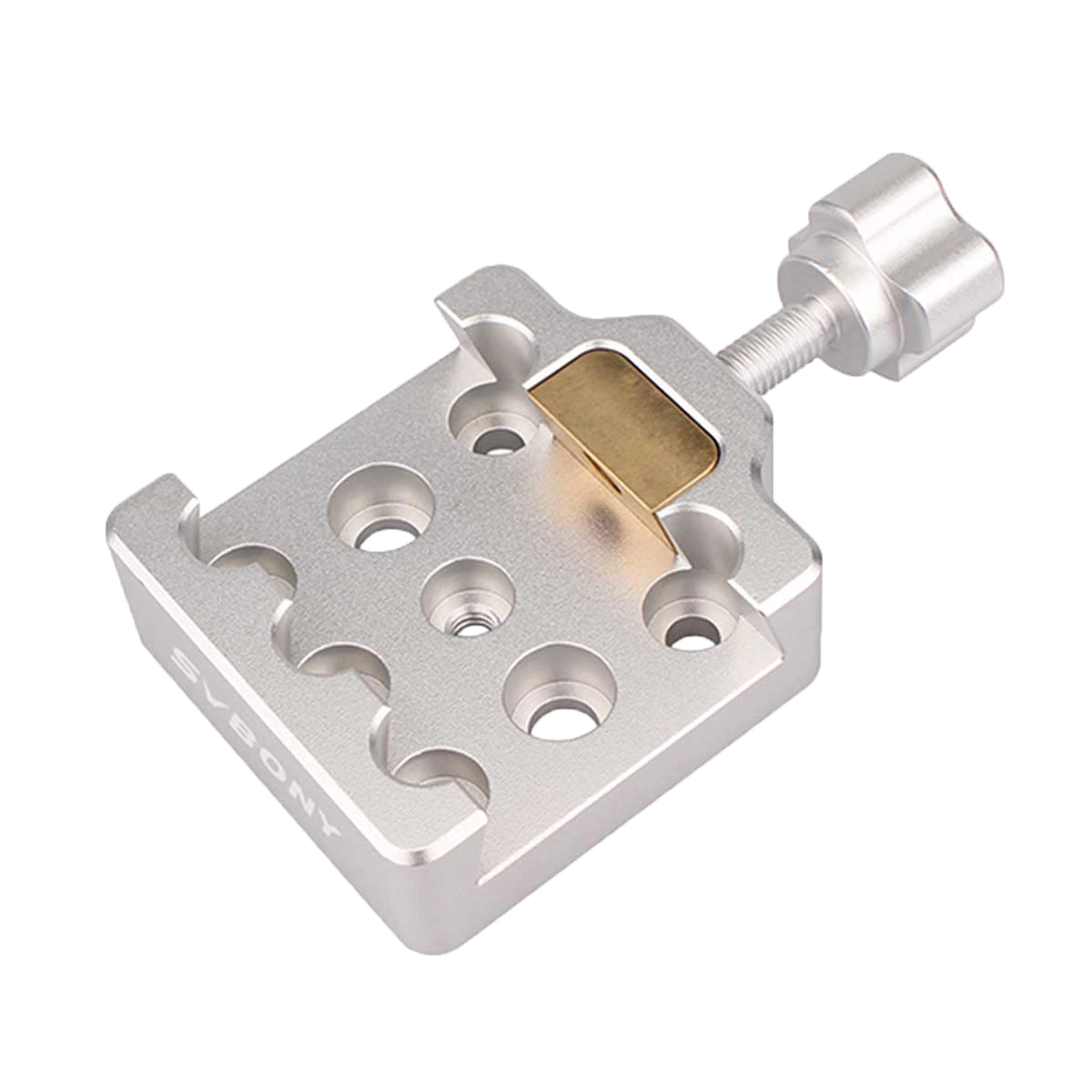

The SVBONY medium dovetail clamp (F9144C/D) is an aluminium-alloy clamp that holds a dovetail plate and connects a telescope or camera to a tripod or mount. It is rated for loads up to 10 kg and locks with a brass-tipped screw that grips the plate without marring it. The underside has eight mounting holes: five M6, one 1/4″ and two M8, with the two M8 holes 35 mm apart. The clamp's dovetail opening is 39.5 mm at the top, 45 mm at the bottom and 12 mm deep. It weighs 193 g (6.83 oz) and comes in red or silver.

Who It's For

This is a good match if you want to add a dovetail clamp to a tripod head, pier, mount or bracket so that a telescope or camera on a matching dovetail plate can be attached and removed quickly.

Key Features & Design

• 10 kg load rating: all-aluminium body built to resist twisting.

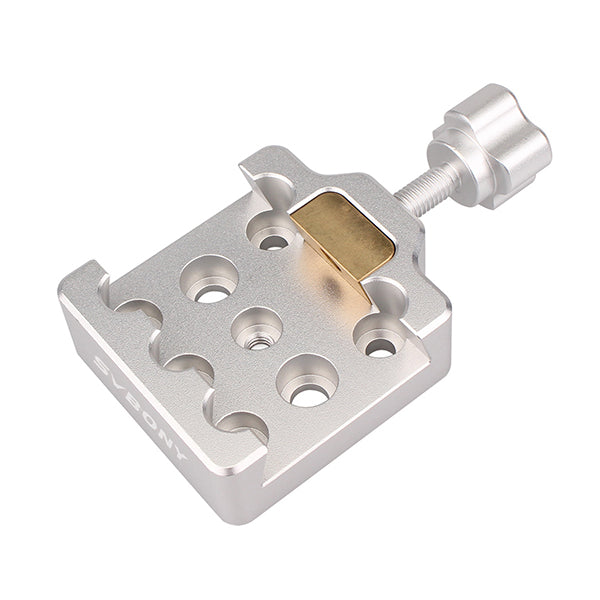

• Brass locking screw: holds the plate firmly and protects its surface.
• Eight mounting holes: 5 x M6, 1 x 1/4″ and 2 x M8 (35 mm spacing) for a range of mounts and brackets.
• Two colours: red or silver, each matching SVBONY's dovetail plate in the same colour.

Recommended Uses

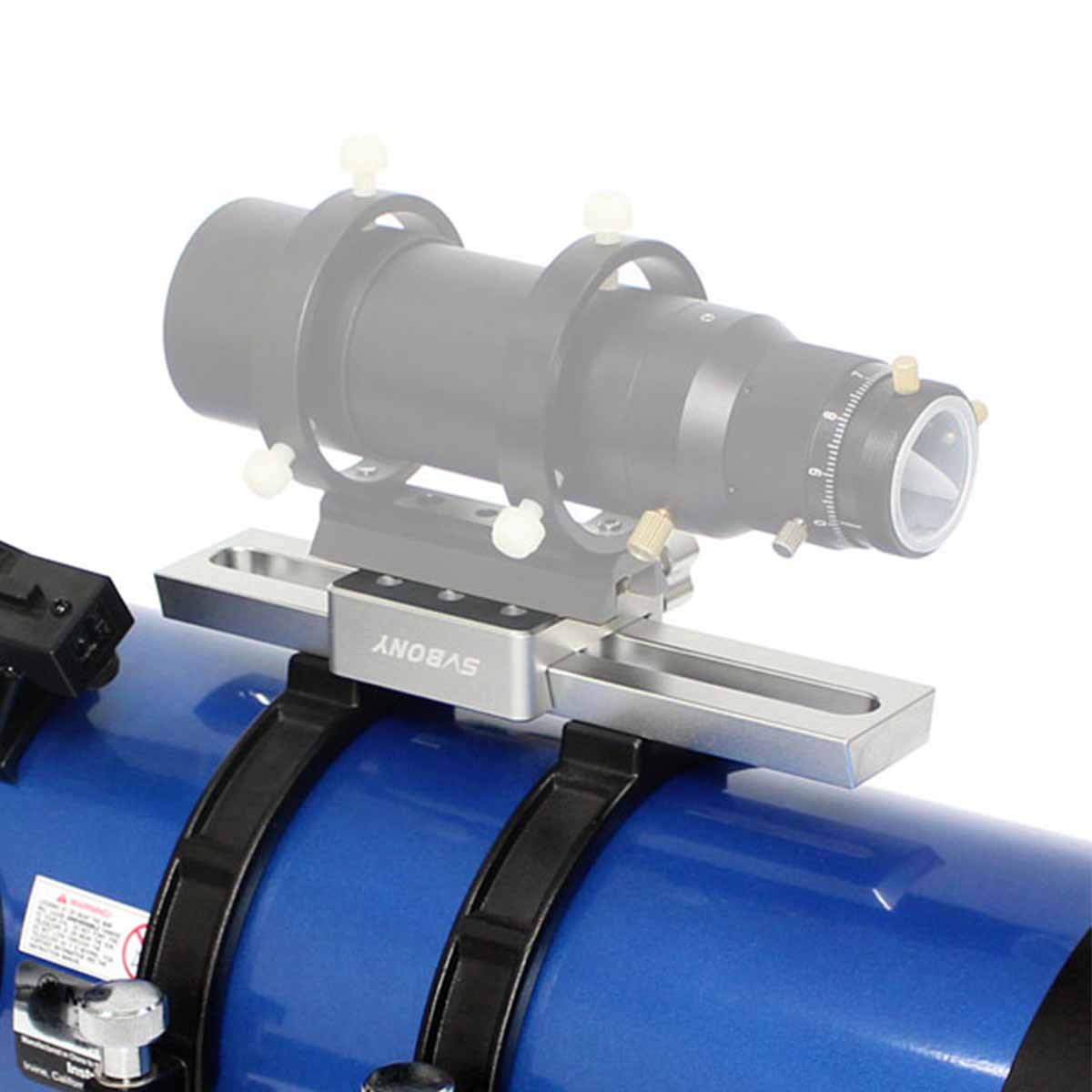

• Mounting a telescope or camera on a tripod via a dovetail plate.
• Building custom brackets and side-by-side rigs using the M6, M8 and 1/4″ holes.
• Astrophotography setups where a secure, quick-release connection matters.

Compatibility and Accessory Notes

• Matching plate: SVBONY names its F9143 dovetail plate (sold separately) as compatible.
• Dovetail opening: 39.5 mm top, 45 mm bottom, 12 mm depth.
• Mounting threads: M6, M8 and 1/4″.

If you want to check the clamp against a plate or mount you already own, send us the model and we will compare the dimensions with you.

Good to Know Before You Order

• Dovetail plate sold separately.
• Load rating: 10 kg, as published by SVBONY.
• Package contents: SVBONY does not publish a contents list.

Frequently Asked Questions

Is it difficult to set up?

No. Bolt the clamp to your tripod or mount through one of its threaded holes, slide in the dovetail plate and tighten the brass screw.

What can I attach it to?

Anything with an M6, M8 or 1/4″ bolt in a suitable position, including many tripod heads, brackets and mount saddles.

Is there a difference between the colours?

Only the finish; the red and silver versions share the same specifications.

Bottom Line

In short: a 193 g aluminium dovetail clamp rated to 10 kg, with a brass locking screw and M6, M8 and 1/4″ mounting holes, in red or silver.
