M-ZERO HQ Bluetooth

Portable Astronomy

The new M-Zero has been designed to revolutionize the world of portable astronomy. The unique and innovative design, the lightweight and the small dimensions, the greater versatility, and higher quality make it the perfect tool for traveling astronomy.

Several mounts in one

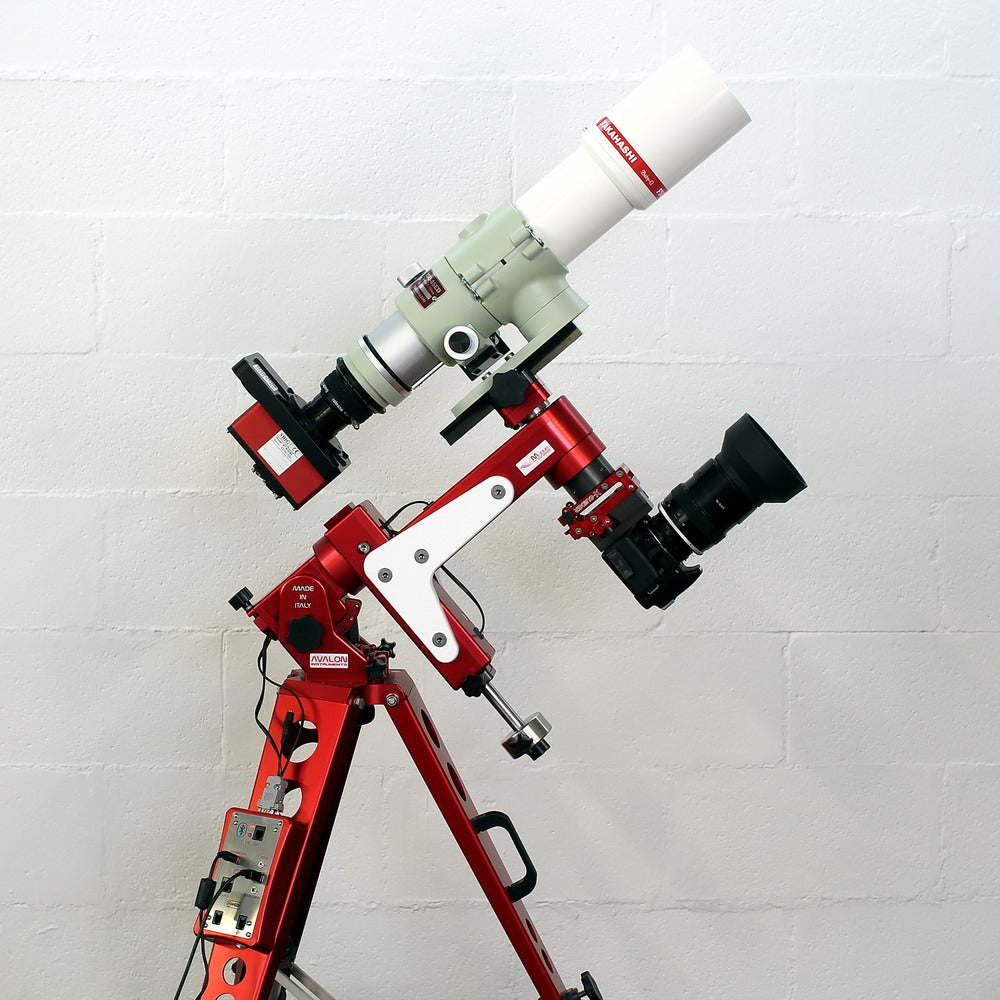

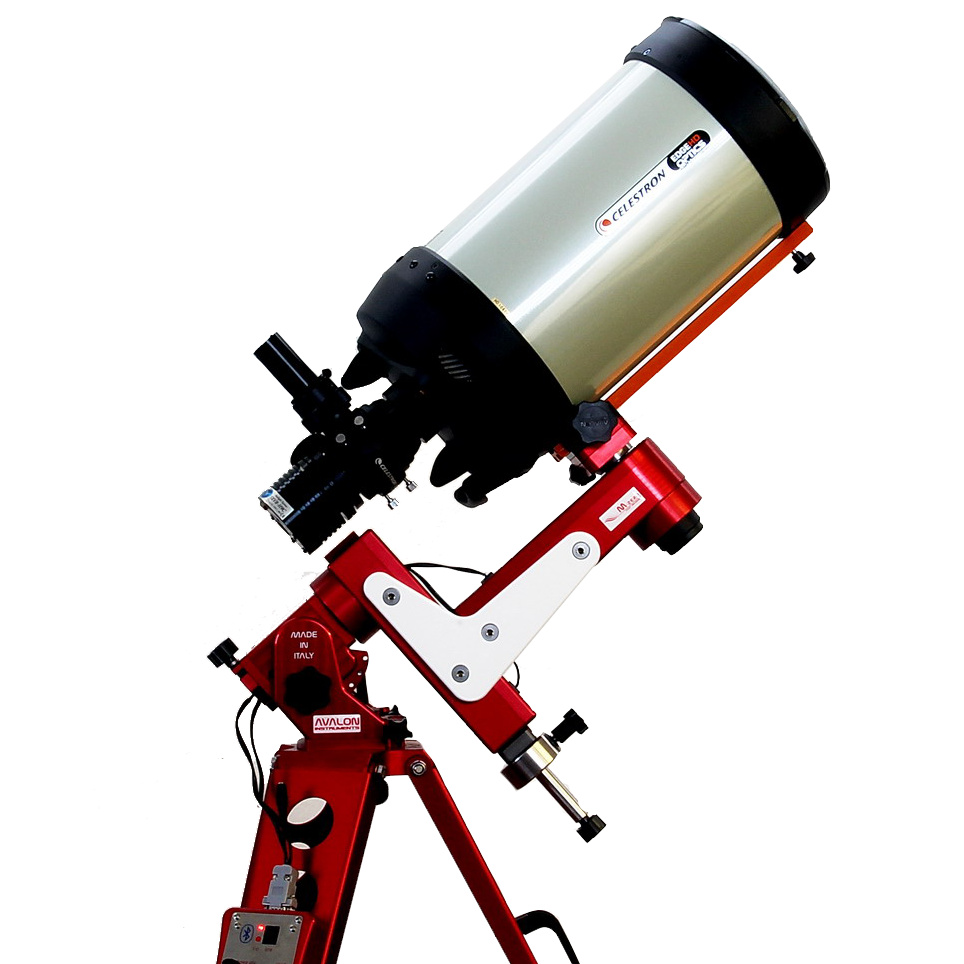

The M-zero is more than one mount: a Standard Equatorial when used with longer optics, a Single Arm with the great benefit of non requiring meridian flip using compact optics, an Alt-azimuthal mount for visual astronomy, and, finally, an excellent time-lapse platform for panoramic photography and video shooting.

HQ motors

More resolute and accurate tracking accuracy with the 400 step HQ (Hig Quality) motors assembled on both RA/DEC axis.

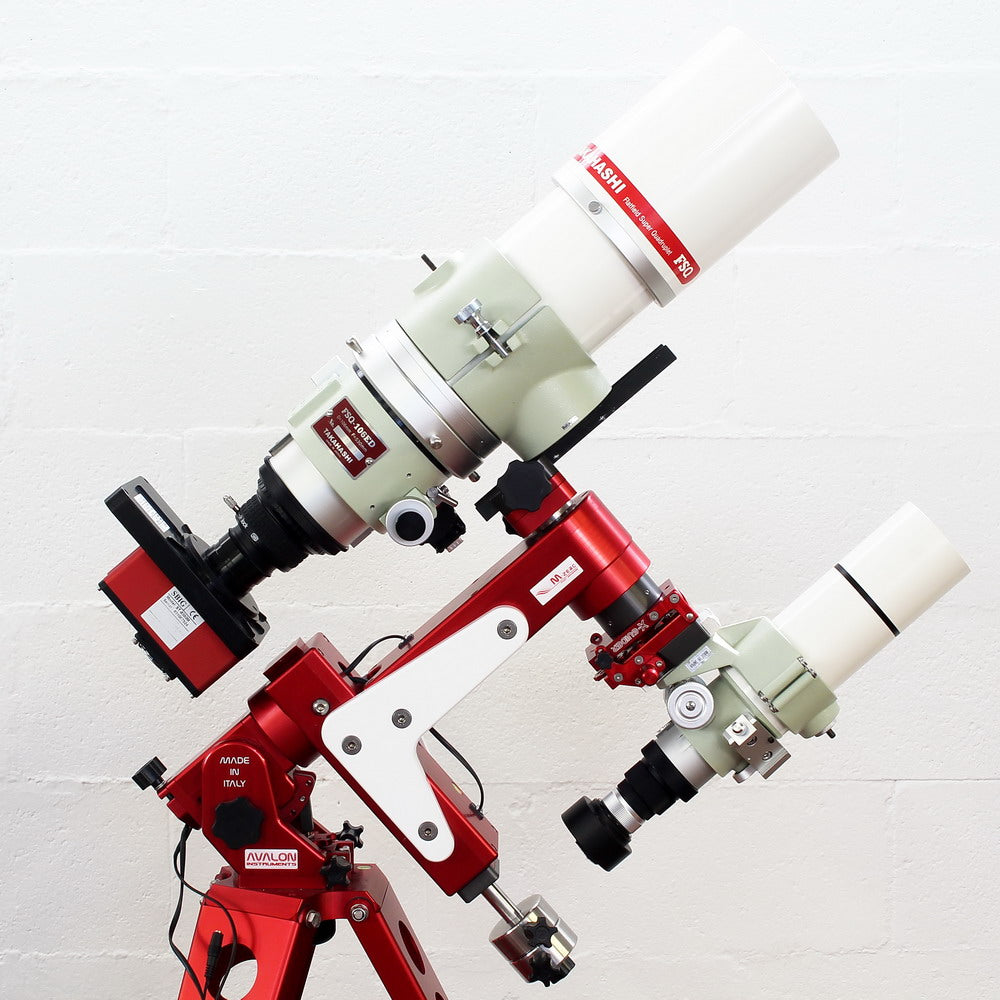

Double Telescope Setup

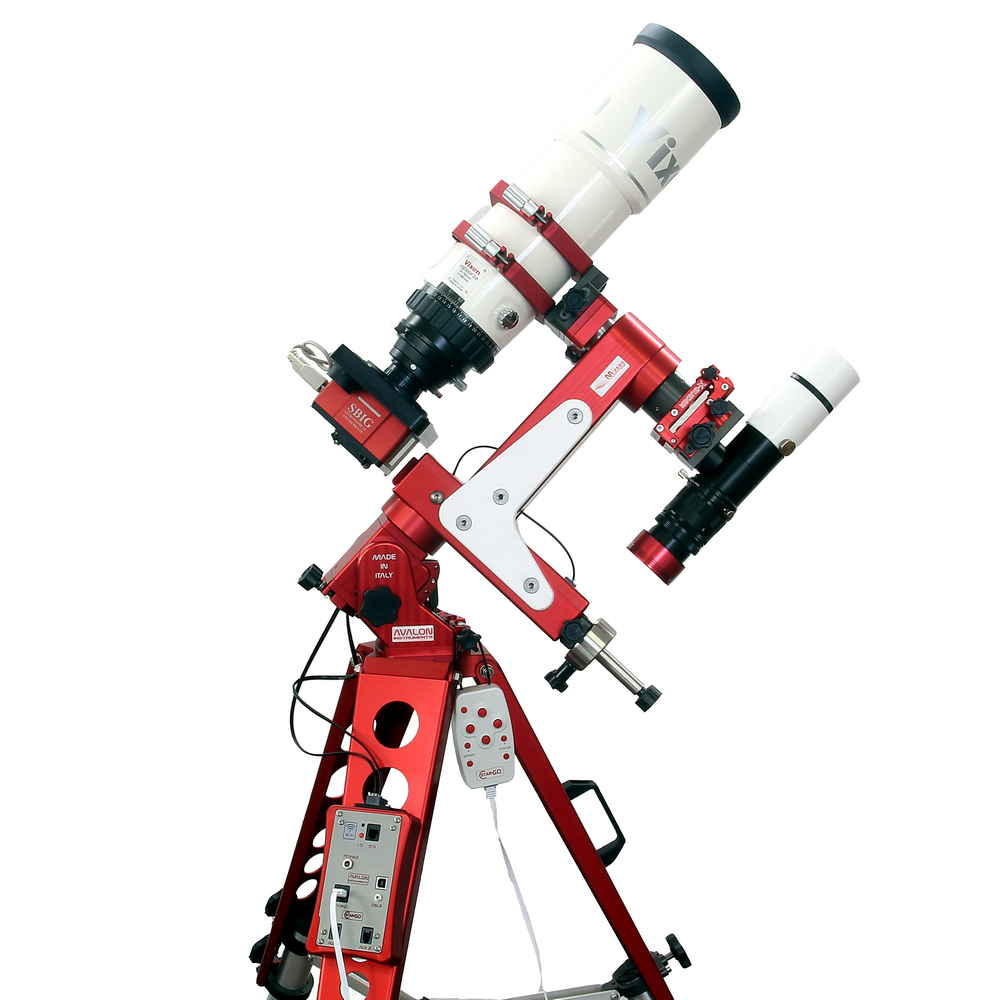

Thanks to the new Dual-DEC system, it is possible to install a second telescope in the opposite side of the declination axis. Considering this capability it is possible to use a great range of optics starting from a small (4-5 kg/8.8-11 lb) refractor up to a double set up with a total weight of 12-13 kg/26.4-28.6 lb, obtaining performances so good to get it over the need of a bigger amount.

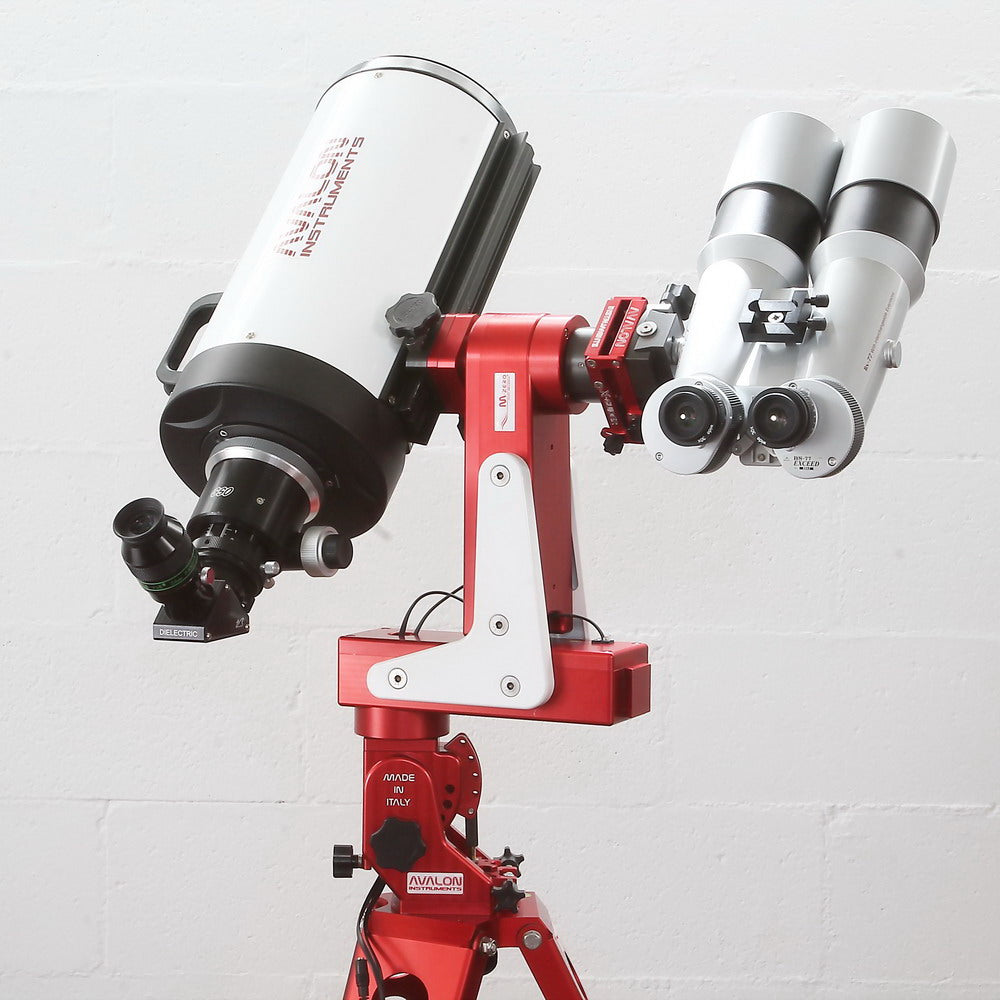

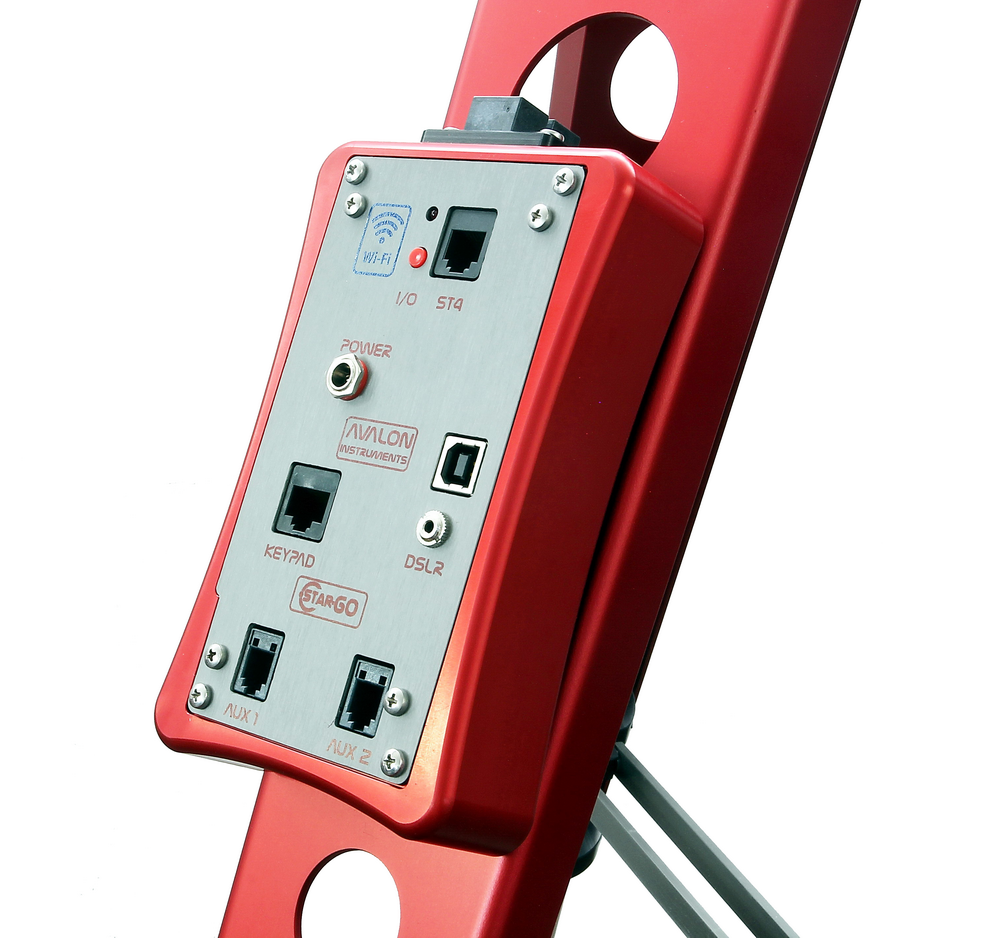

Thanks to StarGO GoToControl System the M-Zero can be controlled by smartphone and tablet via Bluetooth or WiFi connection and can be quickly set in the Alt-azimuthal mode for visual observation with larger telescopes and binoculars or to make panoramic pictures or video sequences with time-lapse features.

Zero Maintenance

The virtually zero maintenance, the long-lasting materials used, and the possibility to easily update the StarGO firmware and software allow the M-zero to be always ready to use, up to date, competitive, and extremely reliable!

Transportability

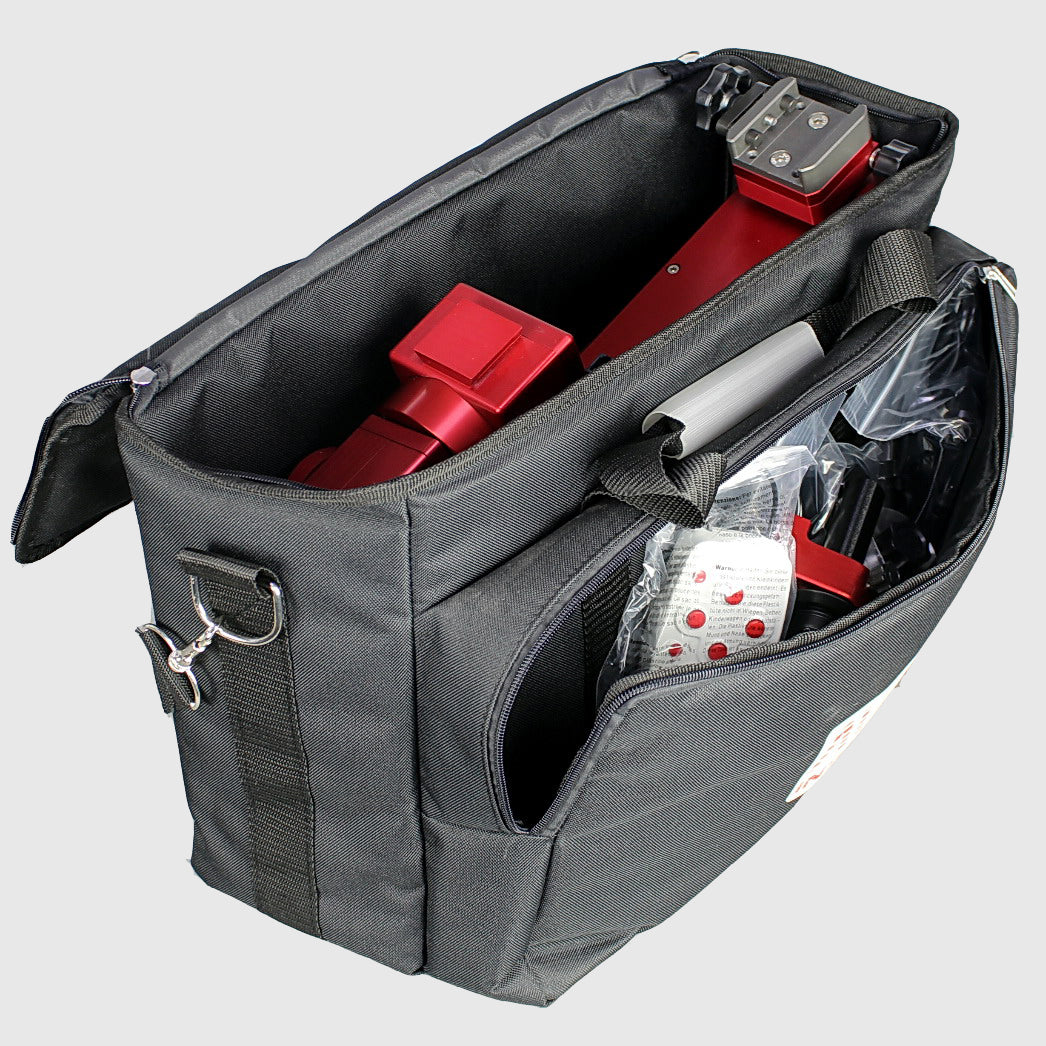

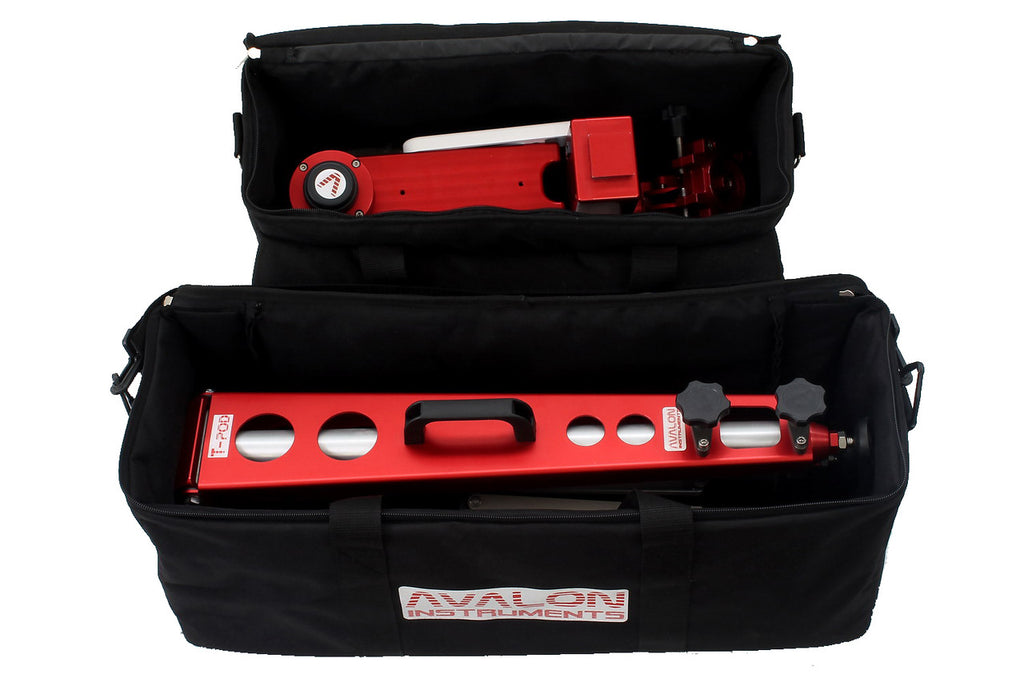

The M-zero can be balanced, in most cases, with less than 1 kg/2.2 lb counterweight due to the possibility of placing the declination arm in different positions relative to the right ascension arm. The M-zero and the T-pod 90, requiring limited room, maybe easily arranged inside a medium-size carry-on case allowing a convenient setup for air traveling Astro-amateurs.

Light and Strong

Made entirely from anodized aluminum, worked using 5 axes CNC machines.
The mount weighs only 6 kg/13.2 lb and, combined with the new T-Pod 90 tripod, reaches a total weight of 12 kg/26.4 lb.

Technology and Innovation

The top-quality manufacturing level, the innovative Fast-Reverse Belt Drive System with zero-backlash, and the new StarGO GoTo control system allow excellent performance in photographic use.

THE POLAR ALIGNMENT can be performed by using the polar scope mounted on the RA body that can be rotated (as shown in the picture below) to the upper position for a comfortable adjustment of the Polar Alignment.

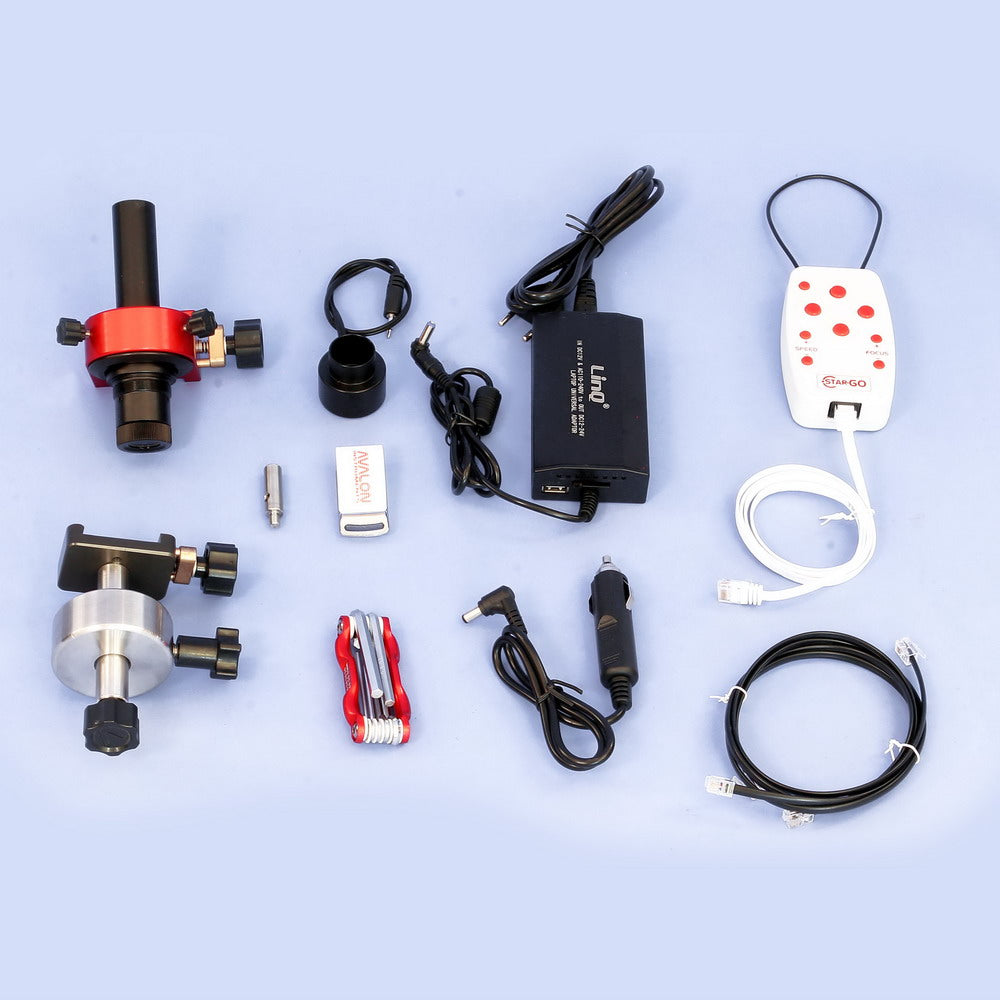

The standard kit for the polar alignment is provided with the following components:

• Polarscope
• Support stand provided of scope fixing knobs and dovetail attack with fixing grip knob.
• Illuminator cap provided of red LED and connection cable to the StarGO.
