HEM27 with High Precision Encoder (HEM27EC)

Roll over image to zoom in Click on image to zoom

HEM27 with High Precision Encoder (HEM27EC)

Name: HEM27 with High Precision Encoder (HEM27EC)
Brand: iOptron
SKU: H274A
Price: 4644.99 CAD
Availability: InStock

iOptronSKU: H274A

Price:

$4,644.99 CAD

Stock:

On Backorder — ships when available

Quantity:

Share this product

Description

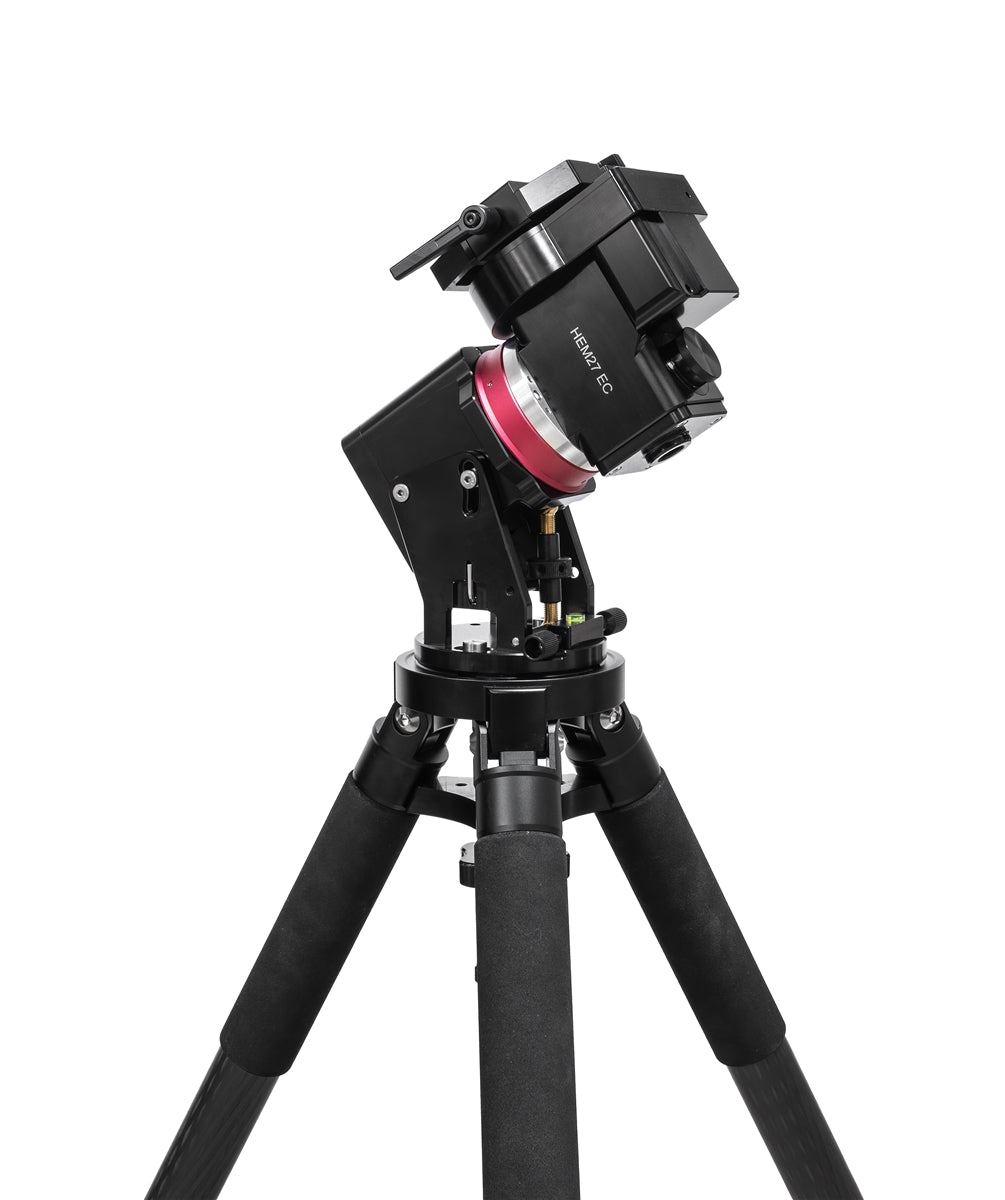

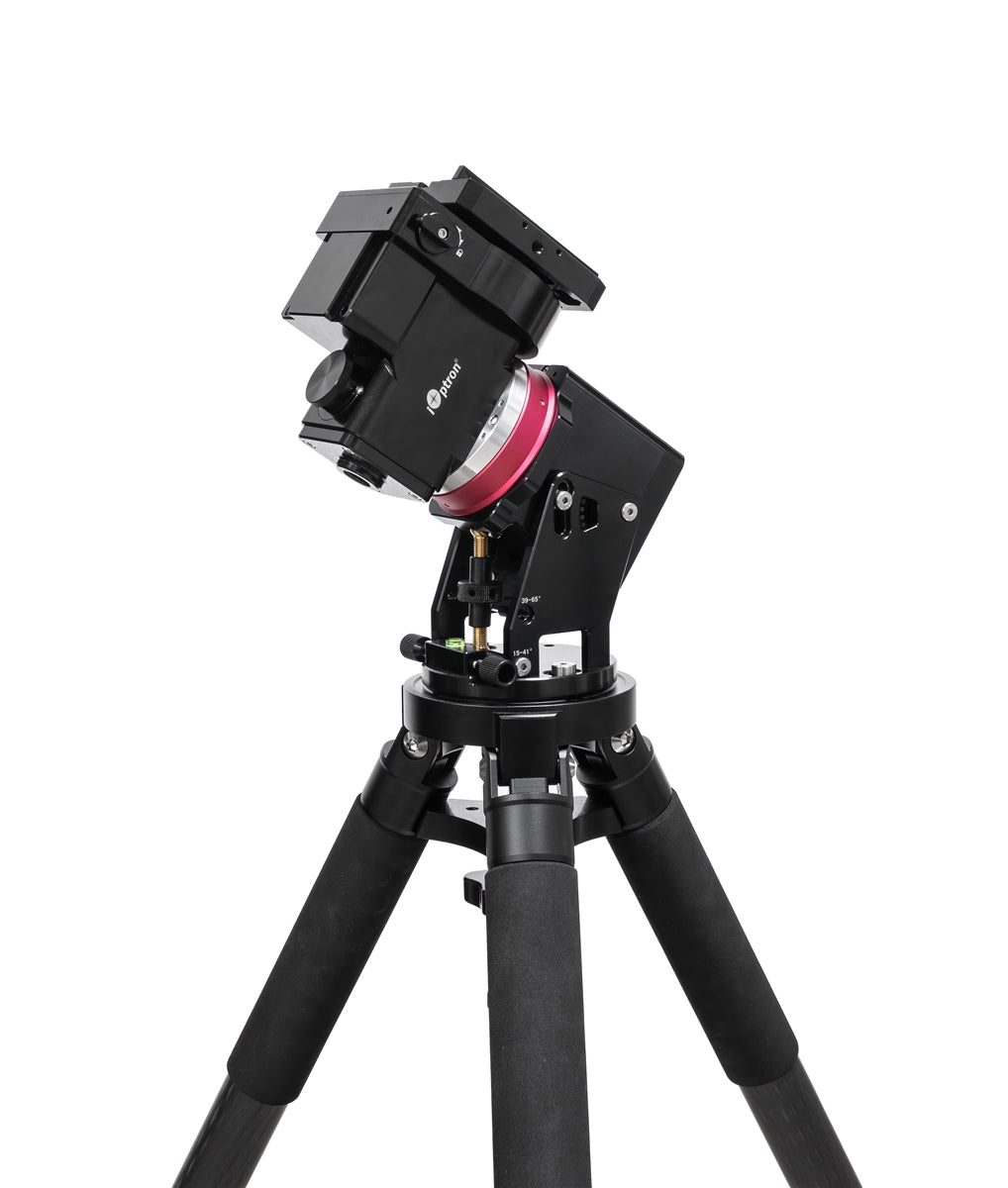

Introducing the HEM27 and the HEM27EC, iOptron’s revolutionary hybrid harmonic drive mounts. These light weight, high payload tiny titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8.15lbs with a payload capability 29.74lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi decade experience creating precision mounts, the HEM27 brings this vision to reality.

Utilizing state of the art harmonic drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM27s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

The HEM27EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

Features

Advanced harmonic drive technology
Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs)
CNC machined and cast metal body
Unique friction brake to safely stop movement during a planned or unplanned power interruption
360 second gear period
High precision encoder with realtime PEC (RPEC)
Go2Nova® hand controller with ~212,000 object database
iPolar electronic polar scope for easy and accurate polar alignment
Cable management system, no hanging exterior cables to moving parts
Dual saddle (vixen and losmandy-D styles)
Built in zero position search and locator
Power down position and location memory
Integrated ST-4 autoguiding port
Built-in Wi-Fi (via hand controller)
USB port for firmware upgrade and computer control

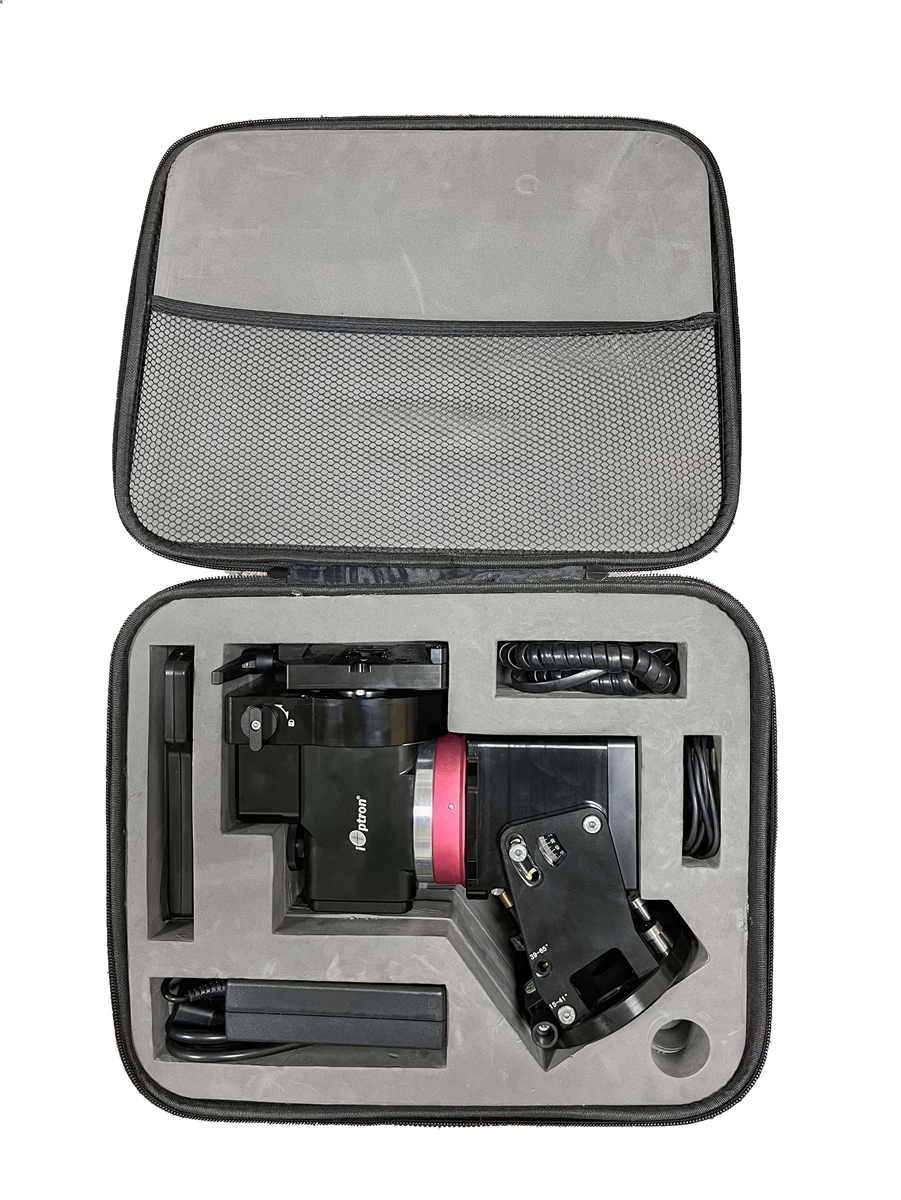

Soft carrying case
Two year warranty
