Camera technical details

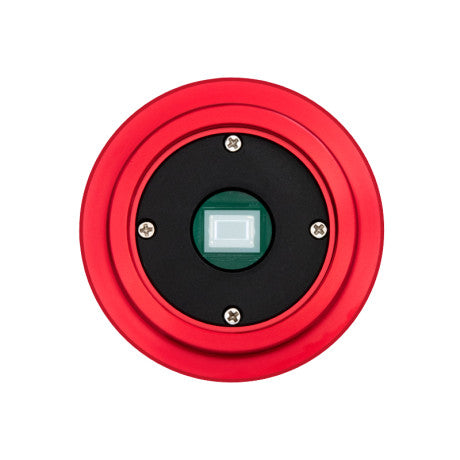

Sensor: 1 / 2.8? CMOS Sony-IMX662AAQR-C
Bayer Pattern:R Gr Gb B
QE peak:91%
Back focus length: 12.5mm
Max fps: 107.6fps
Full well: 37.8Ke
Shutter: Rolling shutter
Resolution: 2.07Mega Pixel,1920*1080
Pixel Size: 2.9µm
Exposure Range: 32µs~2000s
Interface: USB 3.0 /USB 2.0 Type-B
Protect window: f21-1.1 IR
ADC: 12bit
Dimension: 5.568mm*3.132mm
Weight: 126g
Working Temperature: -5?~50?
Storage Temperature: -10?~60?
Working Relative Humidity: 0-80%
Supported OS: WIN7/8/10 32&64?Linux?Mac
