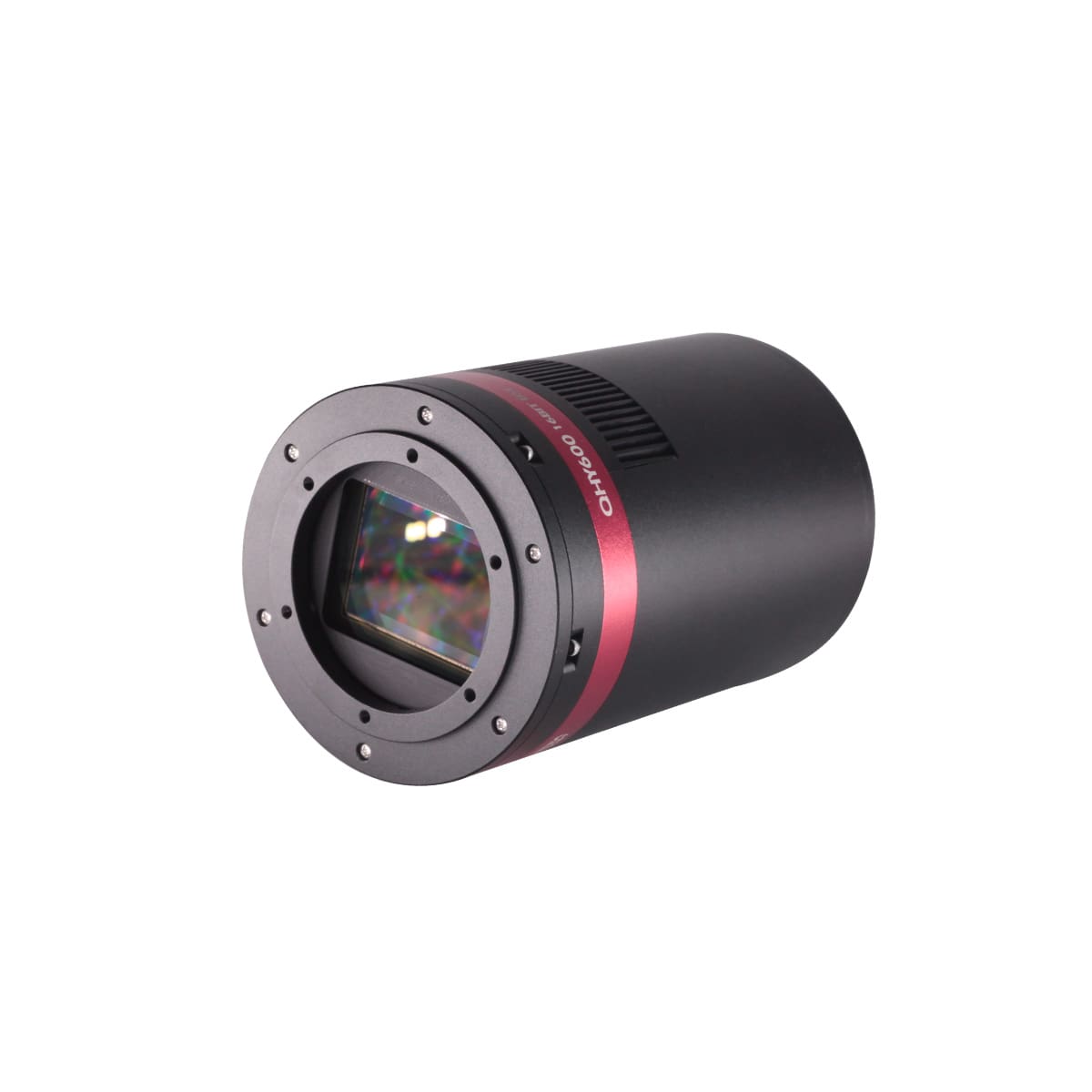

QHYCCD QHY600PH-M Mono Cooled Astronomy Camera

Product Overview

The QHYCCD QHY600PH-M is a monochrome full-frame cooled astronomy camera using the Sony IMX455 back-illuminated CMOS sensor. It offers 61.17 megapixels, 3.76 um pixels, native 16-bit output, USB3.0 connectivity, a 2GB DDR3 buffer, and dual-stage TEC cooling for advanced deep-sky astrophotography.

Who Is This Product Best For?

This camera is best for experienced astrophotographers using full-frame-capable telescopes, filter wheels, and LRGB or narrowband filter sets.

Why Choose This Camera?

• Full-frame IMX455 sensor: Large 36 mm x 24 mm imaging area with 61.17 megapixels.
• Monochrome sensitivity: Ideal for LRGB and narrowband imaging.
• Native 16-bit output: Excellent tonal depth for deep-sky processing.
• 2GB DDR3 buffer: Helps maintain smoother transfer from the large sensor.
• Dual-stage cooling: Reduces thermal noise during long exposures.
• Zero amplifier glow: Helps produce cleaner calibrated data.

Recommended Uses

• Advanced deep-sky astrophotography
• LRGB imaging
• Narrowband imaging
• Full-frame corrected telescope systems
• Remote observatory imaging

Compatibility and Accessory Notes

The standard QHY600PH body uses a back focal length of 17.5 mm plus 6 mm with the camera angle adjuster. QHY lists M54 or M48 telescope-interface support when used with adapters. Because this is a monochrome camera, filters and a filter wheel are normally required for colour imaging.

Important Limitations

• Monochrome camera: Requires filters for colour imaging.
• Large sensor: Requires good full-frame optical correction.
• Large files: A capable computer and storage workflow are recommended.
• Not a complete imaging package: Telescope, filters, adapters, and accessories are sold separately unless bundled.

Frequently Asked Questions

Is the QHY600PH-M a colour camera?

No. It is a monochrome camera for LRGB and narrowband imaging.

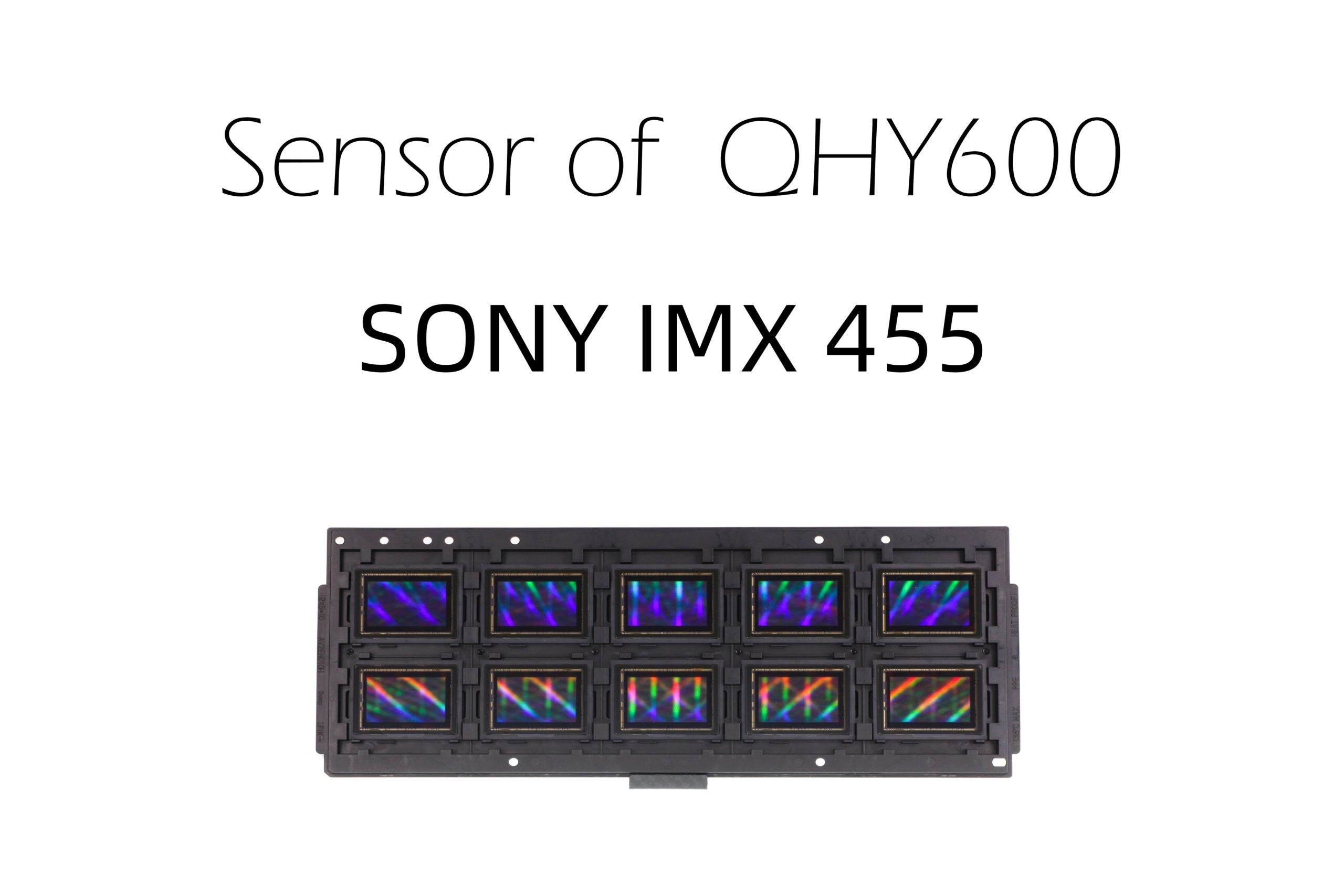

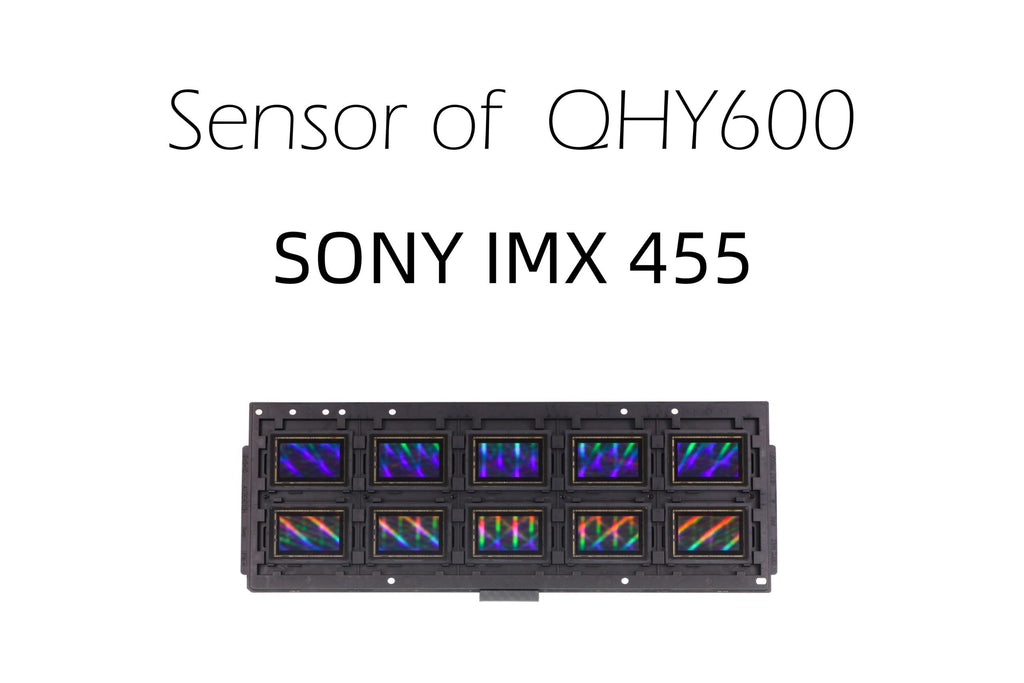

What sensor does this camera use?

It uses the Sony IMX455 full-frame back-illuminated CMOS sensor.

Is this the short back focal length version?

No. This is the standard QHY600PH-M version. Choose the SBFL version if you need the shorter 14.5 mm back focal length.

Our Recommendation

Ontario Telescope recommends the QHY600PH-M for advanced imagers who want a full-frame monochrome camera with high sensitivity, native 16-bit output, and strong performance for LRGB and narrowband work.
