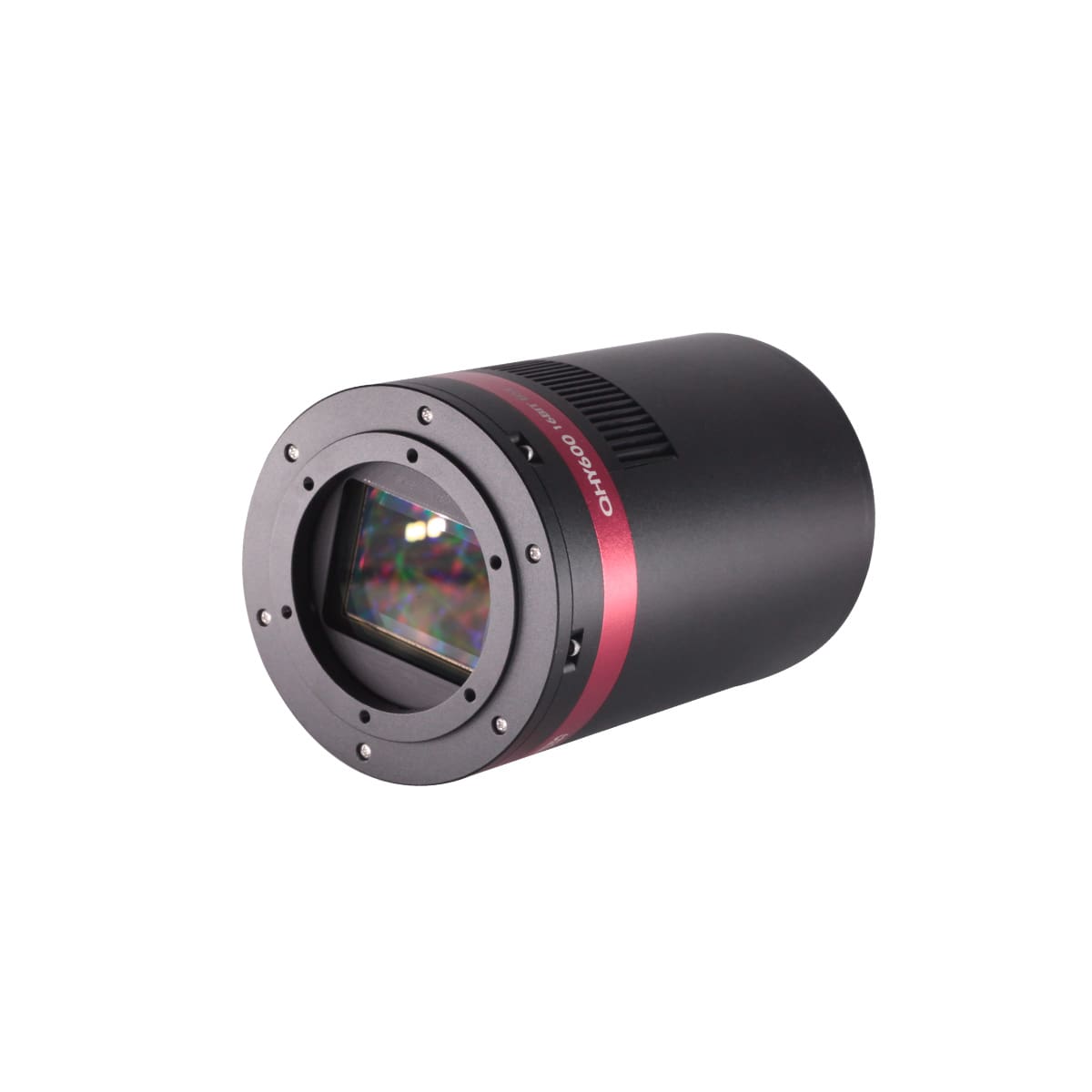

QHYCCD QHY600PH-C Colour Cooled Astronomy Camera

Product Overview

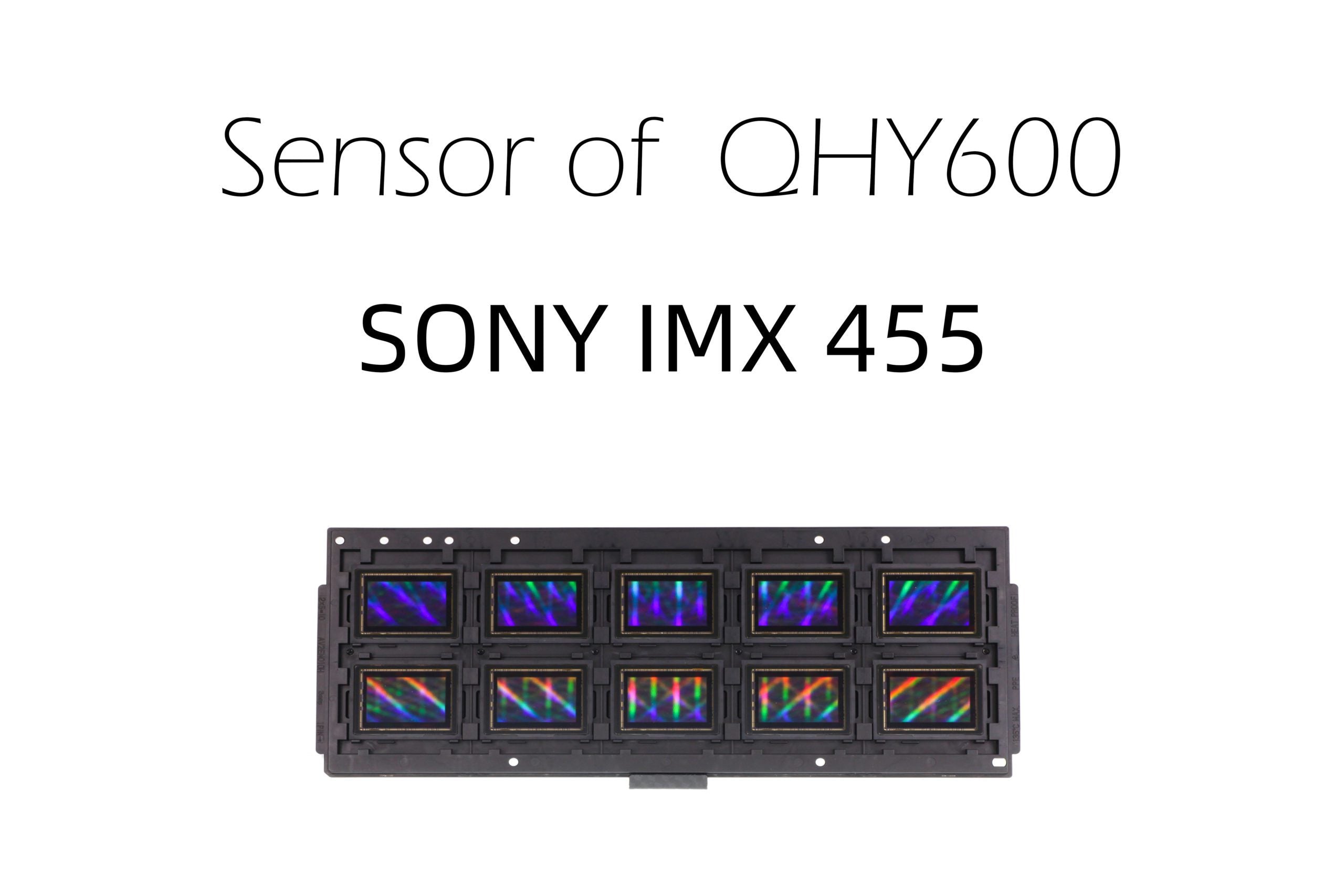

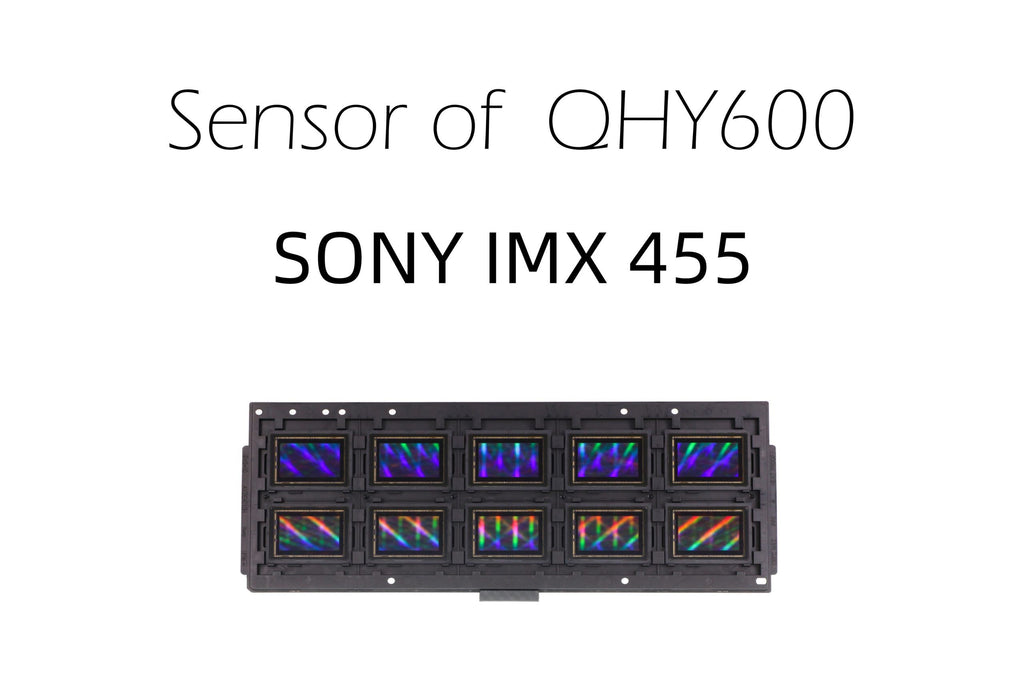

The QHYCCD QHY600PH-C is a one-shot colour full-frame cooled astronomy camera using the Sony IMX455 back-illuminated CMOS sensor. It offers 61.17 megapixels, 3.76 um pixels, native 16-bit output, USB3.0 connectivity, a 2GB DDR3 buffer, and dual-stage TEC cooling for high-resolution deep-sky imaging.

Who Is This Product Best For?

This camera is best for astrophotographers who want full-frame resolution with a simpler one-shot colour workflow instead of a monochrome camera and filter wheel system.

Why Choose This Camera?

• Full-frame IMX455 sensor: Large 36 mm x 24 mm imaging area with 61.17 megapixels.
• One-shot colour workflow: Captures colour data without requiring LRGB filters for basic colour imaging.
• Native 16-bit output: Excellent tonal depth for deep-sky processing.
• 2GB DDR3 buffer: Helps maintain smoother transfer from the large sensor.
• Dual-stage cooling: Reduces thermal noise during long exposures.
• Zero amplifier glow: Helps produce cleaner calibrated data.

Recommended Uses

• High-resolution one-shot colour deep-sky imaging
• Full-frame corrected telescope systems
• Portable or permanent imaging rigs
• Galaxy, nebula, and wide-field imaging

Compatibility and Accessory Notes

The standard QHY600PH body uses a back focal length of 17.5 mm plus 6 mm with the camera angle adjuster. QHY lists M54 or M48 telescope-interface support when used with adapters. Filters may still be useful for light pollution, UV/IR control, or narrowband-style colour imaging.

Important Limitations

• Large sensor: Requires good full-frame optical correction.
• Not monochrome: Choose the QHY600PH-M if maximum narrowband sensitivity and filter control are required.
• Large files: A capable computer and storage workflow are recommended.
• Not a complete imaging package: Telescope, adapters, filters, power, and accessories are sold separately unless bundled.

Frequently Asked Questions

Is the QHY600PH-C a colour camera?

Yes. It is a one-shot colour camera based on the Sony IMX455 full-frame sensor.

Does this camera require filters?

It does not require LRGB filters for basic colour imaging, but filters may still be used for UV/IR control, light pollution reduction, or specialty imaging.

Is this the short back focal length version?

No. This is the standard QHY600PH-C version. Choose the SBFL version if you specifically need the shorter 14.5 mm back focal length.

Our Recommendation

Ontario Telescope recommends the QHY600PH-C for imagers who want a high-resolution full-frame colour camera with native 16-bit output and a simpler capture workflow than a monochrome camera and filter wheel system.
