- Description

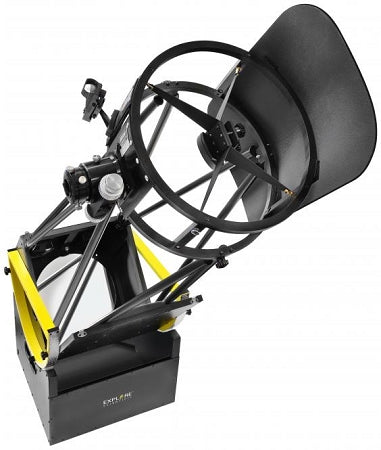

Modern 406mm truss-dobsonian telescope in full aluminium construction
- Modern secondary mechanics - the collimation is easily achieved without tools and keeps collimation well during transports
- Modern primary mirror cell - the telescope mirror can be collimated from the front while looking through the eyepiece and is supported by a modern floatation system with radial roller bearings
- Large altitude wheels provide smooth and precise movement even at high magnifications

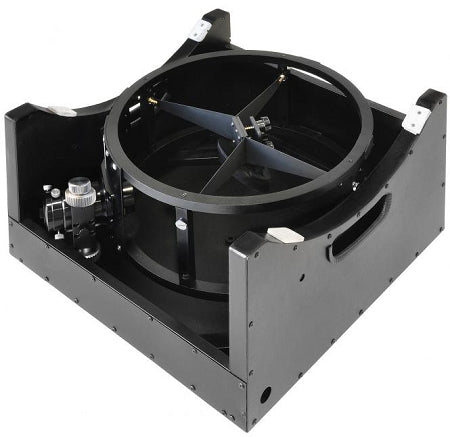

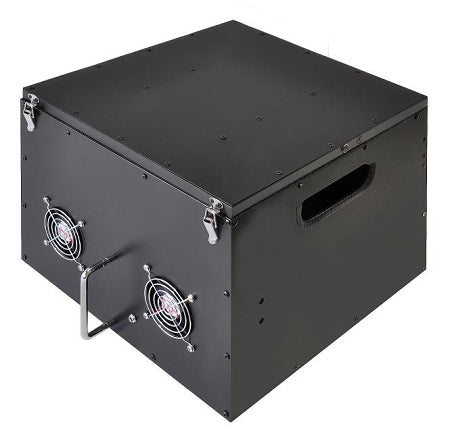

- Secondary unit and altitude wheels fit into the rocker box and the mirror box includes a cover for transport so that the whole telescope breaks down into only two aluminium cases and the trusses
- Extremely high rigidity construction
- Dew-resistant because of aluminium construction: no deforming press board due to the exclusive use of metals
- Lightweight: the aluminium profile/aluminium plate construction reduces the weight to about half of the mass of most press board designs of this price range

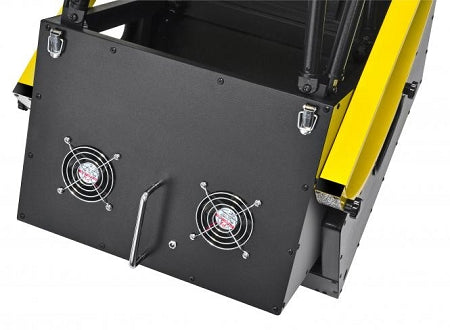

- Two large radial fans for fast thermal equilibrium
| Optical design | Newtonian Reflector |
|---|---|
| Mount Type | Dobson |
| Objective diameter (mm) | 406 |
| Focal length (mm) | 1826 |
| Magnification (with included accessories) up to | 800 |
| Focusing system | 2" Rack-and-Pinion Focuser with helical gearing and 10:1 reduction |
| Material Primary mirror | BK-7 |
| Warranty (Years) | 3 |
| Focus Group |
Advanced Amateurs
Visual enthusiasts
|
| Power supply 1) | 12V Batteries or mains adapter |
| Rain/Dust protection caps | Dust protection caps for open aperture and eyepiece holder |
| Aperture ratio | 4.5 |
| Angular resolution (arc seconds) | 0.32 |
| Mount type | Dobson |
| Transportability | very good |
| Colour | black |
| Secondary mirror diameter (mm) | 88 |
| Obstruction (%) | 25 |
| Primary mirror diameter (mm) | 406 |
| Material OTA | Metal |
| Field of application |
Deep Sky Observation
Lunar observation
Planetary observation
|
| Finderscope | LED-Red Dot Finder |
Dimensions for mobile use: Rockerbox 550mmx550mmx330mm; Mirrorbox 480mmx480mmx300mm; Trusses approx. 1250mm
Eyepiece Height while pointing at zenith approximately 1,63m. 16 Total net weight: 38,4 kg; 16 Mirror Box: 23,8kg;
Eyepiece Height while pointing at zenith approximately 1,63m. 16 Total net weight: 38,4 kg; 16 Mirror Box: 23,8kg;
16 Secondary Cage + Rockerbox: 10,5 kg; 16 4 Truss pairs: 2,5kg; 16 Altitude Wheels: 1,6kg
