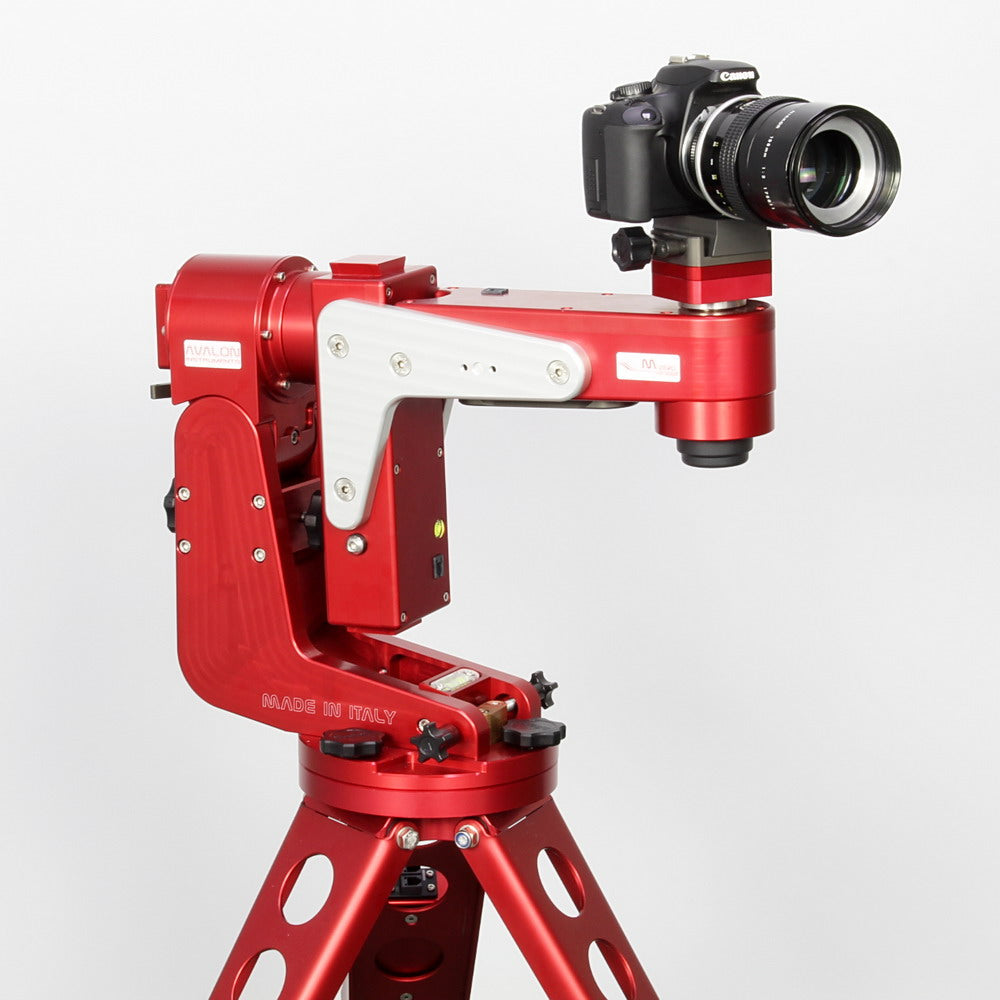

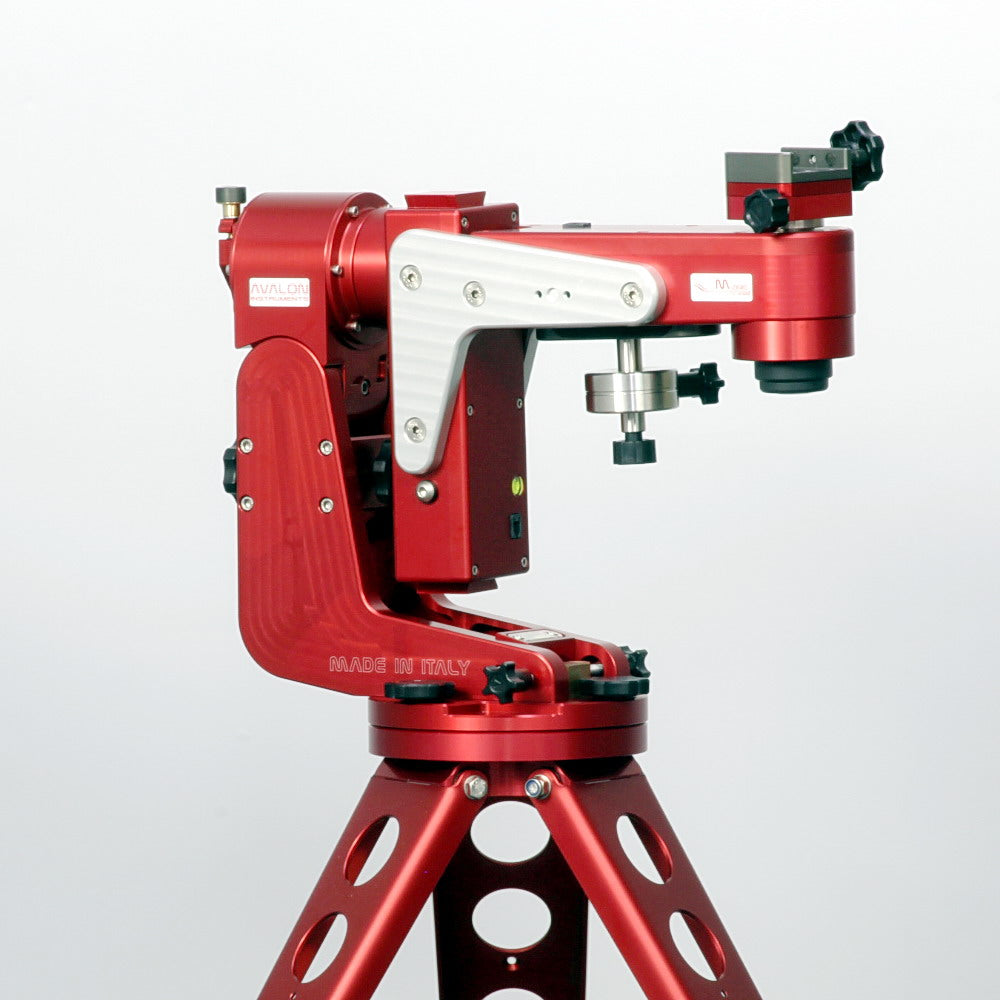

M-ZERO LHQ Bluetooth

From 0° till 70° mount

Avalon Instruments introduce the M-zero for low latitude areas to 0°. Lightweight, small dimensions the M-zero LHQ comes with four range degrees available:

• 0° - 15°
• 15° - 45°
• 30° - 55°
• 55° - 70°

The M-zero LHQ is the perfect mount for low latitude areas and traveling astronomy.

6 Dec arm positions on the RA axis are available

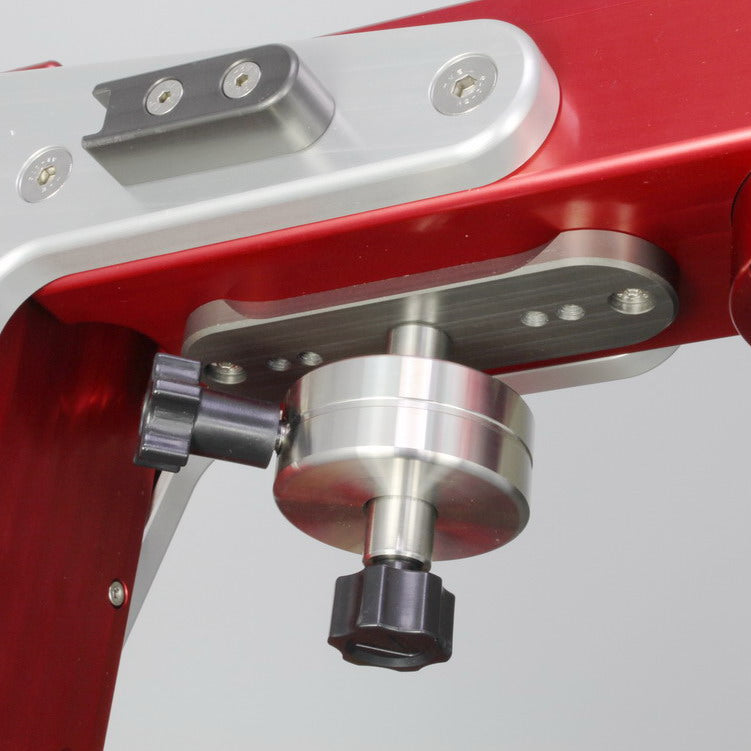

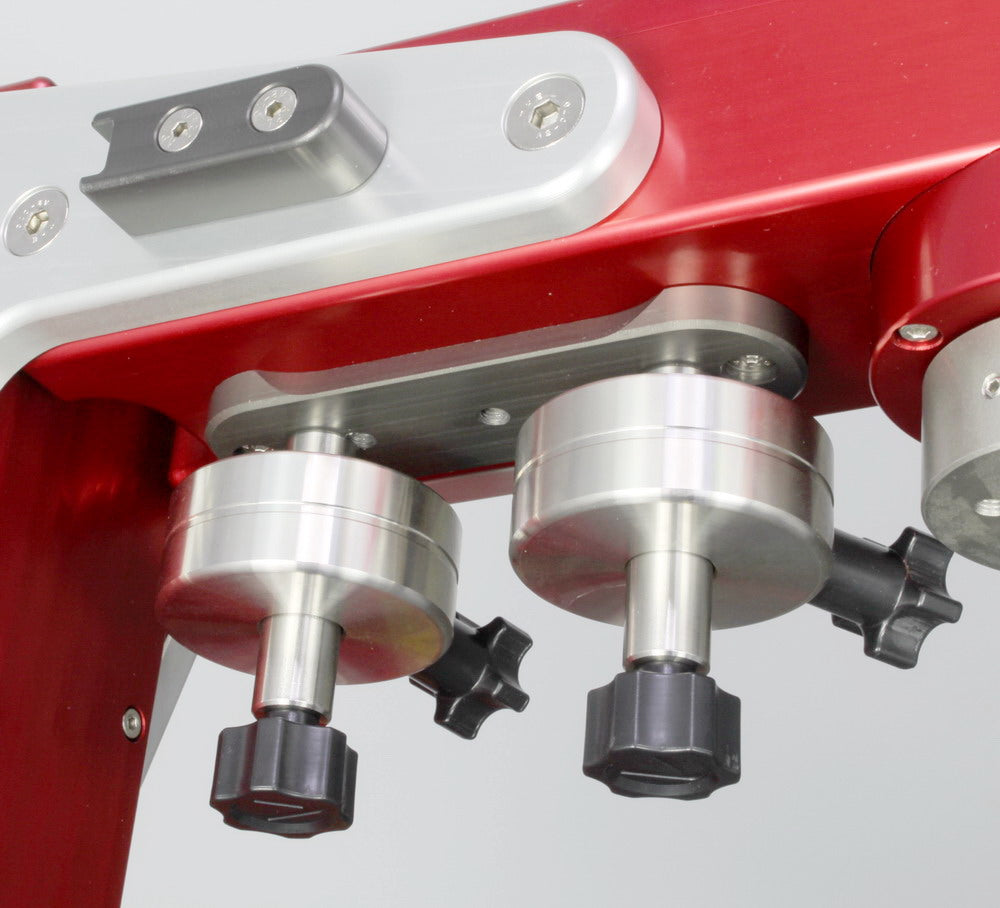

As well as the M-zero standard versions, the M-zero LHQ allow moving the DEC arm up and down on the RA axis in 6 different positions depending on the user setup, to allow a fine balancing by using the less counterweight possible, in most cases, with less than 1 kg/2.2 lb counterweight.

Double Telescope Setup

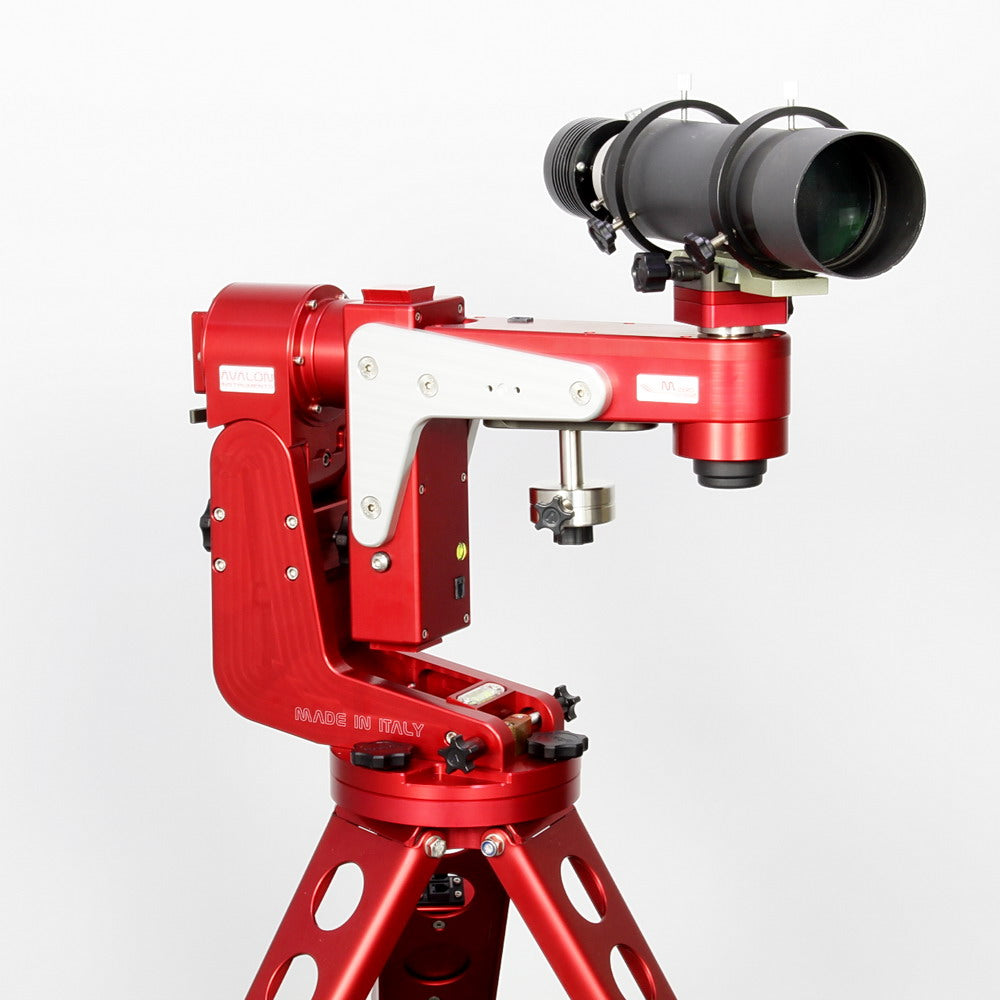

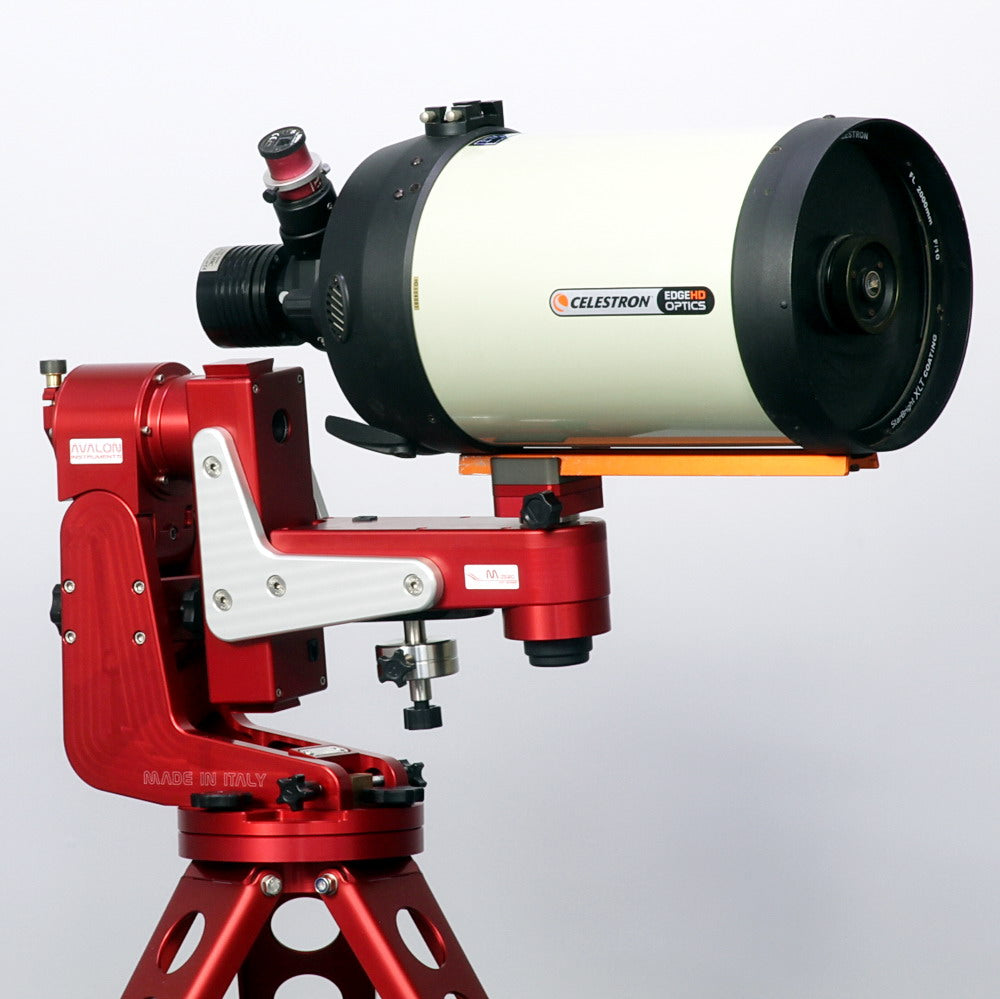

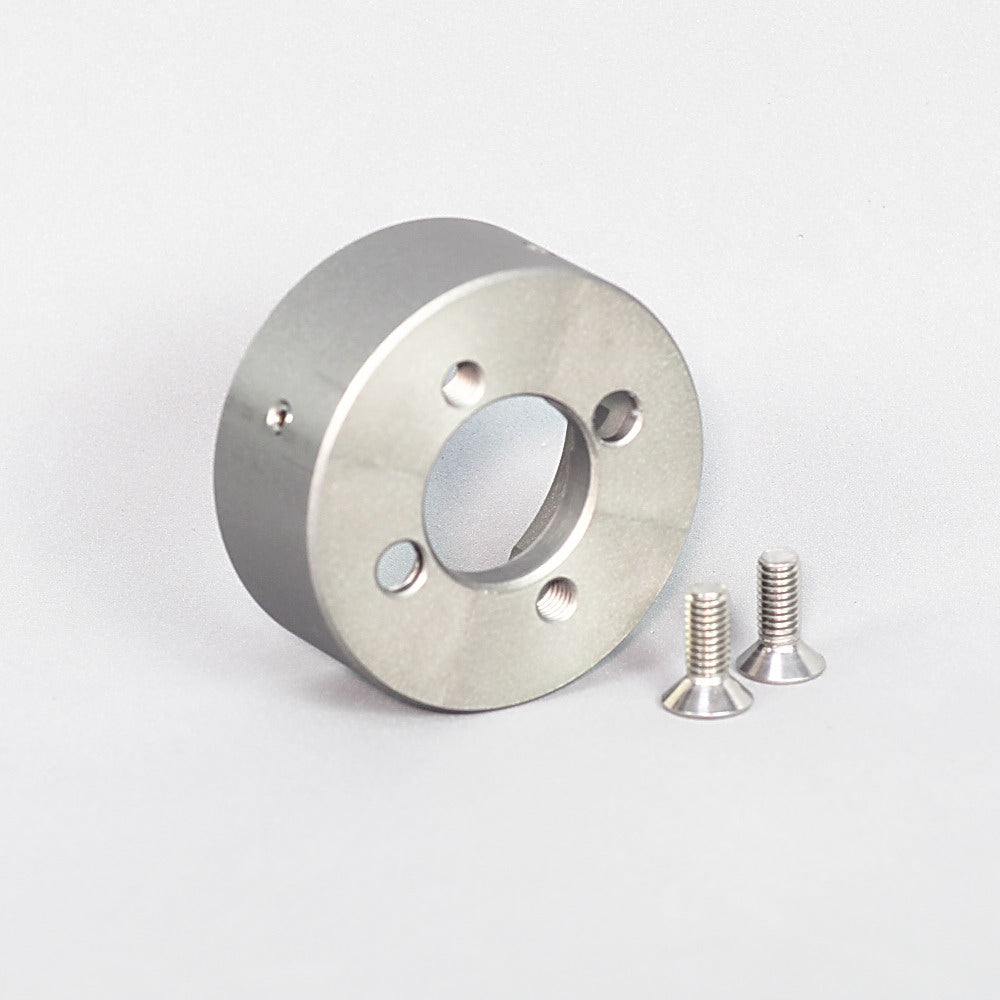

Thanks to the Dual-DEC system or by assembling the optional X-guider accessory, it is possible to mount a second telescope in the opposite side of the declination axis. Considering this capability it is possible to use a great range of optics starting from a small (4-5 kg/8.8-11 lb) refractor up to a double set up with a total weight of 12-13 kg/26.4-28.6 lb, obtaining performances so good to get it over the need of a bigger mount.

Zero Maintenance

The virtually zero maintenance, the long-lasting materials used, and the possibility to easily update the StarGO firmware and software allow the M-zero to be always ready to use, up to date, competitive, and extremely reliable!

Light and Strong

Made entirely from anodized aluminum, worked using 5 axes CNC machines.
The mount weighs only 6 kg/13.2 lb and, combined with the new T-Pod 90 tripod, reaches a total weight of 12 kg/26.4 lb.

Technology and Innovation

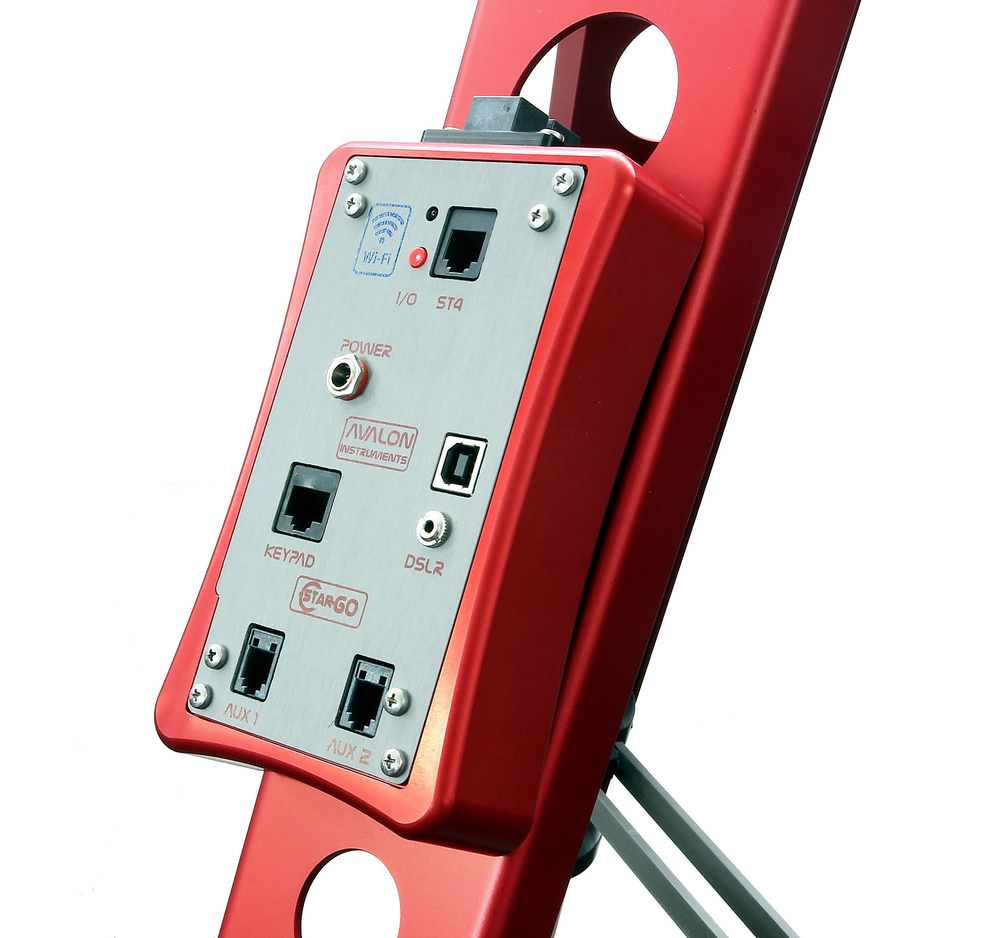

The top-quality manufacturing level, the Fast-Reverse Belt Drive System with zero-backlash and the StarGO GoTo control system allow excellent performance in the photographic use,

THE POLAR ALIGNMENT can be performed by using the polar scope mounted on the RA body that can be rotated to the upper position for a comfortable adjustment of the Polar Alignment.

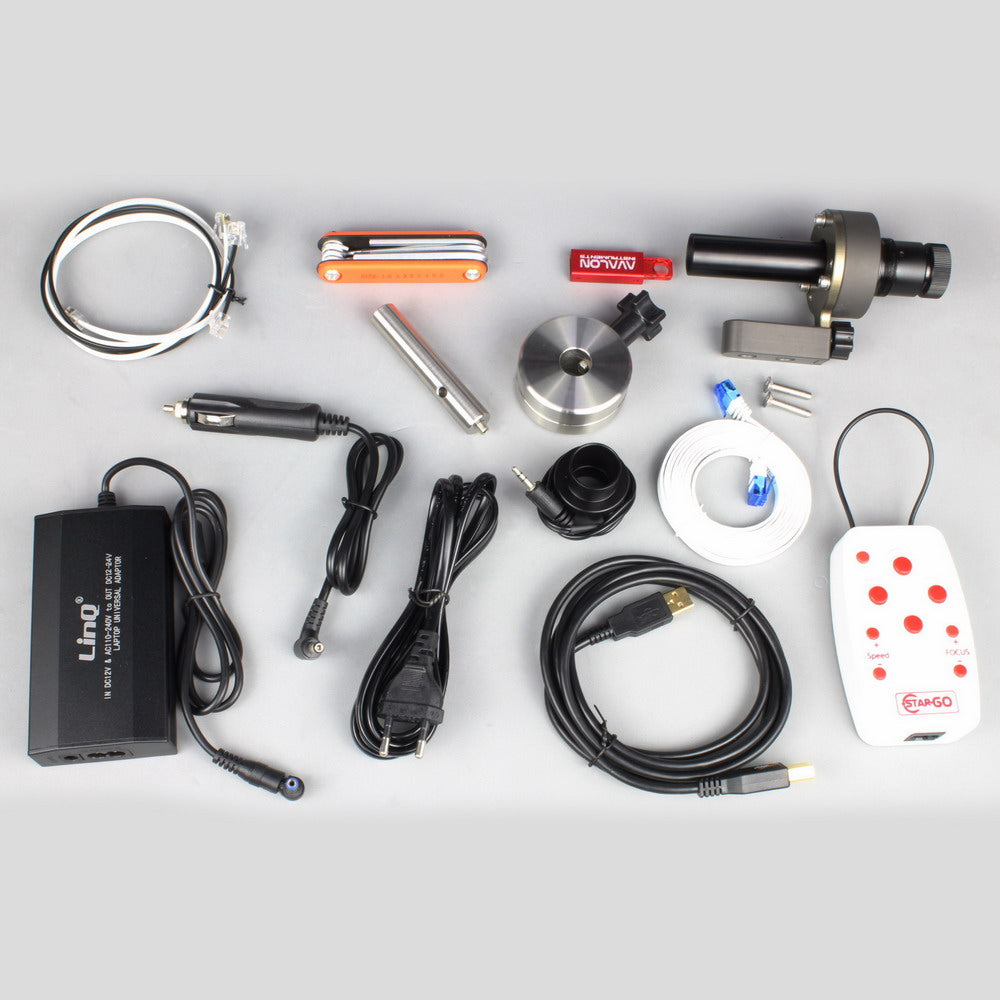

The standard kit for the polar alignment is provided with the following components:

• Polarscope
• Support stand provided of scope fixing knobs and dovetail attack with fixing grip knob.
• Illuminator cap provided of red LED and connection cable to the StarGO.
