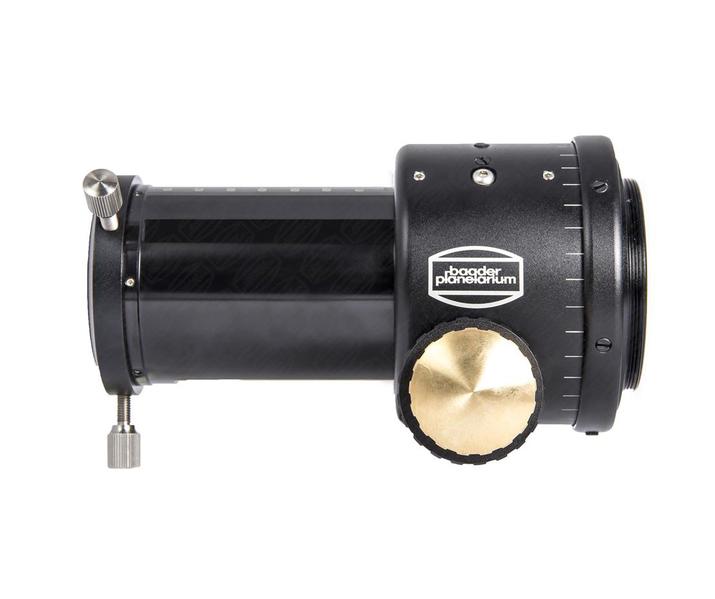

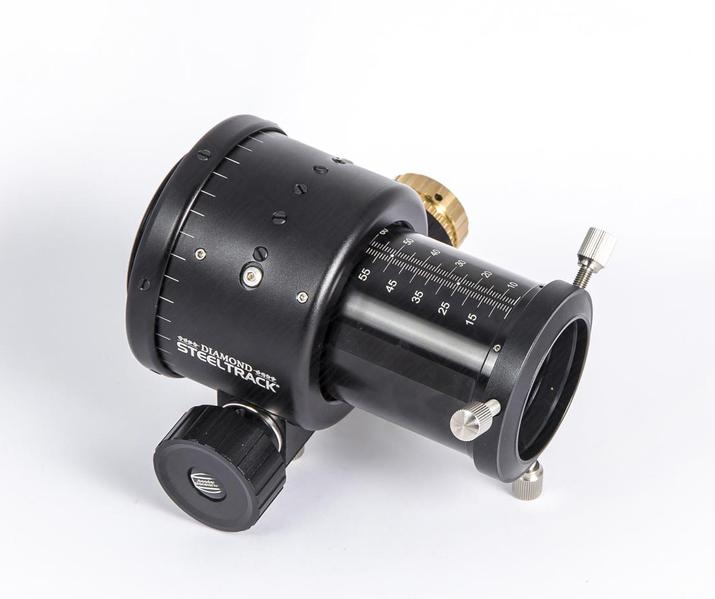

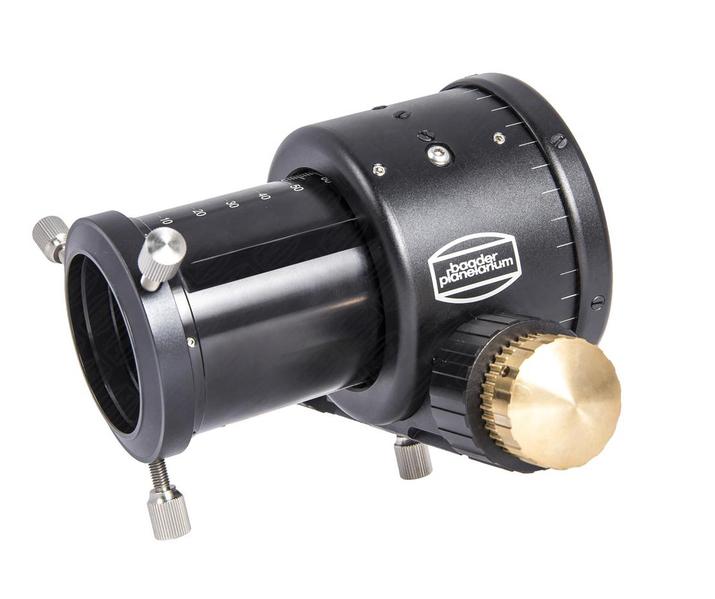

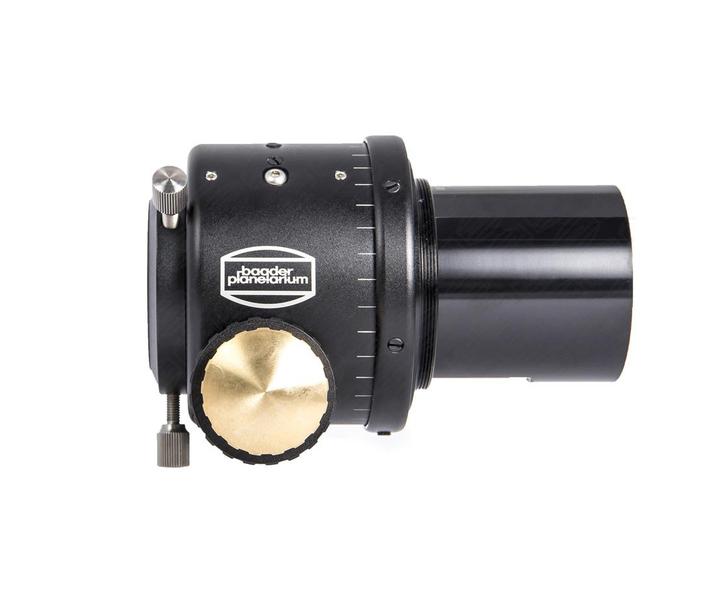

2" BDS-RT Baader Diamond Steeltrack Focuser

2" BDS-RT Baader Diamond Steeltrack® Focuser

Baader Planetarium's 2" Refractor Diamond Steeltrack Focuser gives refractors a full 3" (76mm) of velvety smooth focusing travel. Easily adaptable to popular refractors.

• Overall length fully retracted 80mm (backfocus length).
• Drawtube is fully internally baffled and blackened to eliminate off-axis stray light.
• 72mm dovetail receiver permits 360degree rotation of focuser with single-screw locking.
• Optional adapters available to fit a variety of other refractors.

All Baader Diamond Steeltrack (BDS) Focusers have the following specifications:

Drive System

• True diamonds form a micro-geared high precision drive system never accomplished before
• In comparison to conventional crayford or rack & pinion drives, this micro-geared movement has zero backlash, zero cogging, and zero flexure
• Diamond Steeltrack 2" focusers lift a payload of 6kg (13 lbs) straight up, without slipping, without excessive bearing preload (bearing preload can be increased further if necessary)
• Bearing system utilizes unbreakable Instrument Grade Roller-Bearings instead of simpler Ball Bearings - handles higher loads with greater rigidity and accuracy. No Teflon-pads anywhere
• 1:10 Stainless Steel fine-focus mechanism, ready for attachment of the optional Steeldrive temperature-compensating motor drive system

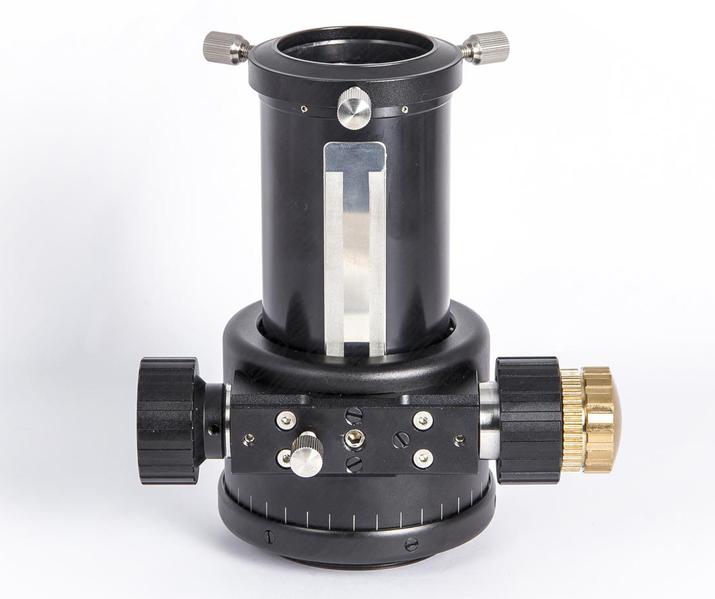

• Detachable drive block assembly is reversible for right hand or left hand fine-focus operation and for attaching the Steeldrive motorblock onto Diamond-NT-Steeltracks for newtonian telescopes
• Shortest possible mechanical design achieves optimum balance between focuser height (backfocus) and rigidity requirements
• Zero shift locking knob to precisely stop any movement without affecting optical axis adjustment

Focusing Drawtube

• Each bearing individually adjustable for precise alignment of mechanical vs. optical axis
• Ultra-hard subzero coated bearing races – precision milled and much harder than anodizing or stainless steel
• Oversized 55mm inner clear diameter, to prevent vignetting, with anti-reflection knife-edge baffles

Clamping System

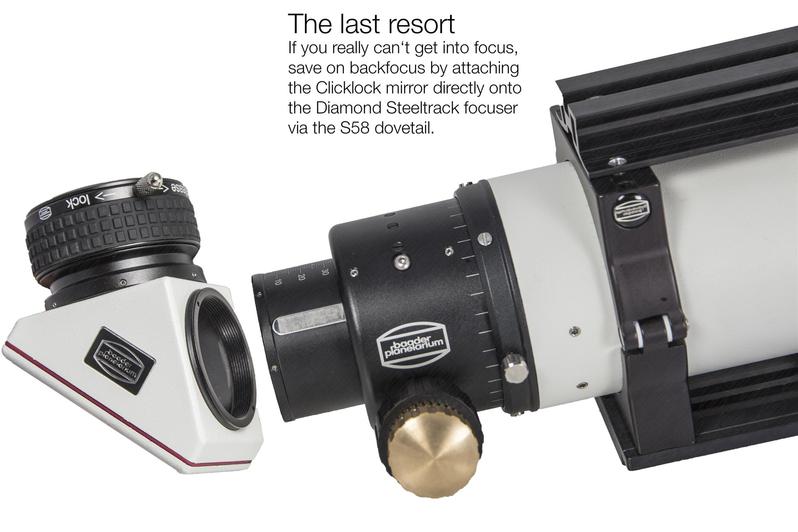

• S58 Dovetail ring-clamp built into focusing tube for accepting optional T-2 / M48 / M68 and other S58 direct-thread adapters to enable direct thread connection of accessories and cameras without 2" clamp
• 2" eyepiece clamp with hardened bronze clamp ring (length of clamp: 12.5mm / ½") included as standard
• Optionally available 2" Baader Clicklock-clamp w. integrated S58 dovetail (added length: 16mm / 5/8")
• Two auxiliary threads (M60x1 and M55x0,75) cut into the RT & NT focusing-tube for attachment of dedicated field flatteners or focal reducers/correctors
