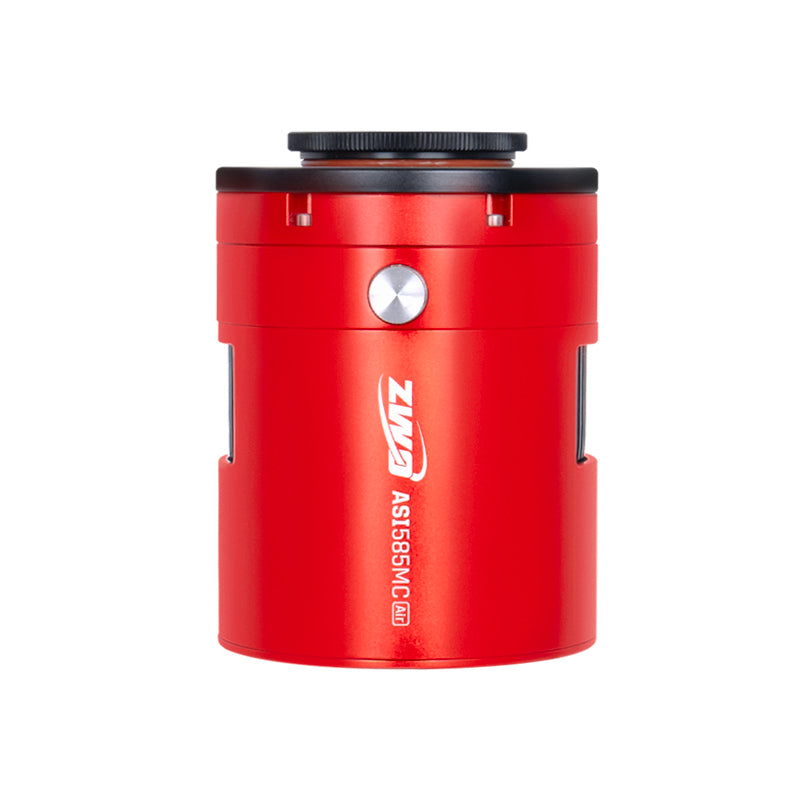

ZWO ASI585MC-Air Smart Astronomy Camera – All-in-One Imaging Powerhouse

Astrophotography Made Simple. And Brilliant.

The ZWO ASI585MC-Air is the next-generation smart astronomy camera designed for deep-sky imagers and planetary photographers who want power, speed, and simplicity—without compromise. With a built-in computer, high-performance Sony IMX585 sensor, and onboard 256GB eMMC storage, this all-in-one camera sets a new benchmark for mobile astrophotography.

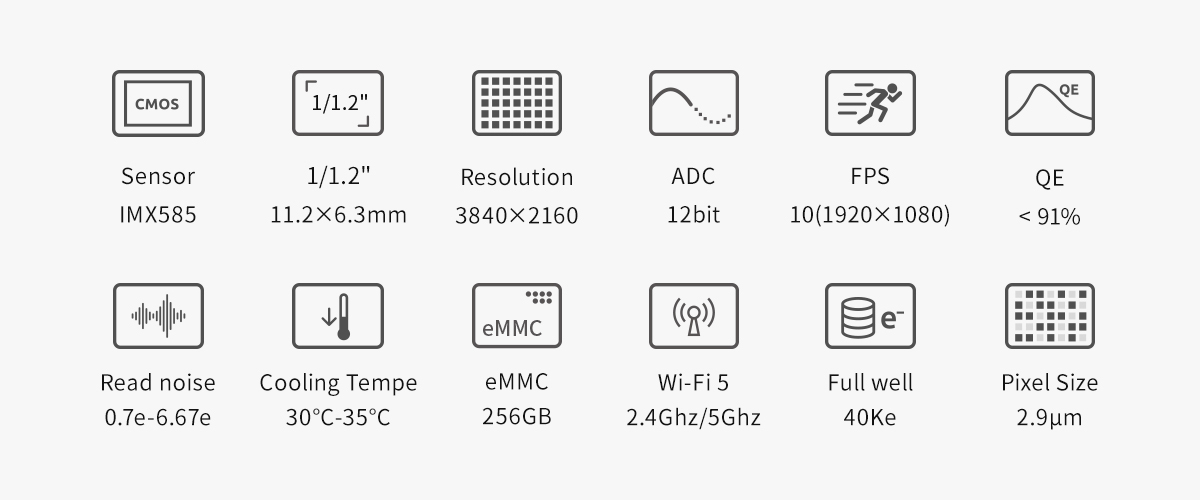

Key Features at a Glance

• Sensor: Sony IMX585 – 1/1.2” Color CMOS
• Resolution: 3840×2160 UHD (4K)
• Pixel Size: 2.9μm – Ideal balance of detail and sensitivity
• Dynamic Range: 12-bit with low read noise (0.7e-6.67e)
• Cooling: Passive + Heating Tube | Delta-T: 30–35°C
• Storage: 256GB eMMC @ 138MB/s Read / 112MB/s Write
• Connectivity: Wi-Fi 5 (2.4GHz / 5GHz), 4× USB 2.0, USB-C, Dual 12V DC

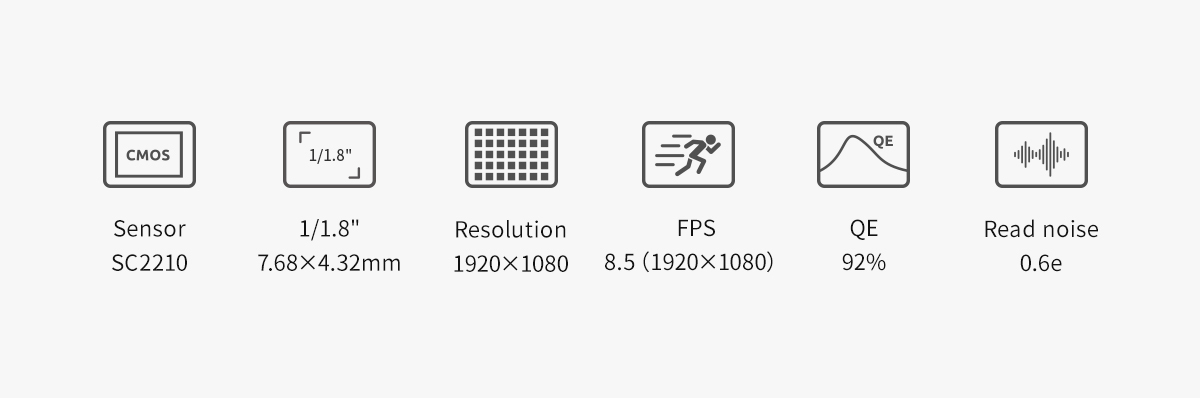

• Onboard Guide Camera: SC2210 Monochrome Sensor

Power Meets Simplicity – Fully Integrated Design

Say goodbye to tangled cables and bulky setups. The ASI585MC-Air features an internal computer with smart control, storage, and wireless connectivity—all inside ZWO’s iconic red housing. With onboard Wi-Fi 5 and 256GB high-speed storage, you can capture, process, and transfer images seamlessly in the field—no laptop required.

The integrated auto-guiding system with a dedicated SC2210 mono sensor delivers stable tracking for long exposures. Just plug it in, power it up, and you’re ready to image the night sky.

Sensor Performance That Shines

• Resolution: 8.3MP (3840x2160)
• Sensitivity: 200nm – 1000nm spectral range
• Frame Rate: 10fps at 1920×1080 (planetary friendly)

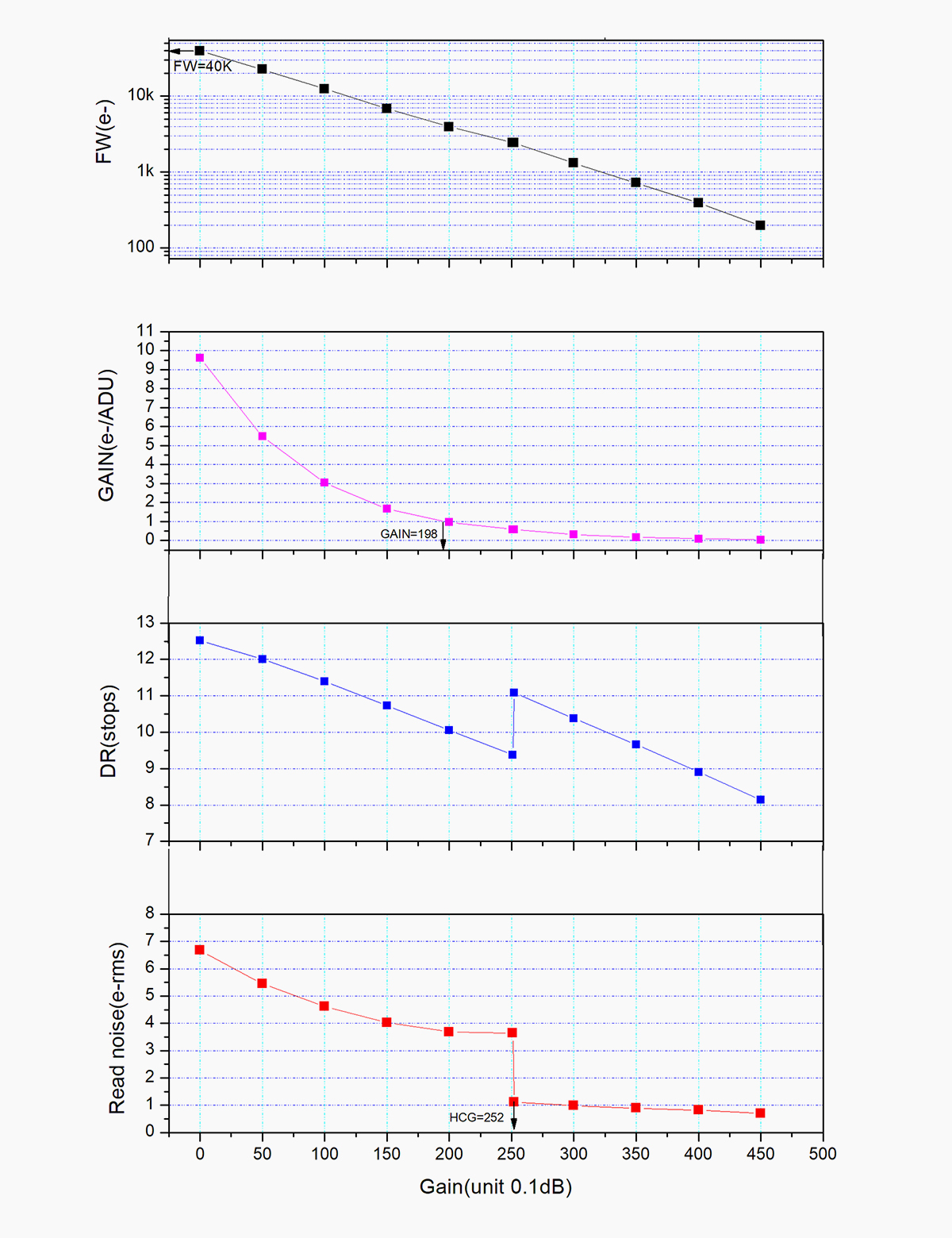

• Read Noise: Low as 0.7e – Ideal for faint targets
• Quantum Efficiency: >90%
• Full Well Capacity: 40Ke for deep exposures

Thermal Stability Built In

Forget foggy nights and ruined frames. The built-in 2.4W heating tube maintains the sensor window temperature, preventing dew and ensuring clear optics. Combined with a 30–35°C delta range, this makes the ASI585MC-Air a smart choice for ambient imaging without active cooling.

 Backed by Data –

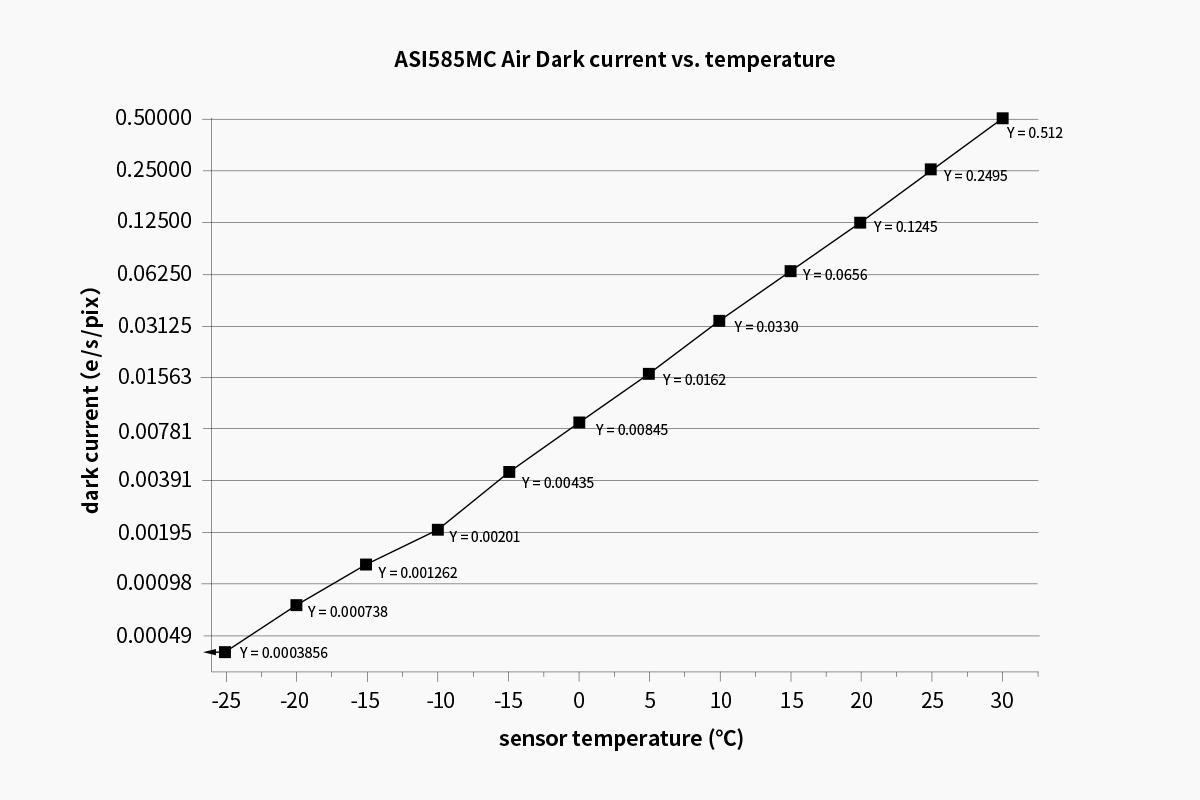

• Dark current remains minimal across temperature range

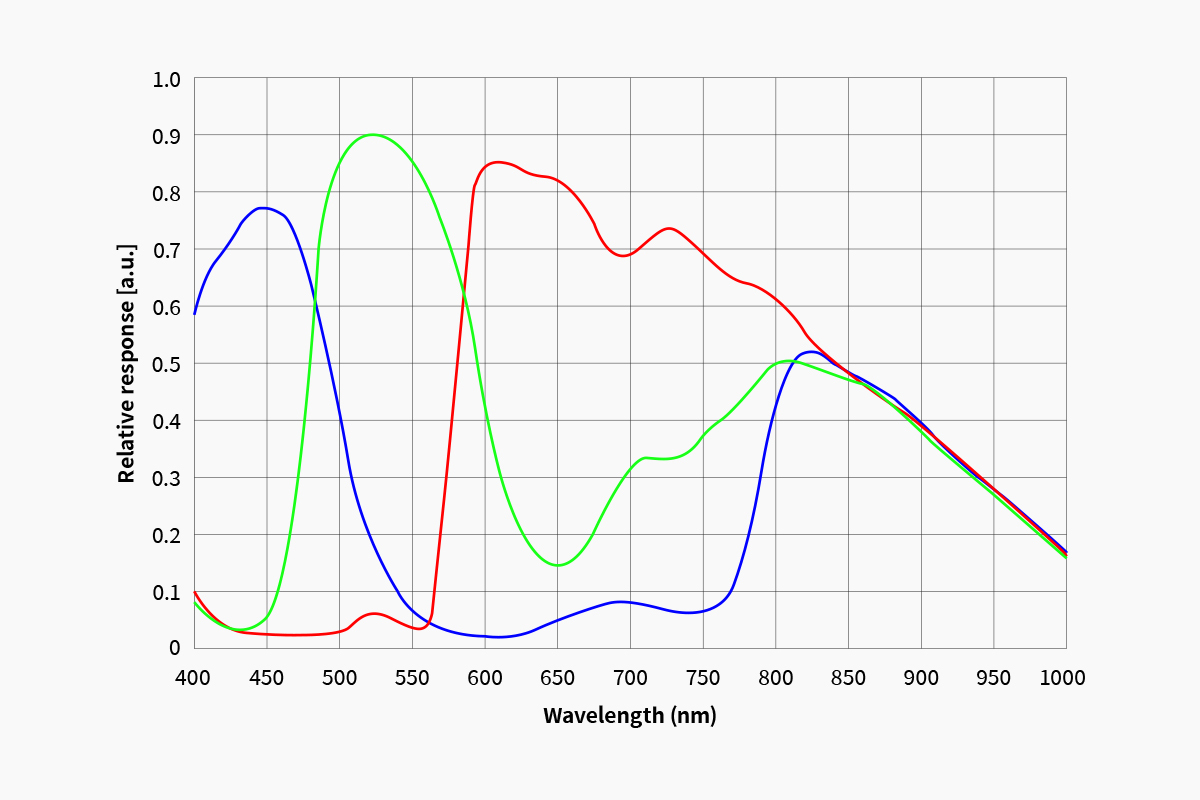

• Spectral response shows clear RGB separation for vivid color rendering

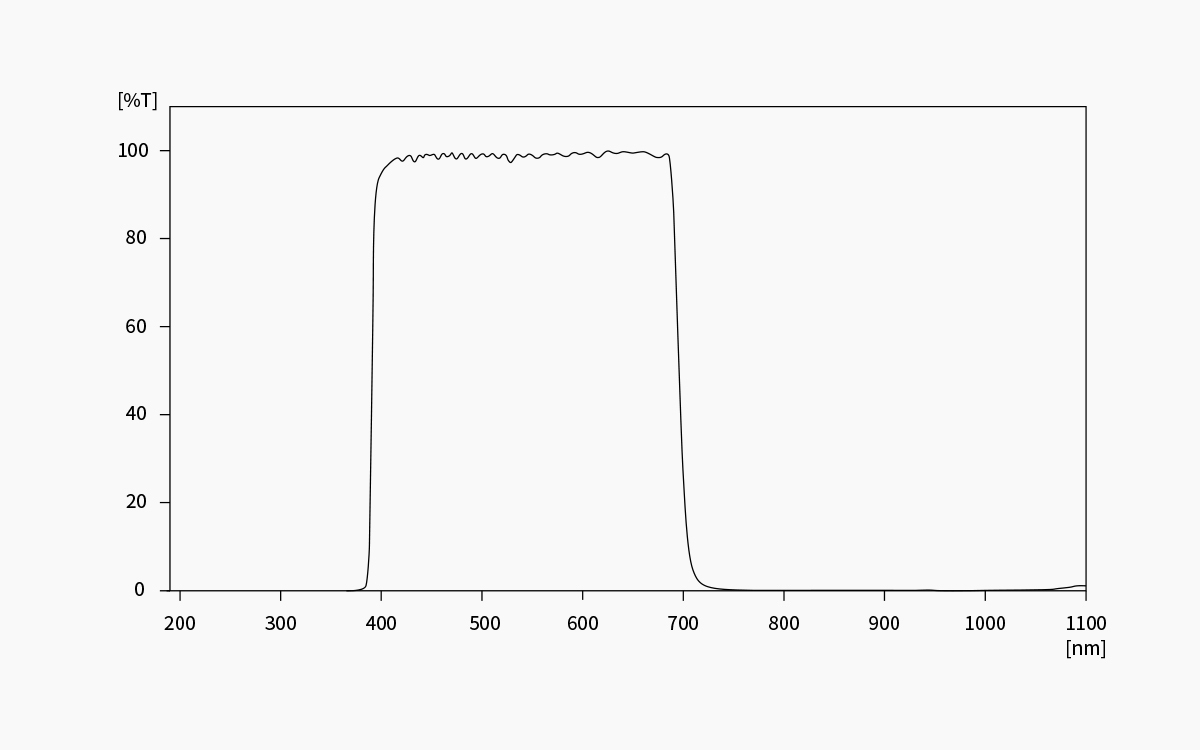

• Built-in IR-cut filter blocks IR bleed without sacrificing visible light throughput

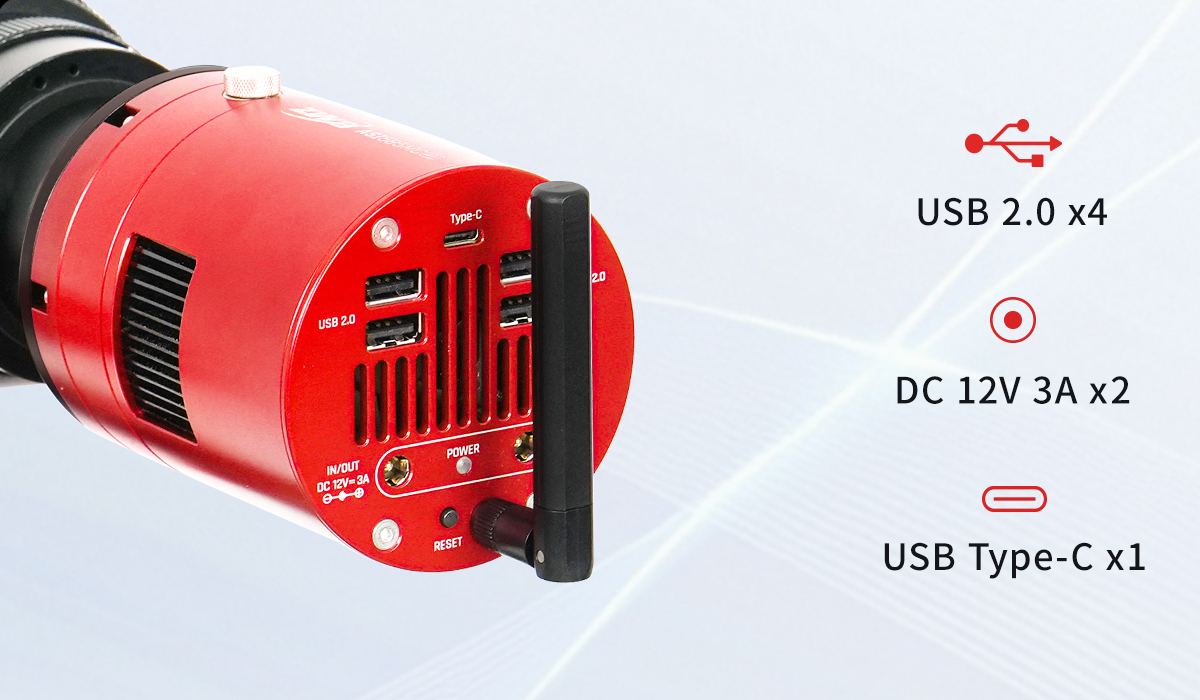

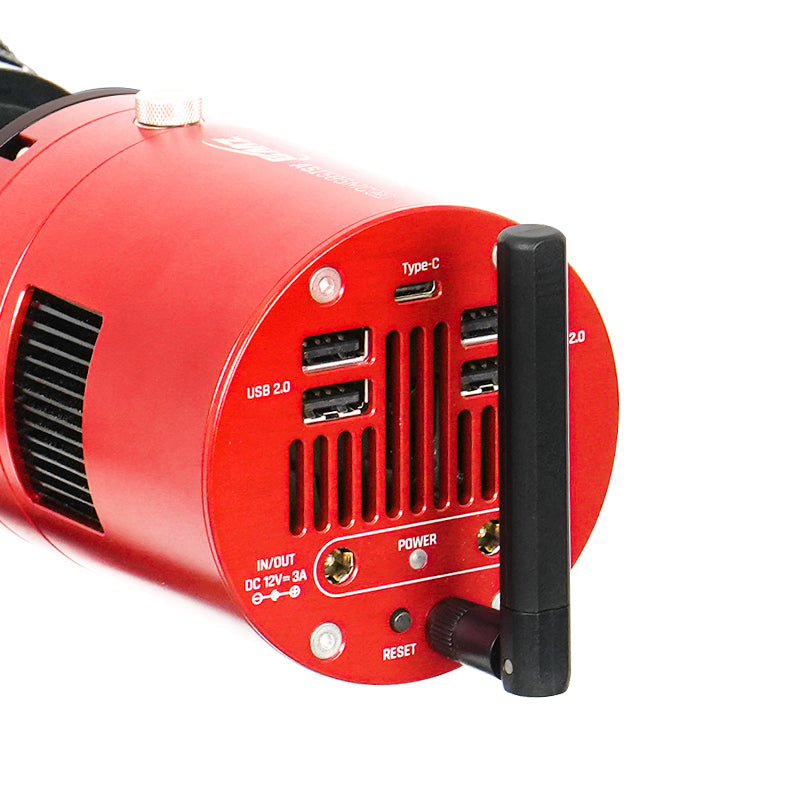

⚙️ Built to Connect

• 4× USB 2.0 ports for accessories like focusers or filter wheels
• 2× DC 12V 3A outputs for powering mounts or dew heaters
• 1× USB Type-C port for high-speed data and firmware updates
• Integrated Wi-Fi 5 for wireless control in the field

Perfect For:

• Beginner to Intermediate Astrophotographers
• Planetary Imagers who want speed and detail
• Portable rigs and remote dark sky trips
• All-sky or EAA (Electronically Assisted Astronomy) imaging

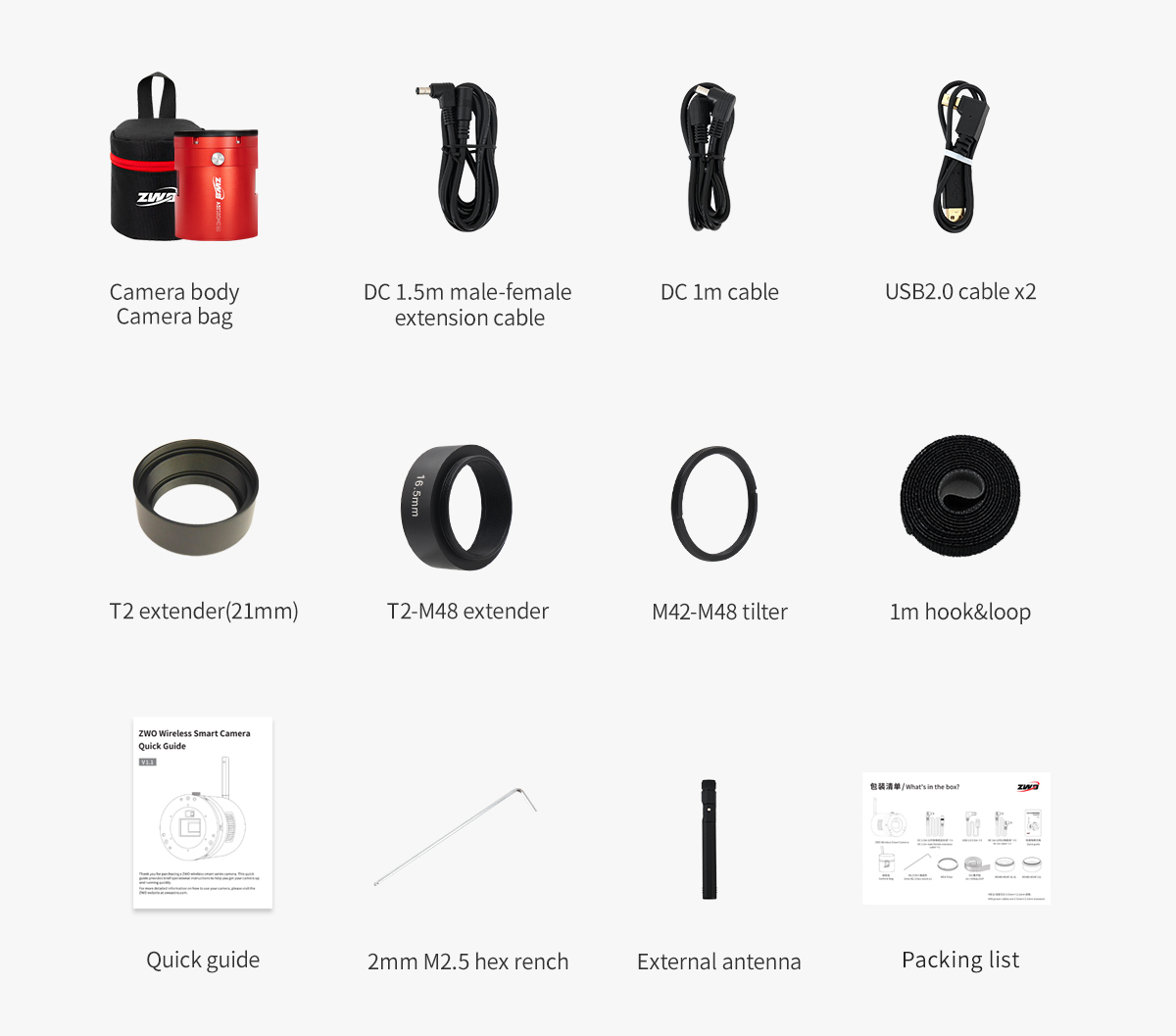

What’s Included

• ZWO ASI585MC-Air Smart Camera
• Wi-Fi Antenna
• USB and Power Cables
• Adapter Ring Set
• Quick Start Guide

Technical Specifications

✨ Why Choose the ASI585MC-Air?

This isn’t just a camera—it’s your entire astrophotography system in one compact package. Whether you're a beginner looking for a simple entry point, or an experienced imager wanting a portable rig, the ASI585MC-Air delivers unmatched power and flexibility with no laptop required.
