Product Overview
Ultra slim motorized filter wheel - only 0.7" thick! USB controlled (ASCOM driver)and powered (no additional power supply required). No motors protruding from the filter wheel to get in the way. Measuring only 7.6" x 8" x 0.7", this is one of the smallest, thinnest motorized filter wheels on the market. Only adds 19mm of back focus to the optical path when used with our adapters.
Perfect solution for Basler Ace, ZWO ASI, QHY, ATIK, Moravian. SBIG cameras. , and more.
Includes:
– T thread male and female adapters
– 2" barrel adapter
– 3M USB interface cable
Optional Accessories:
– M48 thread male and female adapters
– C thread adapter

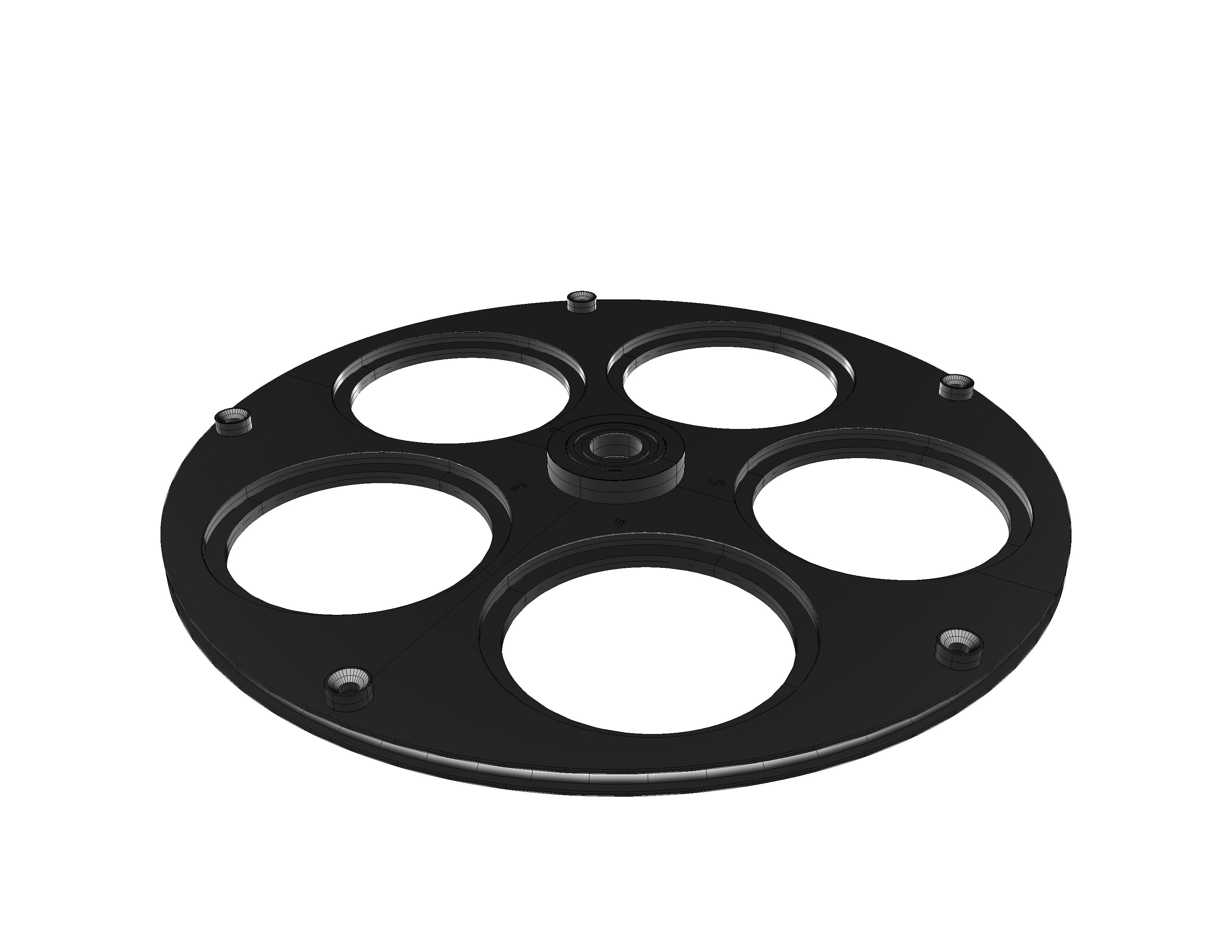

The filter carousel is threaded for 5 standard M48 x 0.75 filters. The maximum filter cell height which can be accommodated is 10mm, having thread length of no more than 6mm.
– T thread male and female adapters
– 2" barrel adapter
– 3M USB interface cable
Optional Accessories:
– M48 thread male and female adapters
– C thread adapter
The filter carousel is threaded for 5 standard M48 x 0.75 filters. The maximum filter cell height which can be accommodated is 10mm, having thread length of no more than 6mm.
Read more about this telescope filter wheel on AstroBackyard.
Specifications
Ultra slim motorized filter wheel - only 0.7" thick!
USB controlled and powered - no additional power supply required
No motors protruding from the filter wheel to get in the way.
Measuring only 7.6" x 8" x 0.7", this is one of the smallest, thinnest motorized filter wheels on the market.
Only adds 19mm of back focus to the optical path when used with our adapters.
USB controlled and powered - no additional power supply required
No motors protruding from the filter wheel to get in the way.
Measuring only 7.6" x 8" x 0.7", this is one of the smallest, thinnest motorized filter wheels on the market.
Only adds 19mm of back focus to the optical path when used with our adapters.
Includes:
- C Mount Male adapter with locking ring
- T2 Mount Male adapter with locking ring
- T2 Mount Female adapter
- M48 Male thread adapter with locking ring
- M48 Female thread adapter
- 2" barrel adapter
- 10' USB interface cable
The filter carousel is threaded for standard M48 x 0.75 filters. The maximum filter cell height which can be accommodated is 10mm, having thread length of no more than 6mm.
All downloads are now available in the DOWNLOAD section of the XAGYL Astro website.
