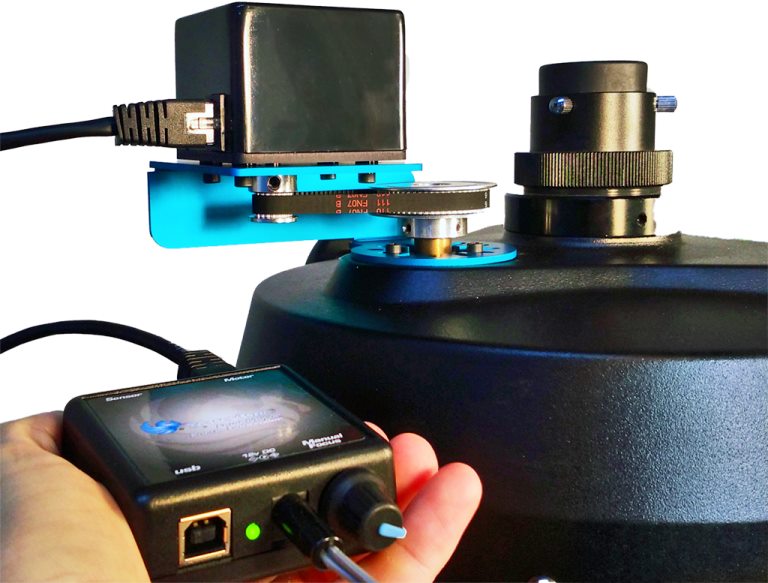

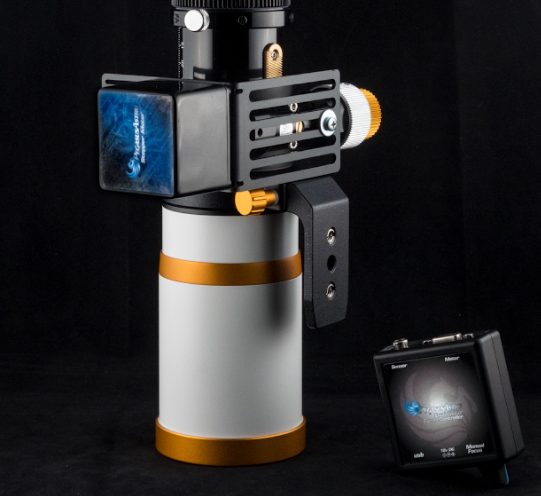

Pegasus Astro Motor Focus Kit / Controler v3.2

Focus fast, reliable and accurate your telescope using a stepper or DC motor and our controller. This controller will only control one motor.

When selecting this system be sure to select the controller and the motor you need for your scope.

Dual Motor Focus brings a decade of experience in astrophotography and telescope focusing concepts. The evolution of technology in astronomy requires a system which will assist the focusing of the telescope with great accuracy. Fast optics and modern camera devices require automatic focusing in every small period of time as temperature can affect focal length and modify the optimal focus position. Pegasus Dual Motor Focus Controller (DMFC) has been developed to meet these requirements.

Installation services can be provided by Ontario Telescope and Accessories. Ship your focuser or Telescope to use and we will install and test the stepper on your focuser. You focuser or Telescope will be shipped back to you and is included in the service cost.

• Motor Focus Controller V3
• Cigarette Lighter Power Adapter DC
• Temperature Sensor 1m length

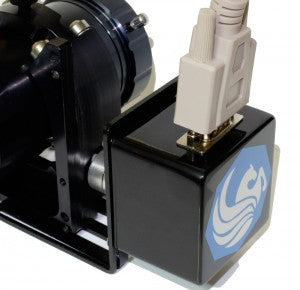

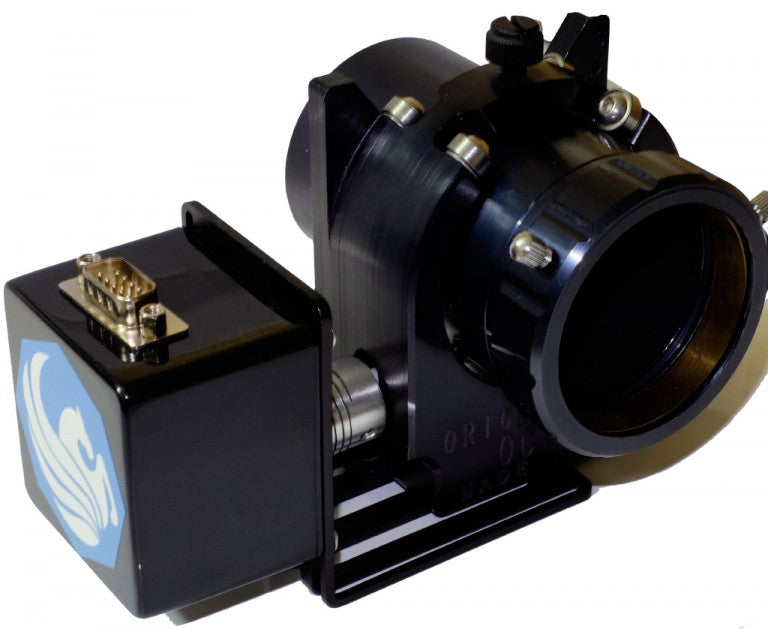

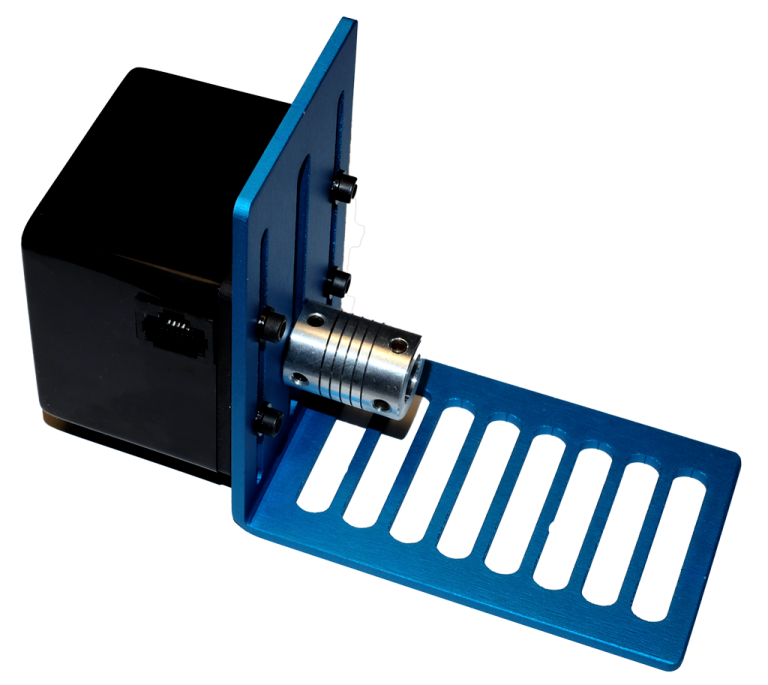

• High Resolution Stepper Geared Motor (Step Angle 7.5° / 120, Gear Ratio 1:120)

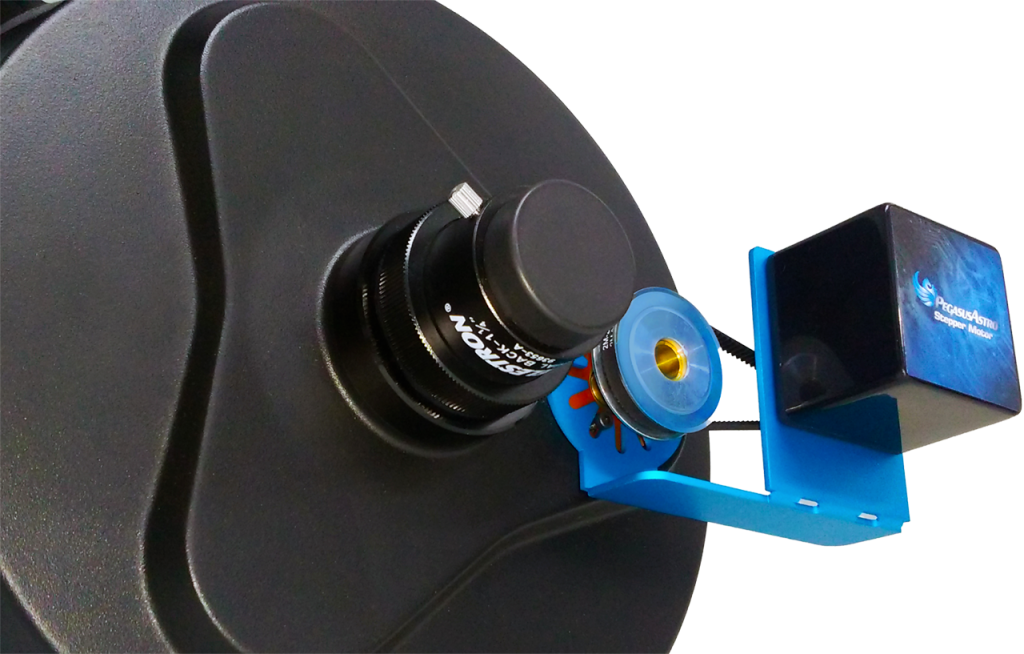

• Universal Anodised Thick Aluminium Bracket for Motor (does not bend)
• Motor Coupler (5mm to 10mm)
• RJ45 cable
• Bolts and Spacers (different types to match your focuser’s installation)
• USB2 type B cable (1.8m)

Dual mode

• The Dual Motor Focus Controller supports two kind of motor types.

· High Resolution Stepper motors for absolute position focusing.

· DC motors by its Pulse Width Modulation duty cycle control.

Controller can switch motor mode from its software, Mode can be instantly changed (with one mouse click) from ‘stepper’ to ‘dc’ motor and saved in controller’s EEPROM memory

Manual and PC operation.

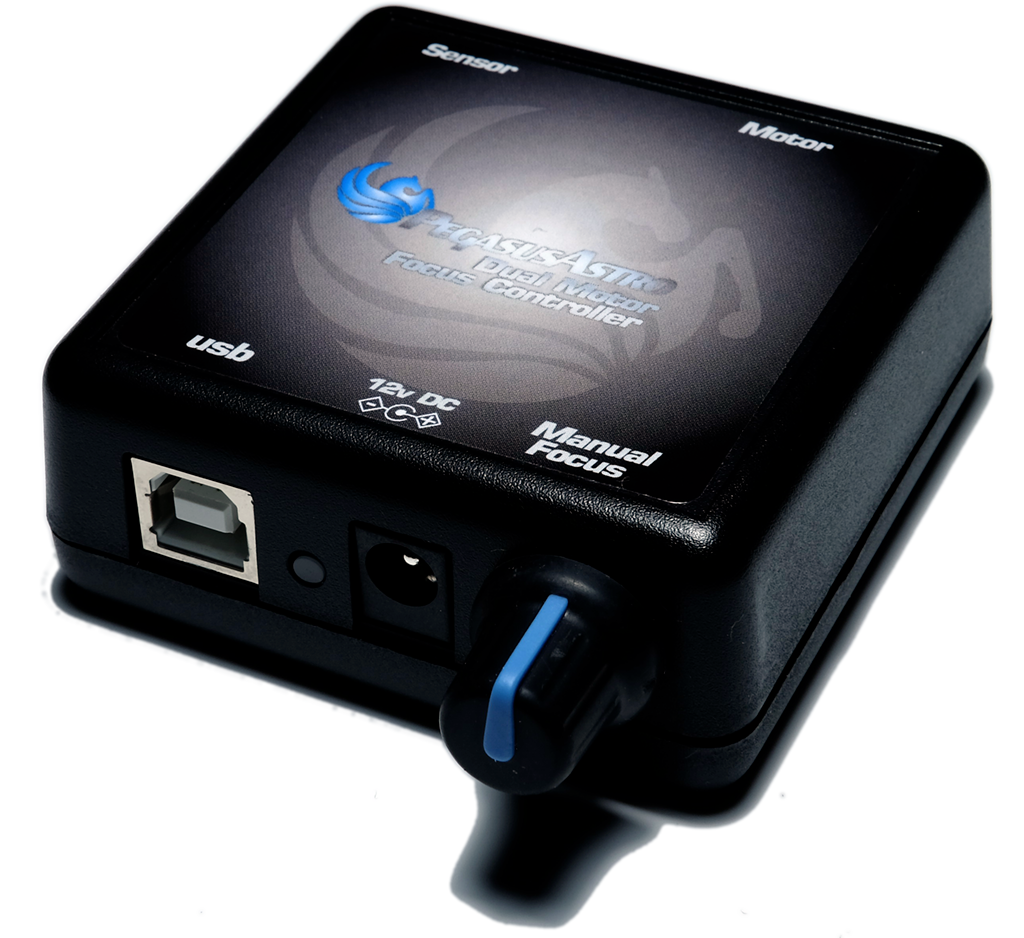

The controller can be operated by PC using its USB2 connectivity. A manual operation by utilizing the digital encoder on the side of the controller simulates the knob of your real focuser. Turn the knob as it is the knob of your telescope’s focuser. If you press it, speed of the motor will be reduced to 1:10.

Dual Colour Indicator

A dual colour light emitted diode (Green / Yellow) is fitted on the side of the unit. Each colour indicates speed and the led can be turned on or off by its software during an observing session. Keep it pressed to disable the knob.

Robofocus compatible connector pin out

Motor output is fully compatible with “Robofocus ©” pin out. Output can drive most of the motors in the market. Take a look in our F.A.Q tab.

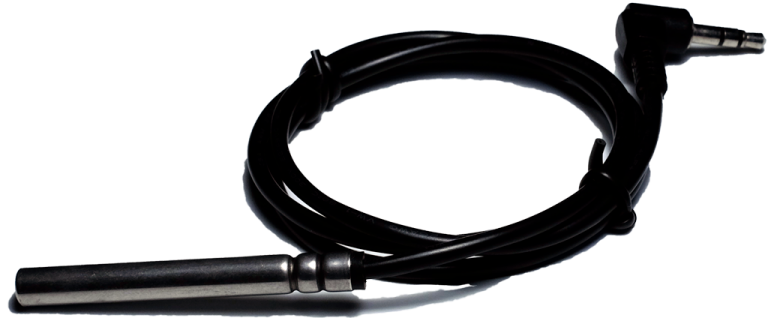

Temperature Probe

An external digital temperature sensor input is located near the motor connector. A digital probe of one (1) meter length is supplied. The probe can be placed near the focuser so the exact temperature of the focuser / environment can be seen through the supplied software or ASCOM driver

Backlash Compensation

Controller can compensate the backlash you might encounter in your system. Although our motor has very low backlash other setups might need this feature. Backlash compensation is supported from a function inside controller’s firmware.

ASCOM compliant

The controller is fully compatible with latest ASCOM 6 and can easily be controlled from a computer.

INDI (Open Astronomy Instrumentation) compliant

Pegasus DMFC driver is included with libindi >= 1.5.1

Official Indi Driver : http://indilib.org/devices/focusers/pegasus-dmfc.html

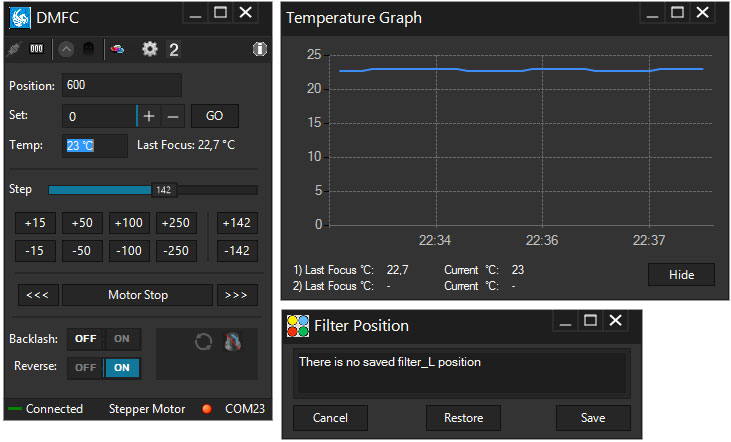

Standalone program support

The controller can be operated by the standalone DMFC software. (Only available for Windows OS)

Firmware upgrade support

Controller firmware supports re-programming via the USB 2.0 connection using upgrade software, for future upgrades which may become available. We constantly receive feedback from our customers and keep updating the firmware and software with new features.

Two Years warranty

Warranty covers the controller device including the temperature sensor and the Pegasus Stepper Motor kit.
