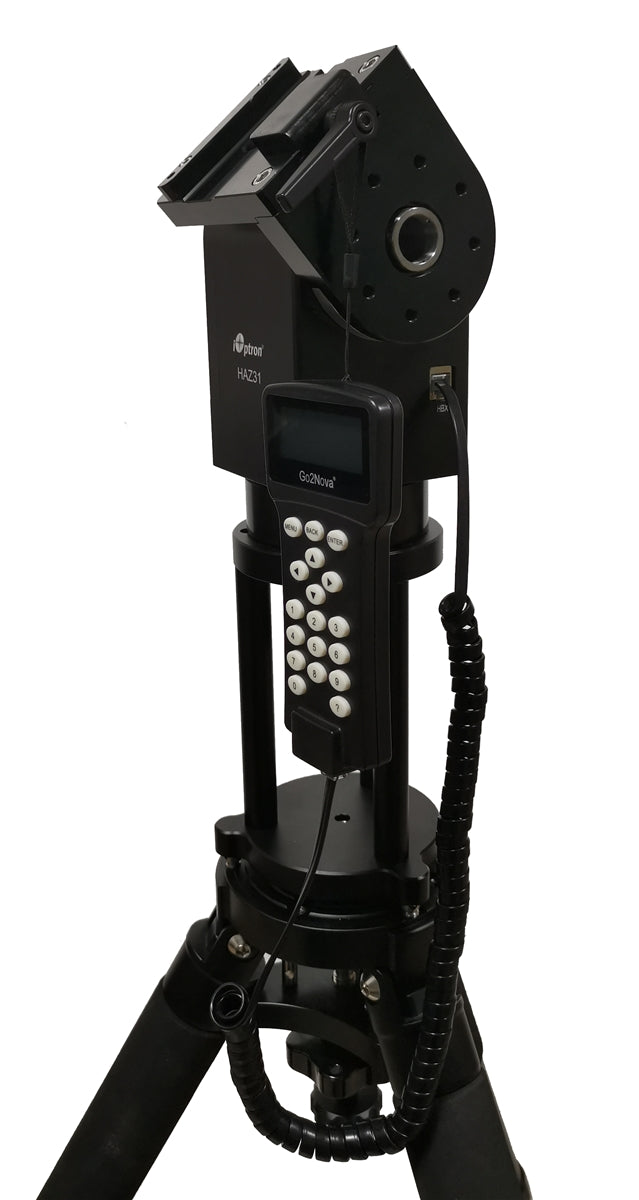

iOptron HAZ31 Alt-Az Strain Wave Mount

iOptronSKU: HZ312

Carbon Fiber Tripod: Yes

Pier Extension: Yes

Variant

Price:

$3,604.99 CAD

Stock:

On Backorder — ships when available

Quantity:

Share this product

Description
Specifications

Two exciting new Alt-Az strain wave mounts, HAZ31 and HAZ46, are added into iOptron strain wave gear mount family!

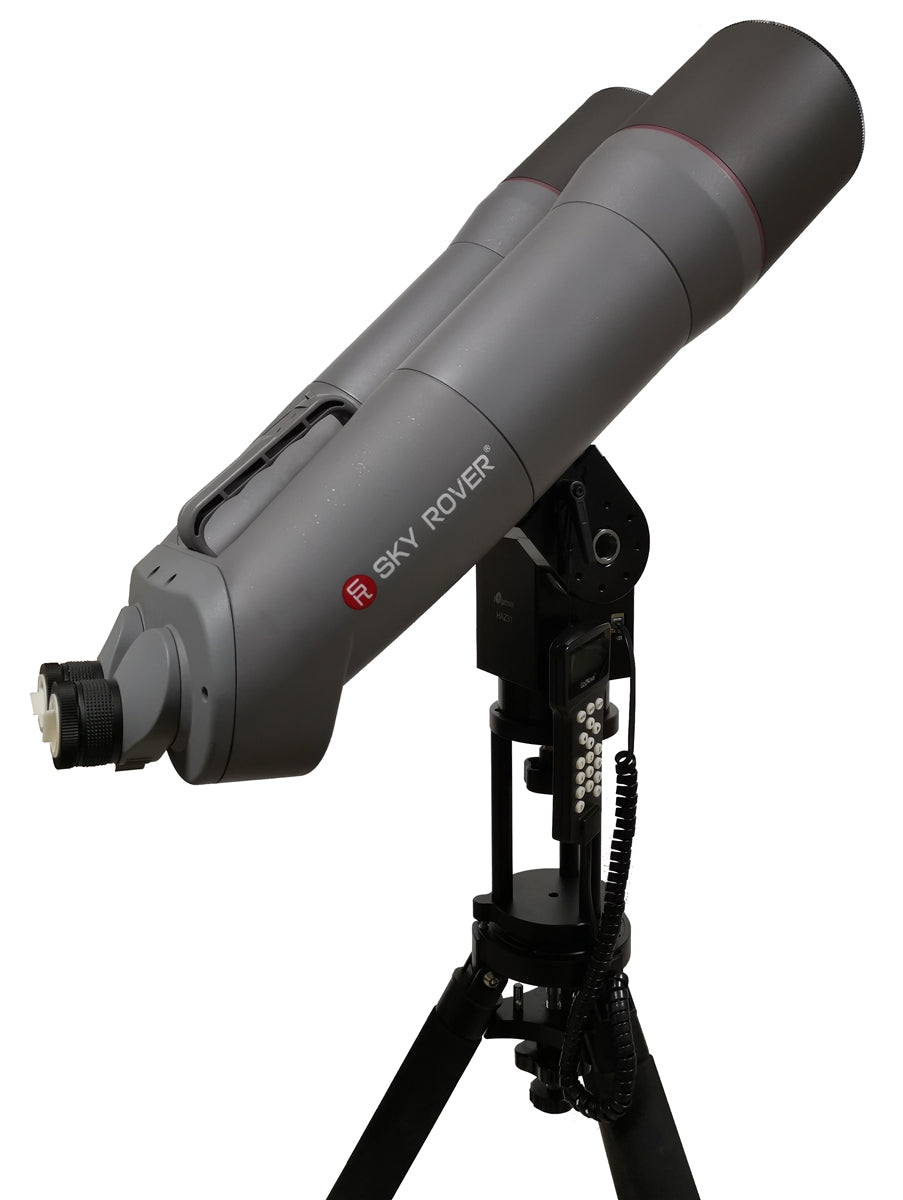

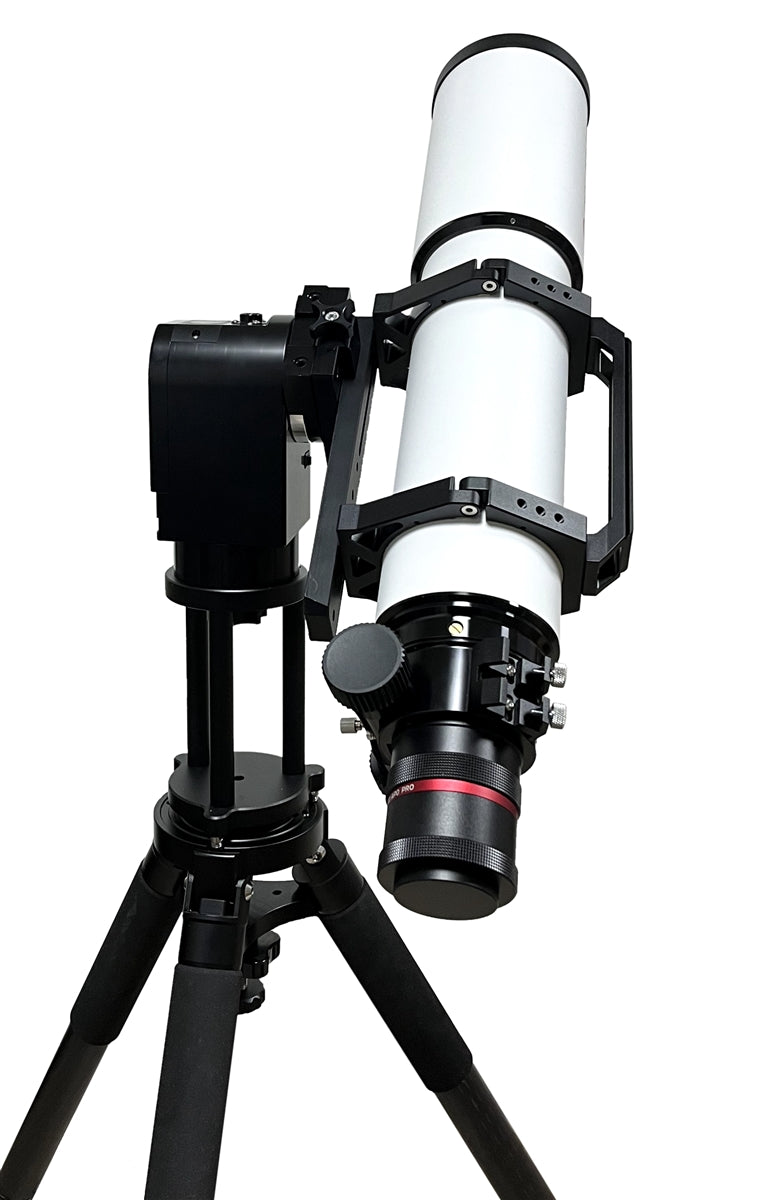

This light weight, compact, medium payload HAZ31 mount will deliver an astronomy experience like never before. With a mount head weighing in at 8.2 lbs, HAZ31 has a payload capability 31 lbs, without needing a cumbersome counterweight or shaft. HAZ mounts will support a large variety of instruments where flexibility is needed for outreach programs and satellite tracking. The multi position saddle (can be placed on top or to the side) uniquely setting up the HAZ31 to accommodate binoculars. Just turn the mount on, it will calibrate itself and GoTo the first target utilizing our time tested "Lever and Go" technology.

Utilizing state of the art strain wave gear technology for both RA and DEC movement, the HAZ31 deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake on both ALT and AZI allows the mount safely stop.

An HAZ31 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

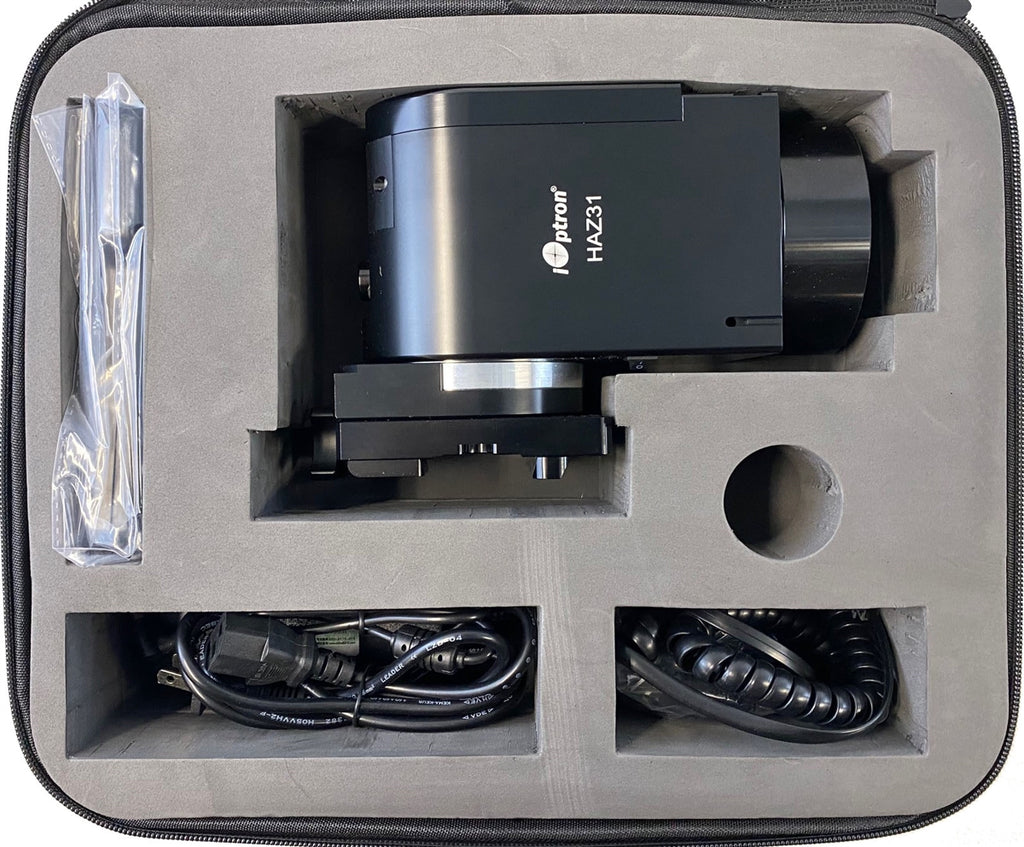

(Actual contents may differ from the image)

Mount	Strain Wave Altazimuth Mount
RA gear system	Strain Wave Gear
DEC gear system	Strain Wave Gear
RA/DEC reduction ratio	480:1
Payload*	31 lbs (14 kg)
Mount weight	8.2 lbs (3.7 kg) with dovetail saddle
Payload/Mount weight	3.78
Drive motor	Stepper motor
Structure Material	All metal, CNC machined
Exterior finish	Anodized black
Level indicator	Level bubble
Control system	GOTONOVA/Commander
Hand Controller	Go2Nova® 8409 with ~212,000 objects database
Tracking	Automatic
Maximum slew speed	8º/sec
Power consumption	0.6A(Tracking), 1A(GOTO)
Power	DC12V-5A (5.5/2.1mm DC plug)
AC adapter	100V ~ 240V (included, indoor use only)
Power off brake	Electronic friction brake
Wi-Fi	Built-in
Communication port	Yes (Wi-Fi and USB, via HC)
Firmware upgrade	Yes
Dovetail saddle	Vixen & Losmandy
Tripod	Optional
Operation temperature	-20ºC ~ 40ºC
Warranty	Two year limited

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

Guide scope or off-axis guider: a PHD2 guide graph reporting 0.41 arcsecond RMS beside elongated stars from the same night
