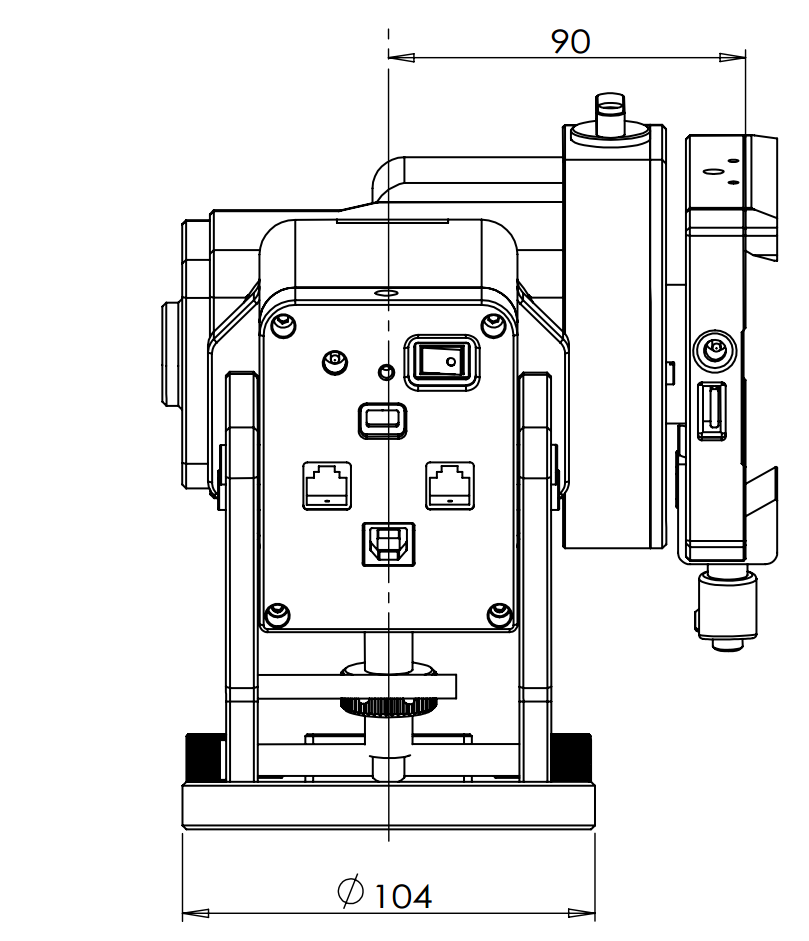

Name: HEM27 Hybrid SWG Mount w/ iPolar
Brand: iOptron
SKU: H272A
Price: 2857.99 CAD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Description
Specifications

Introducing the HEM27 and the HEM27EC, iOptron’s revolutionary hybrid harmonic drive mounts. These light weight, high payload tiny titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8.15lbs with a payload capability 29.74lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi decade experience creating precision mounts, the HEM27 brings this vision to reality.

Utilizing state of the art harmonic drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM27s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

The HEM27EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

Features

Advanced harmonic drive technology
Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs)
CNC machined and cast metal body
Unique friction brake to safely stop movement during a planned or unplanned power interruption
360 second gear period
Permanent periodic error correction (PPEC)
Go2Nova® hand controller with ~212,000 object database
iPolar electronic polar scope for easy and accurate polar alignment
Cable management system, no hanging exterior cables to moving parts
Dual saddle (vixen and losmandy-D styles)
Built in zero position search and locator
Power down position and location memory
Integrated ST-4 autoguiding port
Built-in Wi-Fi(via hand controller)
USB port for firmware upgrade and computer control
Soft carrying case
Two year warranty

Model	HEM27/HEM27A/HEM27EC
Mount type	Hybrit Harmonic Equatorial Mount
Gear	StrainWave 17 (RA)/worm gear (DEC)
RA Reduction ratio	120
Mount weight (w/o dovetail saddle)	3.4 kg (7.49 lbs)
Mount weight (w dovetail saddle)	3.7 kg (8.15 lbs)
Max payload (w/o CW) at 200 mm	13.5 kg/29.74 lbs
Payload/weight ratio	3.65
Period	360 sec
Structure Material	All metal, CNC machined
Exterior Finish	Anodized black
Drive motor	Stepper motor
Latitude Range	15° - 65°
AZ adjust range	±5°
Power	DC12V-5A
Power comsumption	0.5A(tracking), 1A(GoTo)
Control system	GotoNova/Commander
Hand controller	Go2Nova® 8409 with ~212,000 objects database
Communication	USB, WiFi
Autoguide port	ST4
Dovetail saddle	Vixen & Losmandy
Cable	No floating cables
Cable management	2X 12V (upto 4A), 1X USB
Power off brake	Electronic friction brake
Power-down memory	Yes
PEC	PPEC
Zero position search	Yes
Max goto speed	6°/Sec
Internal iPolar	Yes (A & EC)
High Precision encoder	Yes (EC)
Temperature range	-20°C ~ 50°C (hand controller -10°C ~ 50°C)
Warranty	2 years
