Introducing The SkyGuider Pro -- iOptron's next generation camera tracking device! Leading the camera tracker market for nearly four years, iOptron's SkyGuider Pro pushes closer to perfection.

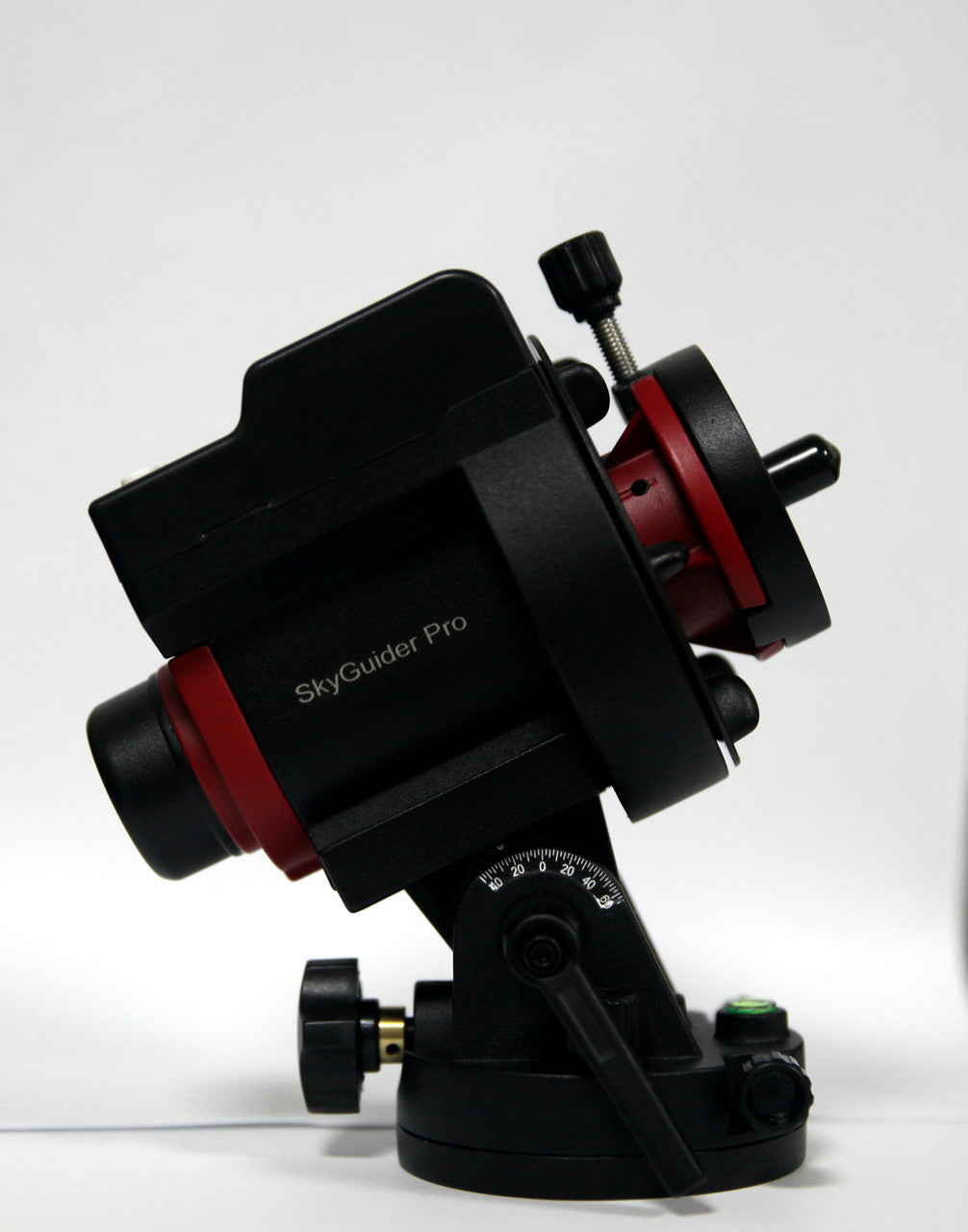

The redesigned SkyGuider Pro mount head is more compact, small enough to fit on your palm, better precision, silent tracking, built-in rechargeable power source, ST-4 guiding port and camera trigger port. The improved precision polar scope maintains a fine engraved reticule, now features adjustable illumination with different brightness levels. Using with our iOS app, quick and accurate polar alignment is just a joy. The DEC mounting bracket allows you to balance a heavy camera and/or lens better, or even mount a light telescope. The optional 8408 hand controller allows you to check the Pole Star position for the polar alignment, slew the mount, adjust the guiding rate, change the mount settings and control the camera trigger.
The SkyGuider Pro features four tracking rates, 1X or sidereal, 1/2X for sky and landscape combined, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres. We have also added a quick slew mode with both forward and reverse to help quickly reframing your image without disrupting the cameras position.
We have made big improvements on the SkyGuider Pro s removable alt-azimuth base, which features a precision bubble level, degree markings for the altitude and a built in post for the azimuth control. You can also mount the SkyGuider Pro head (without the base) directly to any standard photographic tripod with 1/4 or 3/8 threads.

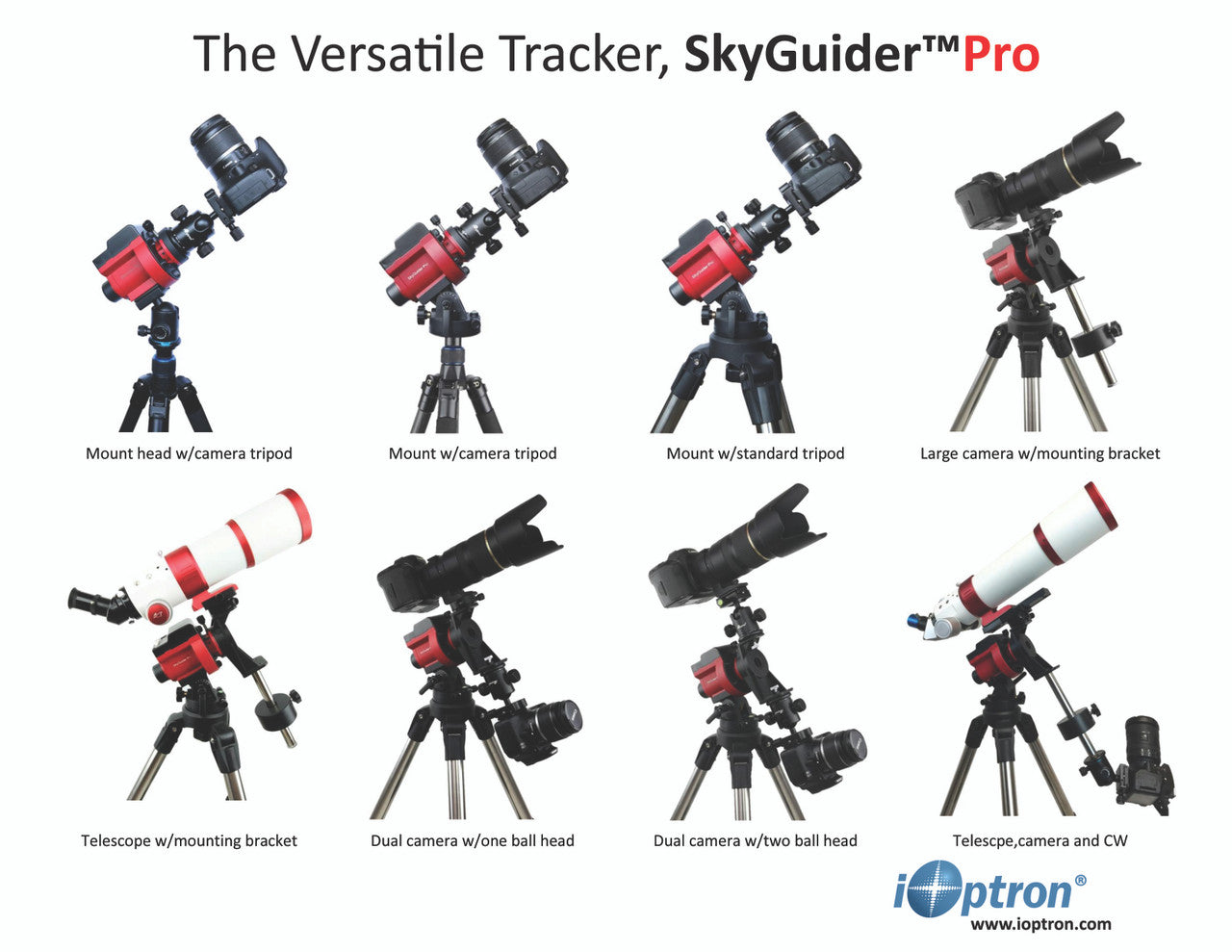

The DEC mounting bracket package, which includes DEC mounting bracket, counterweight shaft, counterweight and Vixen-type dovetail saddle, makes the SkyGuider Pro mount suitable for a heavier camera/lens system, even a lightweight telescope.
The SkyGuider Pro is certainly a must have tool for any photographer interested in astroscape or wide field astrophotography.
| Mount | Compact single axis tracking EQ |
| Payload (Max.) | 11 lbs (5kg), balanced |
| Mount weight | 2.2 lbs (1kg) with battery |
| Mount weight with base | 3.2 lbs (1.45kg) with battery |
| Body material | All metal |
| RA shaft | 35mm, steel |
| Worm wheel | 88mm, 144 teeth aluminum alloy |
| R.A. worm | 15.2mm, brass |
| Bearing | 4 pieces |
| Motor drive | DC servo motor with optical encoder |
| Tracking | R.A. automatic |
| Tracking speed | Solar, Lunar, Cel, 1/2 Cel, and N/S |
| Fast slew speed | 144X, forward and reverse |
| Guiding port | ST-4 compatible |
| Polar scope | AccuAlign TM dark field illuminated (~6º FOV) |
| Camera trigger | Yes |
| Hand controller | Yes (with optional 8408 HC) |
| Power Requirement | Internal rechargeable battery |
| Battery type | Li-Poly, 3.7V, 2000mAh |
| Duration of operation | Up to 20 hours at 20ºC |
| Power charge port | Micro USB (5V), 80% charge in 5 hours |
| Camera mounting block | 62mm, 3/8" post thread |
| Body base connection | Vixen dovetail, 3/8 socket (1/4 converter) |
| Alt-Azi adjustable base | Vixen style saddle, 3/8 socket |
| Alt-Azi adjustable base diameter | 80 mm |
| Latitude adjustment range | -30º ~ 65º (with alt-azi base) |
| Azimuth adjustment range | ±5º |
| Level indicator | Level bubble |
| Body dimension | 133x115x95 mm (w/o alt-azi base) |
| Counterweight shaft | 20x200 mm w/ 3/8 -16 threads |
| Counterweight | 1.35kg |
| Firmware upgrade | Yes (via USB port) |
| Operation Temperature | -10ºC ~40ºC |
| Warranty | One year limited (90 day on battery) |
