Product Overview

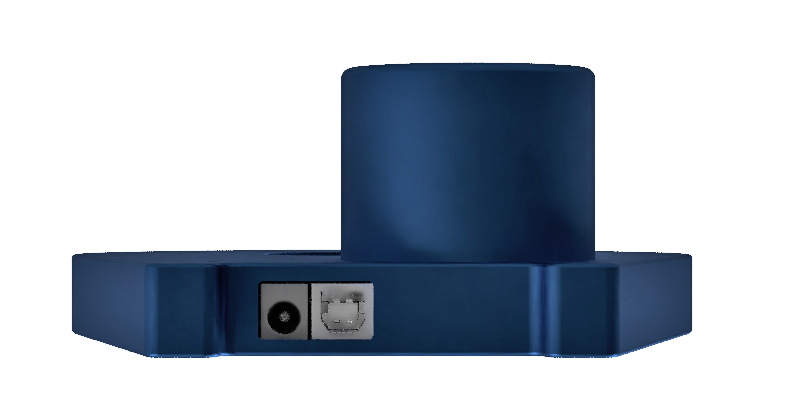

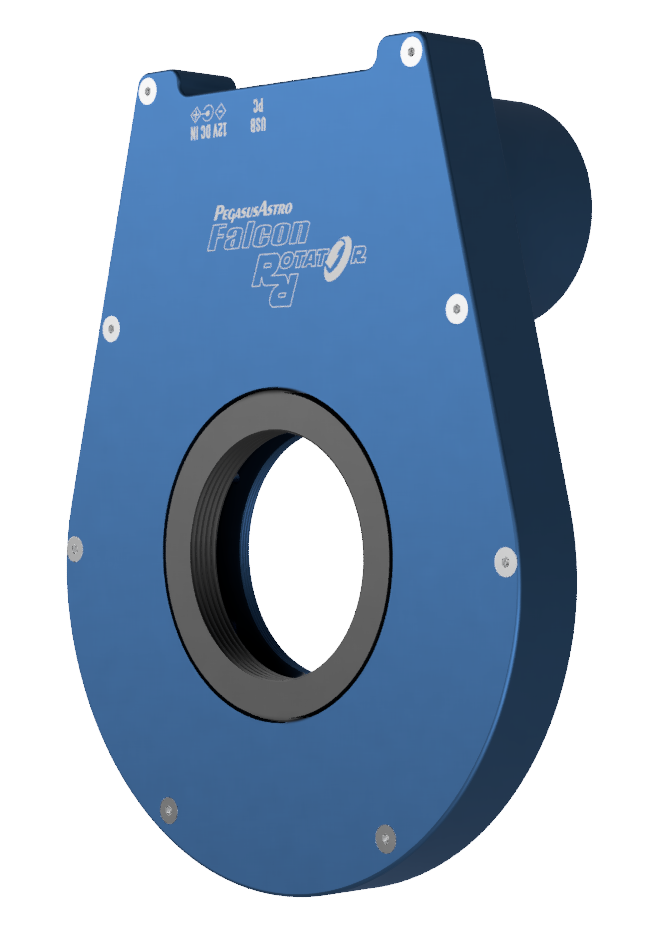

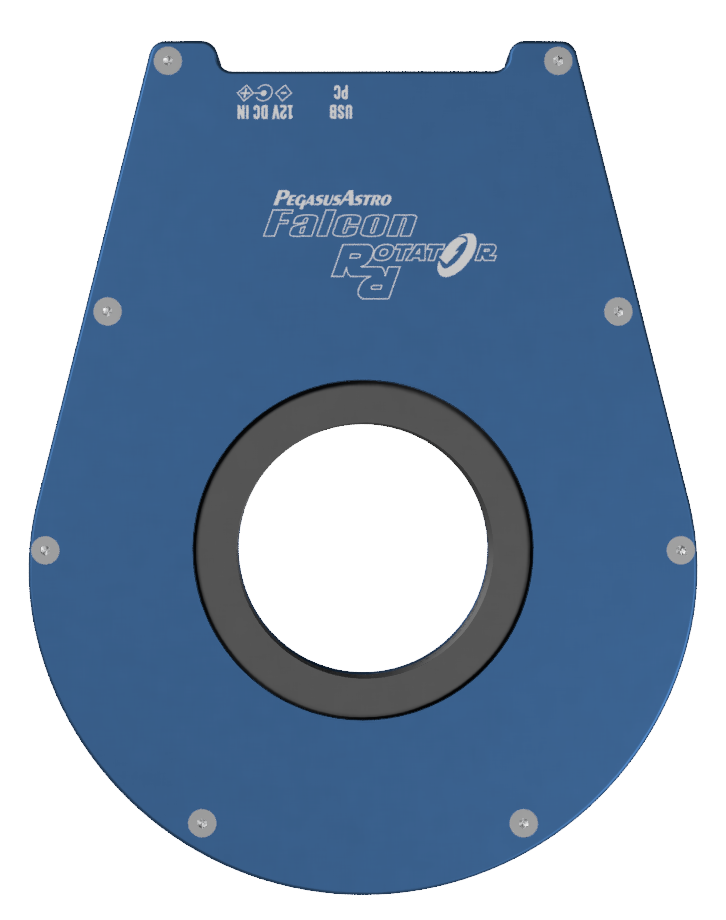

Falcon Rotator is a lightweight, low-profile camera field rotator. Do not be fooled by its thin size! It can lift and handle heavy image trains – dead accurate!
Very easy to operate via ASCOM drivers or Unity Platform software, will make your life easier to automatically orient, with precision, your camera field.
Precise rotation
A powerful geared / low backlash, quiet stepper motor ensures that the rotator will precisely lock to the designated degrees. Mechanics inside the focuser guarantee zero flex at any point during a full circle rotation.
Low profile
Thickness of the rotator is 18mm / 0.7”
When you use the M54 to M48 adapter the backfocus is +1mm (18+1 = 19mm)
Weight is 700grams. Both openings of the rotator are M54 threaded (pitch 0.75mm)
Rated load
Falcon Rotator has been tested at 6Kg / 13.2lbs of imaging setup.
The sophisticated mechanical design that uses 6 stainless steel bearings can easily handle high payloads with zero flexure.
Cable Wrap Prevention
Rotator does not allow a clockwise turn above 220 degrees. It will turn anti-clockwise when it has to be moved above 220 degrees.
A nice cable wrap/snag prevention feature out of the box.
Adapters for both sides (included)
We provide (in the box) two different adapters for both sides:
- Telescope Side: M54 male to 2” Nosepiece (1.5mm thickness)
- Camera Side: M54 Male to M48 Male Adapter (2.0mm thickness)
For optional adapters click here

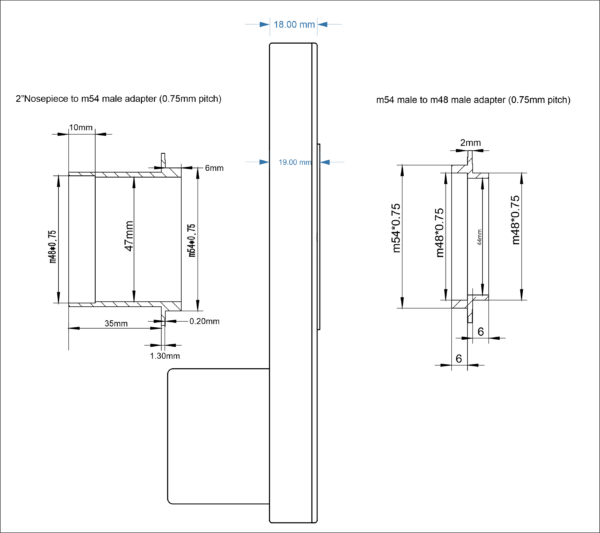

The M54 adapter black ring on the camera side of the Falcon Rotator sticks out by almost 1mm (so actual back-focus is 18+1 =19mm)
De-Rotation support for Alt/Az mounts
Rotator has the mechanical precision to achieve field de-rotation. Supplied software calculates Rate of Rotation (RoR) based on the site latitude, target altitude and azimuth position.
Examples of images taken with Falcon Rotator & Derotation on a Dobsonian Telescope
Specifications
Specifications:
| Physical Size | 180mm x 140mm x 56mm |
| Material | Blue Anodised Aluminium |
| Clear Aperture | 54mm / 2.13” |
| Steps per degree | 86.6 steps per degree (31.192 steps per full revolution) (full step drive – can be increased with microstepping) |
| Payload | 6Kg / 13.2lbs |
| Telescope Adapter | M54 male to 2” Nosepiece (included) |
| Camera Adapter | M54 Male to M48 Male Adapter |
| Back Focus | 18mm / 0.7” |
| Weight | 0.7Kg / 1.54 lbs) |
| Connectivity | USB 2.0 |
| Operating Power | 12V / 1Amp |
