ECCO-NTC adapter for Dew Heater Rings

ECCO-NTC is the adapter that allows you to use a Celestron Dew Heater Ring with the ECCO2 environmental computerized controller. Dew Heater Rings differ from standard dew heater straps, as they utilize an NTC thermistor to measure temperature of SC or aplanatic SC telescopes corrector plate without the need for an external temperature probe.

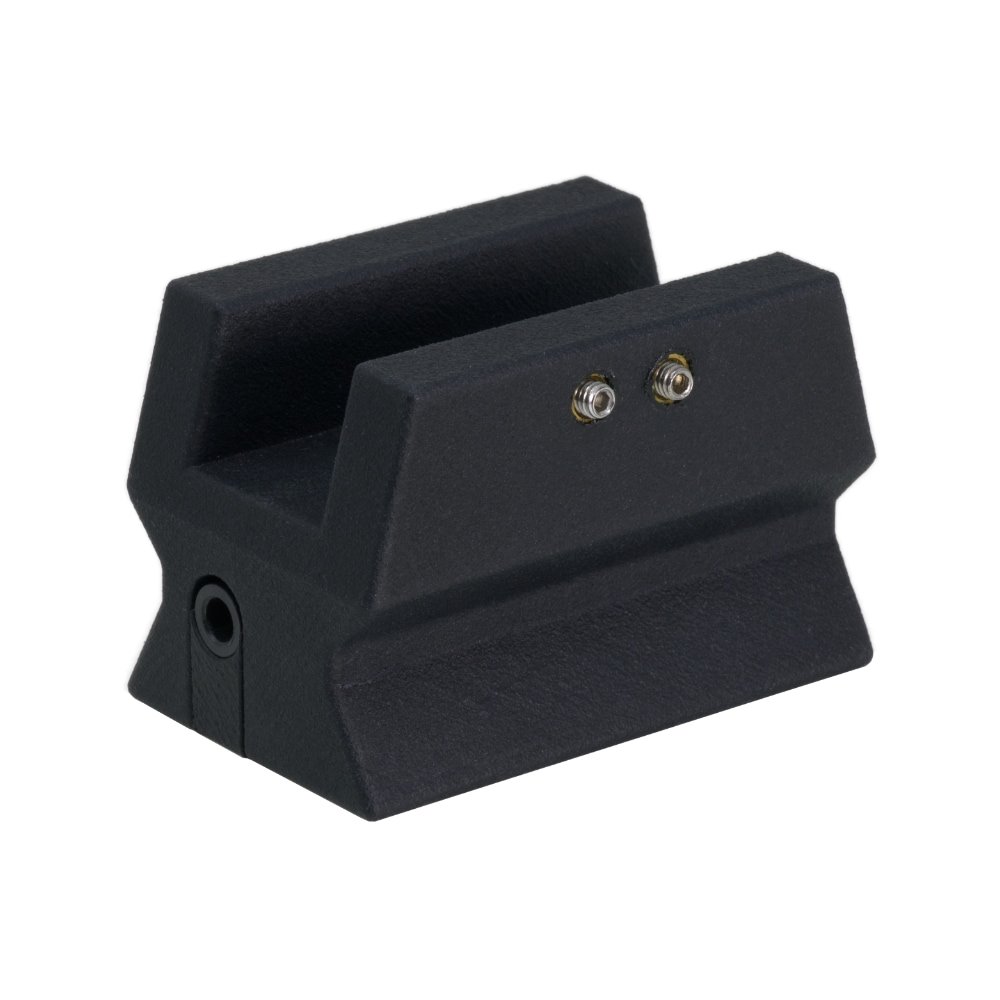

ECCO-NTC is small and lightweight, allowing you to connect it to any standard Vixen-style finder shoe and it comes with 2 grub screws to attach the main body of ECCO2. ECCO-NTC does not require external power since it’s powered directly by ECCO2.

This adapter is specifically designed to work with ECCO2 and it’s not compatible with the previous/first generation ECCO controller.

ECCO-NTC adapter for Dew Heater Rings - main features:

• It allows you to use Celestron Dew Heater Ring with ECCO2 environmental computerized controller
• Designed to be connected to a standard Vixen-style finder shoe
• Compact and lightweight, just 40gr (1.4oz)
• No need for external power
• It includes cables to connect to ECCO2 and to Dew Heater Ring.

ECCO-NTC: Plug&Play with ECCO2 and Dew Heater Rings

ECCO-NTC doesn’t require special software and it doesn’t require external power: just connect ECCO2 and attach the cables (see diagram) in order to let you use Dew Heater Ring with your ECCO2 and EAGLE:

• Insert ECCO2 body into ECCO-NTC and lock it with the 2 grub screws
• Connect the "12VDC 5.5/2.1 mm to RCA power cable" (that is included with the Dew Heater Ring) to one of the EAGLE's dew heater ports.
• Connect "3.5mm to 3.5mm power jack cable" to ECCO's port number corresponding to the EAGLE's dew heater port you connected the "12VDC 5.5/2.1 mm to RCA power cable". For example: if you connect dew ring power cable to EAGLE's port number 6, you have to connect this "3.5mm to 3.5mm power jack cable" to port 6 of the ECCO2.
• Connect the other side of this "3.5mm to 3.5mm power jack cable" to 3.5mm port on one side of the ECCO-NTC.
• Connect the "2.5mm to 2.5mm cable" to port 2.5mm port on one side of the ECCO-NTC and to the thermistor jack of dew ring.
• Connect the "USB-C port to USB-A port cable" (that is included with ECCO2) to ECCO2 and to EAGLE (compatible with EAGLE models with dew heater ports).

ECCO-NTC adapter for Dew Heater Rings - scope of delivery:

- ECCO-NTC

- 3.5mm to 3.5mm power jack cable (length 14cm - 5.5in)

- 2.5mm to 2.5mm cable (length 120cm - 47.2in)

- Quick guide

More about this product:

How to use ECCO-NTC adapter to automate control of Dew Heater Rings with EAGLE computer and ECCO environmental controllerSC, EdgeHD and RASA telescopes come with a closed tube and a front corrector plate that provide many advantages also for astrophotography. But this needs to be protected against dew in particular environmental conditions. By connecting Dew Heater Ring (also with Aluminum Dew Shield) to the EAGLE...
