Skywatcher HEQ5 Pro Mount + Starfield Gear90 EDT Refractor Combo

Astrophotography Excellence, Unmatched Stability

Combine the proven stability and precise tracking of the Skywatcher HEQ5 Pro Mount with the superior imaging capabilities of the Starfield Optics Gear90 EDT Refractor (90mm aperture, 540mm focal length, f/6 optics). Featuring an advanced ED triplet lens design, the Gear90 EDT produces exceptional contrast, razor-sharp images, and brilliant, color-correct stars—ideal for high-quality astrophotography.

Versatile Field of View

APS-C DSLR (~23.5mm × 15.6mm): Approximately 2.5° × 1.7°
ASI533MC-Pro (11.3mm × 11.3mm): Approximately 1.1° × 1.1°

Ideal Imaging Targets Throughout the Year

Spring: M81 & M82 Galaxy Pair
Summer: Eagle (M16) and Omega (M17) nebulae
Fall: Triangulum Galaxy (M33)
Winter: Horsehead Nebula (Barnard 33) and Flame Nebula (NGC 2024)

Technical Highlights

Mount: Skywatcher HEQ5 Pro for ultra-stable tracking, ideal for longer astrophotography exposures.
Telescope: Starfield Gear90 EDT f/6 APO refractor, featuring Extra-low Dispersion (ED) triplet optics for superior sharpness, minimal chromatic aberration, and exceptional color fidelity.
Precision Optics: Triplet lens system ensures accurate color reproduction and pinpoint stars across the entire field of view.

Achieve professional results with maximum portability, ease, and precision.

What is included in the package:

Skywatcher HEQ5 mount
Starfield Gear90 Triplet F/6 APO
Starfield 0.8x Adjustable reducer
Power Supply
Red Flashlight
Starfield 32mm Guide package with ASI120MM-Mini

*Pier extension, DSLR Camera mount, Hand Controller sold separately

The Skywatcher AL-EQ55 Mount

The EQ-AL55i Pro is the perfect entry to intermediate level equatorial platform for observers and imagers looking to build a serious rig without breaking the bank.

Redesigned from the popular EQM-35 the EQ-AL55i features fully encased motor housings and two positions for the counterweight bar and optional pier extension making this mount the perfect choice for observers and imagers in lower latitudes.

Featuring Wi-Fi, Bluetooth SynScan, and ASCOM telescope control, 22-pound payload capacity, a guidescope and SNAP port, the EQ-AL55i is a perfect choice for a mid-size imaging mount.

This versatile mount is equipped with a two-position adjustable counterweight bar, allowing it to be used at all latitudes from 0° to 90° and thus avoiding the problems that arise with most other mounts at extreme polar altitudes. It is therefore an ideal travelling mount!

The EQ-AL55i is fully controlled with a smartphone via the built-in WLAN module and the free SynScan Pro app software. This app is available for iOS and Android.The EQ-AL55i Pro mount is equipped with an illuminated polar finder scope for precise alignment to the celestial pole.

It offers connections for USB-C, autoguider and an optionally available SynScan hand control box. It also has a socket for triggering a DSLR camera.

The EQ-AL55i Pro is a very portable mount for mobile astrophotographers, but also for visual observers.

Mount type: Equatorial with Go-To
Load capacity: 10kg
Slew speed: Up to 4° per second
Power input: 12V DC
Autoguider port: ST4
Protocols: SynScan, ASCOM via Wi-Fi or USB
Weight: 14.8kg

The Starfield Gear90 Triplet APO

The Starfield Optics EDT90 f/6 Triplet APO with FPL53 will take your wide field imaging game to new levels. Using multi-coated FPL 53 (ED) glass, you'll experience sharp stars and amazing contrast.

The Starfield Géar Series comes with a retractable dew shield, an optical test report, heavy duty rings, a Vixen style dovetail, a handle designed to mount optional accessories, and a hard case with die-cut foam.

Weighing in at just 9 pounds, the Géar 90mm can be easily used on a mount with a payload capacity of 20 pounds, making your whole set up reasonably portable.

An 0.8x adjustable reducer is available separately for astro-imaging with APS-C sensors.

HIGH QUALITY BUILD AND FEATURES

2.5" two speed, rotating rack and pinion focuser with ball bearings
Optional Motor focusers can easily be installed accepting 63mm accessories and a pressure fit lock
Support for heavy camera loads and accessories
Supports 2" and 1.25" eyepiece accessories
Camera Angle Adjuster (CAA)
HD CNC tube rings and Vixen style dovetail bar
Handle for transportation and mounting accessories
Retractable dew shield retractable for transport
Optional 0.8x adjustable reducer and 1.0x Flattener available, each are threaded for a secure connection to the focuser with no flex.

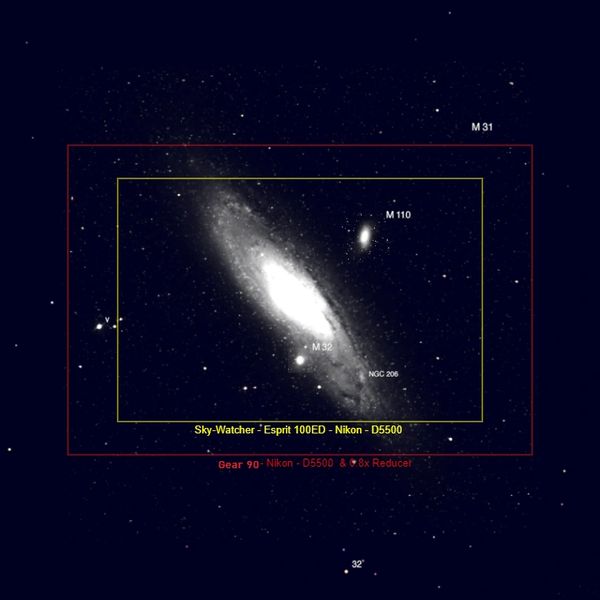

The GÉAR 90 with 0.8x reducer has a larger field of view compared to the Esprit100. The GÉAR 90 is shown in RED

Enhance Your Setup with the ZWO ASIAIR Pro

To elevate this astrophotography kit even further, consider adding the ZWO ASIAIR Pro. This innovative device streamlines your imaging sessions by offering effortless camera control, precise auto-guiding, plate-solving, and live stacking—all via an intuitive smartphone or tablet interface. The ASIAIR Pro complements this portable setup perfectly, making astrophotography more enjoyable and efficient in the field.
